2013 DOOSAN PUMA TT-1800SY

Fanuc 31iA, 2.6" Bar, 8" Chk, 27" Length, Twin Spindle & Twin Turret, 5000 RPM, 30HP, Y-Axis, Barfeed, Parts Catcher
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8" (2)
  • Max Diameter Bar Capacity 2.63"
  • Max Machining Length 27.38"
  • Spindle Motor (Left & Right) 30 / 25 HP
  • Spindle Speed 50 - 5000 RPM
  • Spindle Nose (Left & Right) A2-6
  • Spindle Bore (Left & Right) 2.99"
  • Tools (Upper / Lower Turret) 12 / 12 (All Live)
  • Milling Motor 7.5 HP
  • Milling Speed 5000 RPM
  • Rapid Traverse Rates (X / Z) 787 / 1574 IPM
  • X-Axis Travel (Upper / Lower Turret) 6.5" / 7.48"
  • Z-Axis Travel (Upper / Lower Turret) 27.5" / 28.34"
  • C-Axis Index (Left & Right) .001 Degrees
  • Machine Dimensions (L x W x H) 154" x 81" x 82"
  • Machine Weight 17,000 lbs.
  • Distance Between Spindles 38.5"
  • Max Turning Diameter 9.05"
  • Right Spindle Travel 30.31"
  • Spindle Torque (Left & Right) 152 ft. lbs.
  • Y Axis Travel 3.93"

Product Features

  • FANUC 31i CNC Control
  • 10.4" Color TFT

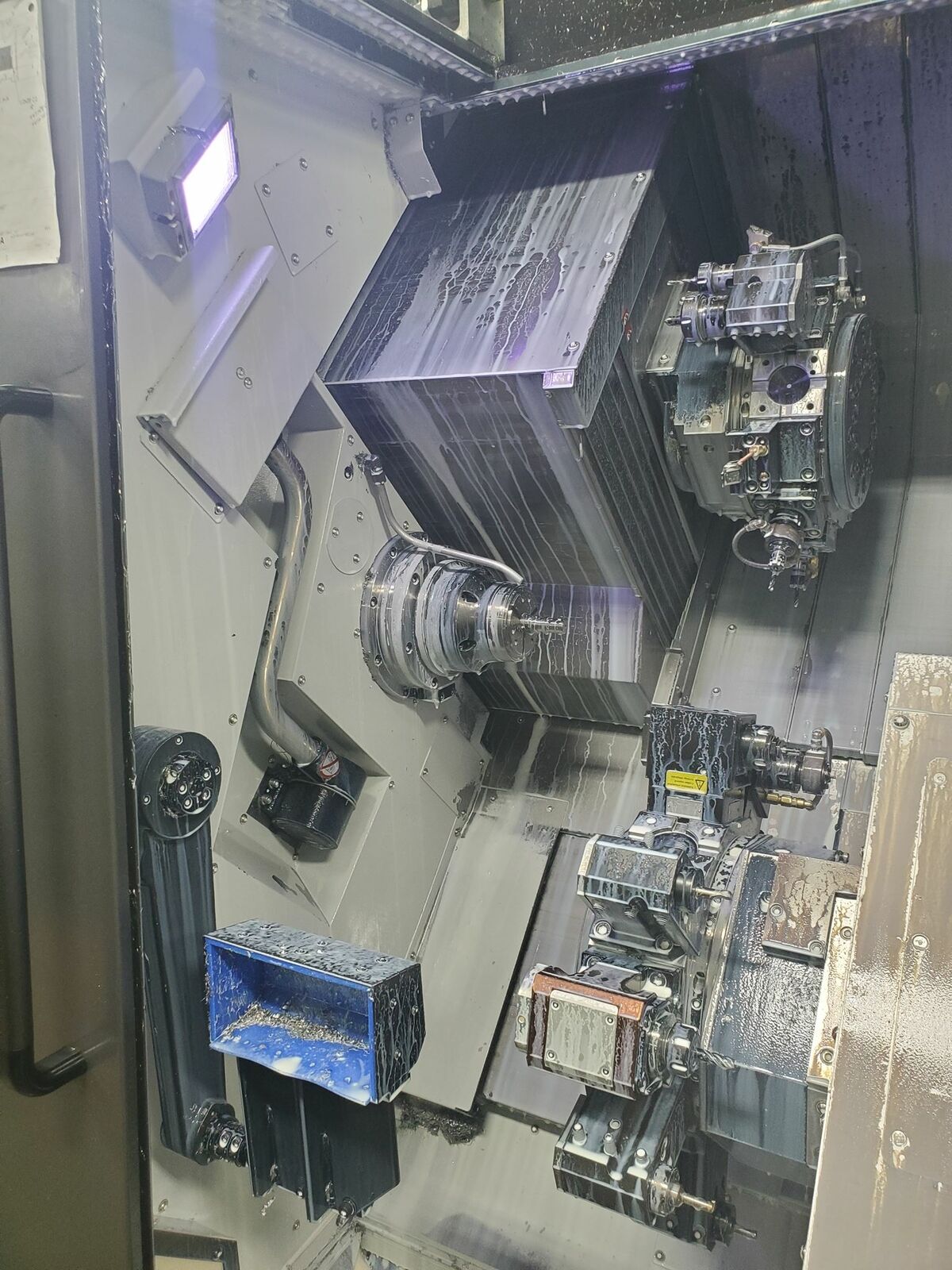

  • Twin Turrets & Twin Spindles
  • Y-Axis Live Tooling Capability (Upper Turret)
  • C-Axis Live Tooling Capability (Both Spindles)
  • 24 Position Upper and Lower Turrets
  • Direct Drive Left and Right Spindle
  • 8" Samchully 3-jaw Chucks on Left and Right Spindles
  • Through Right Spindle Coolant
  • Upper Parts Catcher with Exit Conveyor
  • Lower Parts Catcher / Bar End Unloader
  • Functional Tool Load Monitoring
  • Tool Life Tracking
  • EZ Guide I
  • Factory Static Tool Holder Package
  • (4) OD Live Holders
  • (2) Face Live Holders

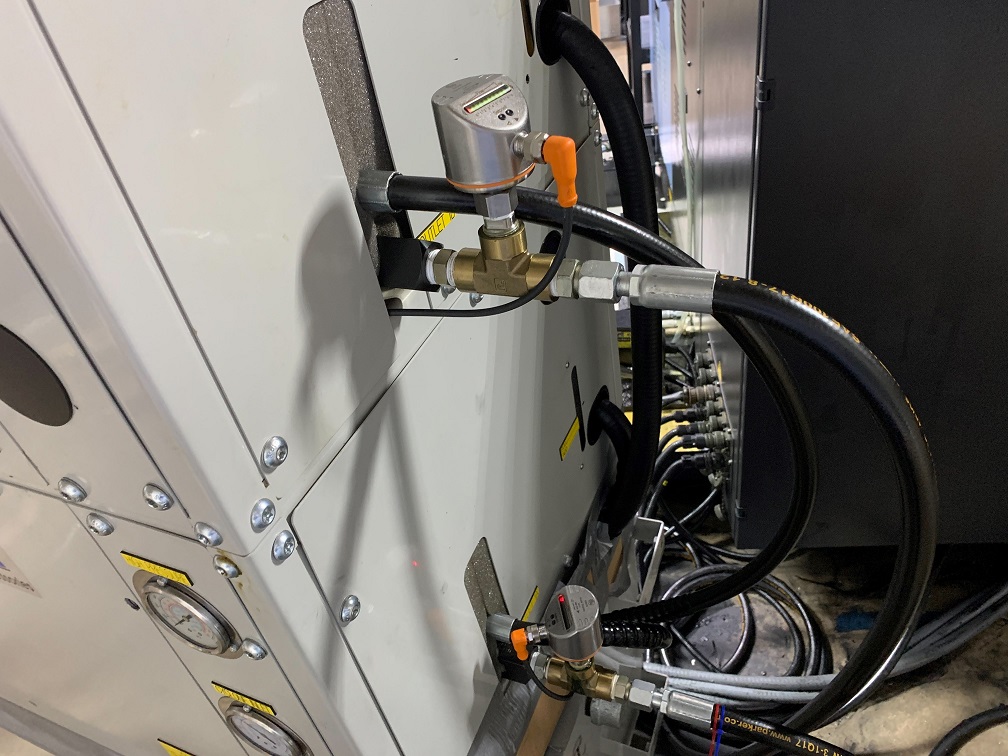

  • ChipBlaster J2-60 Dual Channel 1000 PSI Coolant to Each Turret (New 2017)
  • Chip Conveyor (Side Exit)
  • Right Spindle Pneumatic Ejector
  • Auto Door M-code and Control Button Compatible.
  • Left and Right Spindle Air Blast (M-code Fired)
  • Edge Rebel 80 Short Magazine Barfeed
  • (6) Spindle Liners
  • 6500 Cutting Hours
