Special Item

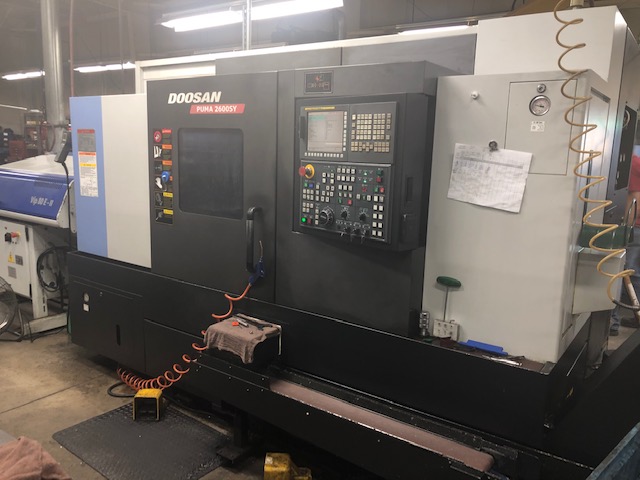

2013 DOOSAN PUMA 2600SY
Fanuc 31iMA, 3" Bar, 10" Chuck, 4000 RPM, 30 HP, 12 Tools, Y-Axis, Sub Spindle, Barfeed, Parts Catcher, Collet & Hydraulic Chucks, Chip Conveyor
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 10"
-
Max Diameter Bar Capacity 3"
-
Max Swing Over Bed 30.7"
-
Max Machining Length 29.9"
-
Spindle Motor 30 HP
-
Spindle Speed 4000 RPM
-
Spindle Nose A2-8
-
Spindle Bore 3.38"
-

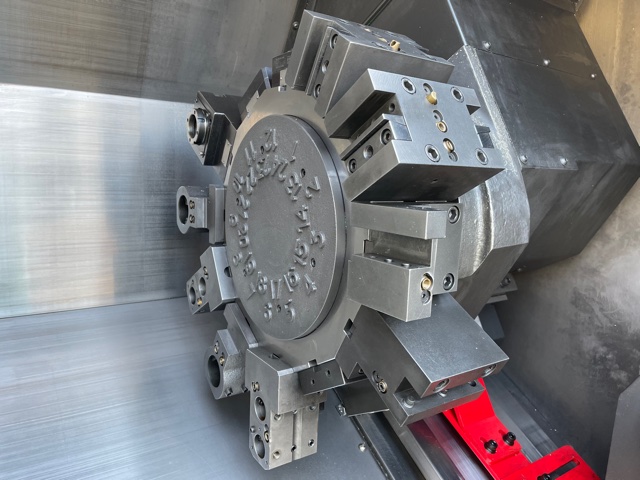

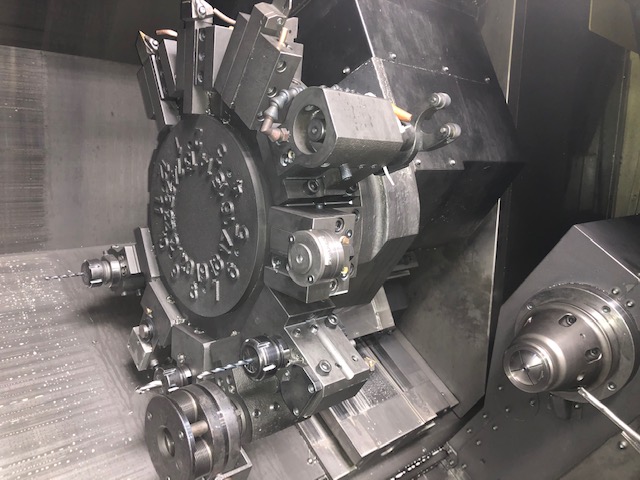

Tools 12 (All Live)
-
Milling Motor 7.5 HP
-
Milling Speed 5000 RPM
-
Sub Spindle Motor 20 HP
-
Sub Spindle Speed 6000 RPM
-
Rapid Traverse Rates (X & Z) 1181 IPM
-
X-Axis Travel 10.23"
-
Z-Axis Travel 32.67"
-
Y-Axis Travel +/- 4.13"
-
C-Axis Index (Main & Sub Spindle) .001 Degree
-
Machine Dimensions (L x W x H) 153" x 74" x 85"
-
Machine Weight 14,000 lbs.
-
Max Turning Diameter 14.8"
Product Features

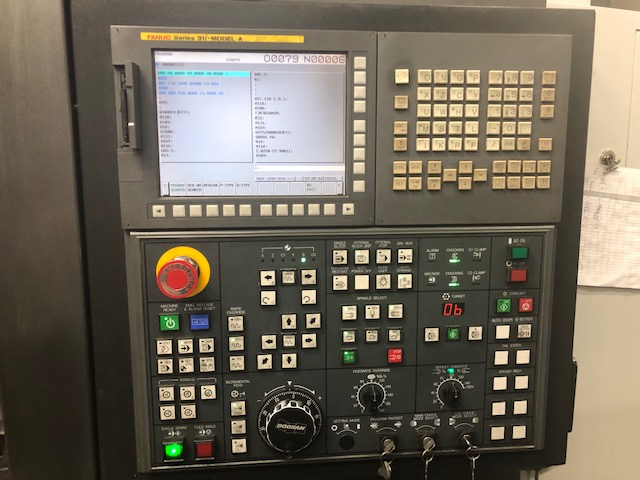

- FANUC 31iMA CNC CONTROL
- 10.4" Color LCD
- USB Port
- PC / MCIA Interface
- C & Y-Axis Milling Capability

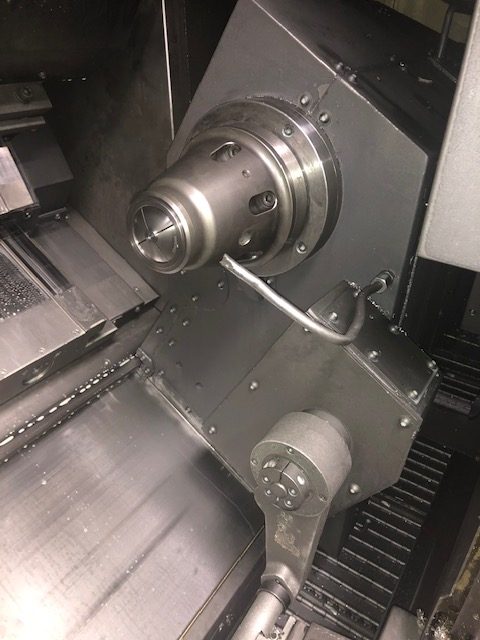

- Programmable Sub Spindle
- 10" & 8" Hydraulic Chuck
- S30 Collet Chuck for Main Spindle
- Auto Parts Catcher
- Parts Exit Conveyor
- Automatic Tool Presetter
- Hennig Chip Conveyor (Side Exit)

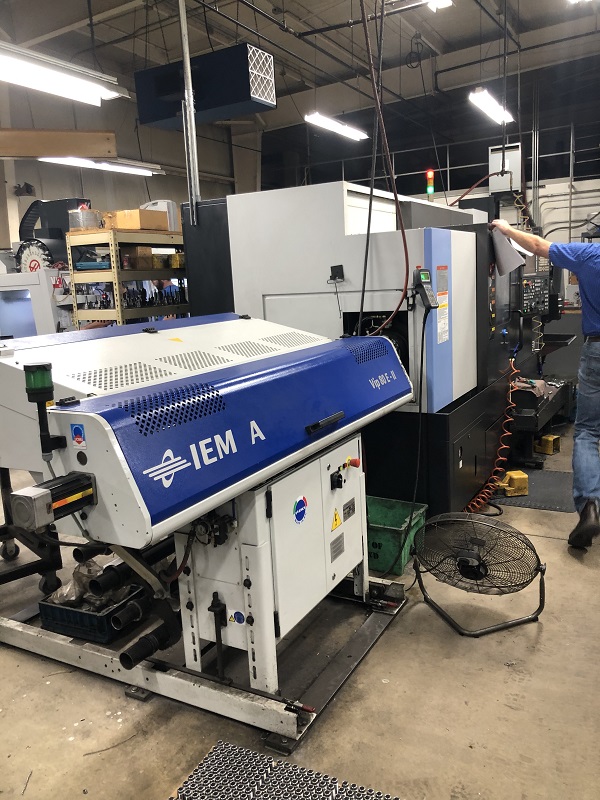

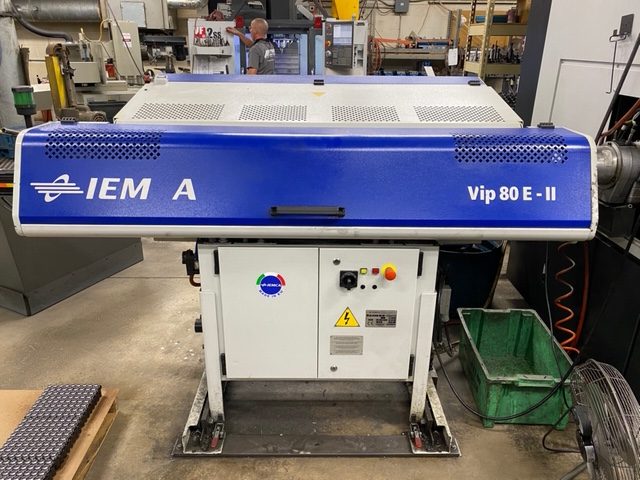

- IEMCA VIP 80E-II Short Magazine Barfeed
- Three Color Tower Light
- Approximately (5) Spindle Liners
- (2) OD Live Holders
- (1) Face Live Holder
- (1) Turning Holder
- (2) Tandem Turning Holders
- (1) Facing Holder
- (1) Cutoff Holder
- (2) Boring Bar Holders (2" ID)
- (2) Double Boring Bar Holders (1.25" ID)
- Manufacture Date November 2013

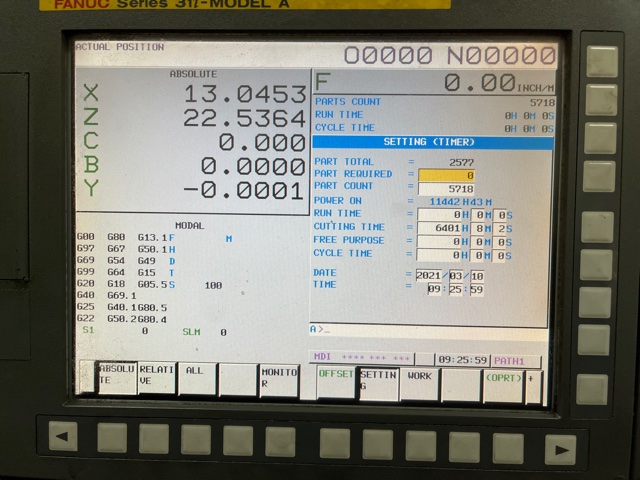

- 12,413 Cutting Hours
