< Back to Lathes
Special Item

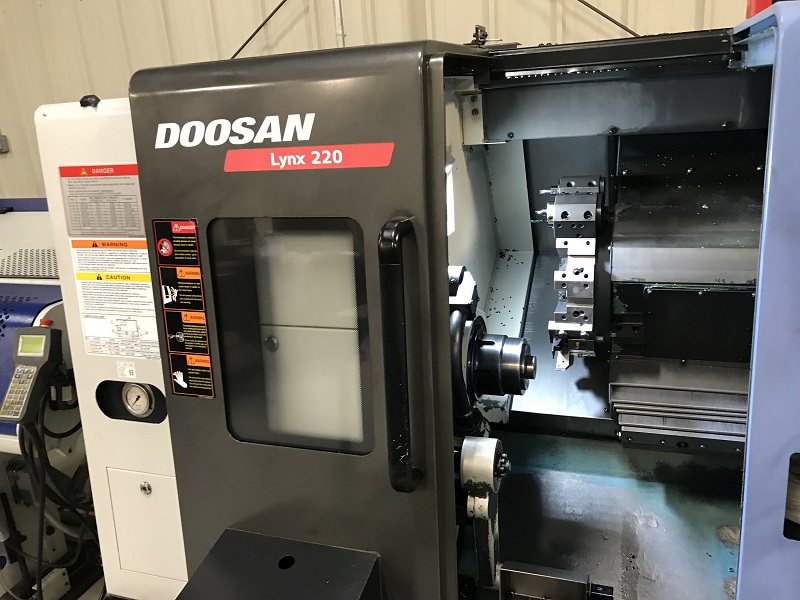

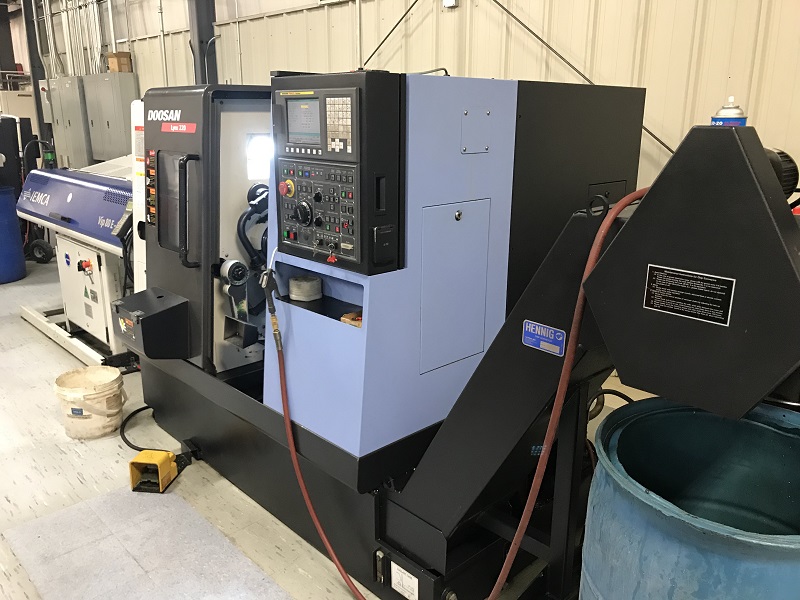

2013 DOOSAN / DAEWOO LYNX 220C

Fanuc, 2.63" Bar, 8" Chuck, 20 HP, 4000 RPM, 12 Tools, APC, Barfeed, Tool Presetter, Chip, Rigid Tap, Chucker
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed / Carriage 20.1" / 11.4"
  • Spindle Motor 20 HP
  • Spindle Speed 40 - 4000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.99"
  • Tools 12
  • Rapid Traverse Rates (X / Z) 1181 / 1417 IPM
  • X-Axis Travel 6.9"
  • Z-Axis Travel 21.7"
  • Turret Index (Single Step) 0.15 Seconds
  • Machine Dimensions (L x W x H) 101" x 63" x 65"
  • Machine Weight 7716 lbs.
  • Max Turning Diameter (Max / Std) 12.6" / 8.3"

Product Features

  • Fanuc i Series CNC Control
  • 10.4" Color LCD
  • PC / MCIA Interface

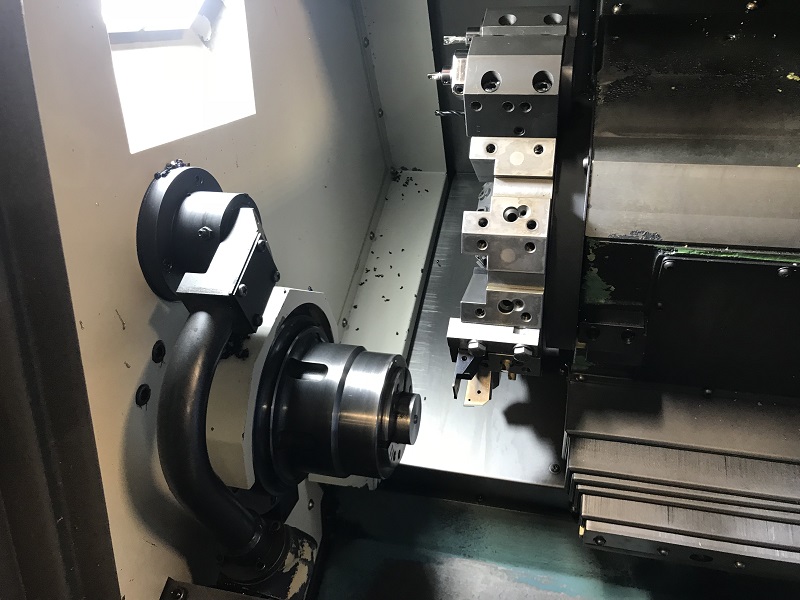

  • 8" Hydraulic Chuck
  • Royal Quick Grip Collet Chuck
  • Auto Parts Catcher

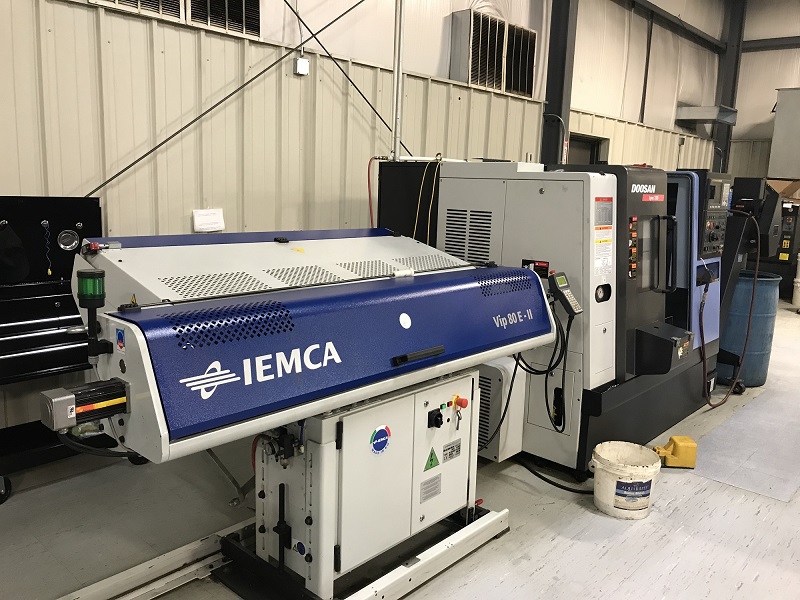

  • Iemca VIP 80E-II Short Magazine Barfeed
  • Hennig Chip Conveyor (Side Exit)
  • Tool Presetter
  • Rigid Tapping
  • Chucker (No Tailstock)
  • Mfg Date August 2013

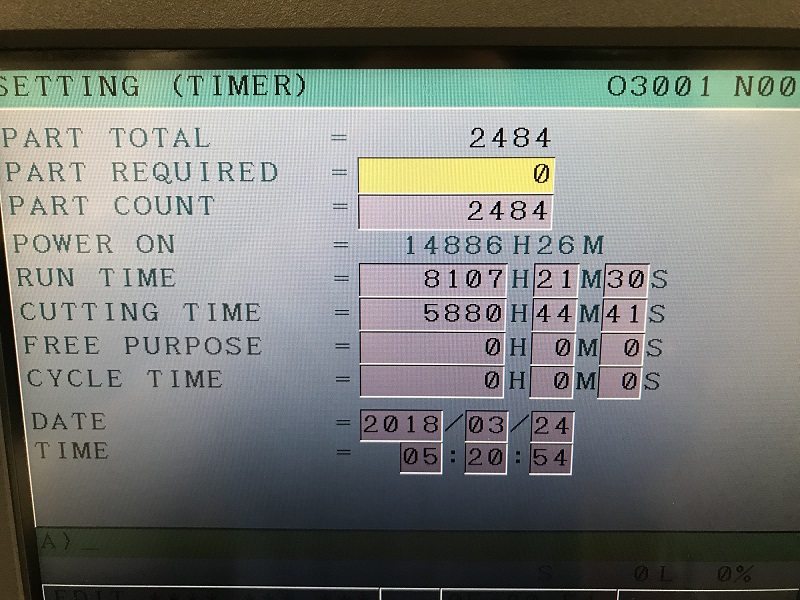

  • 14,886 Power on Time
  • 8107 Run Time
  • 5880 Cut Time
