Special Item

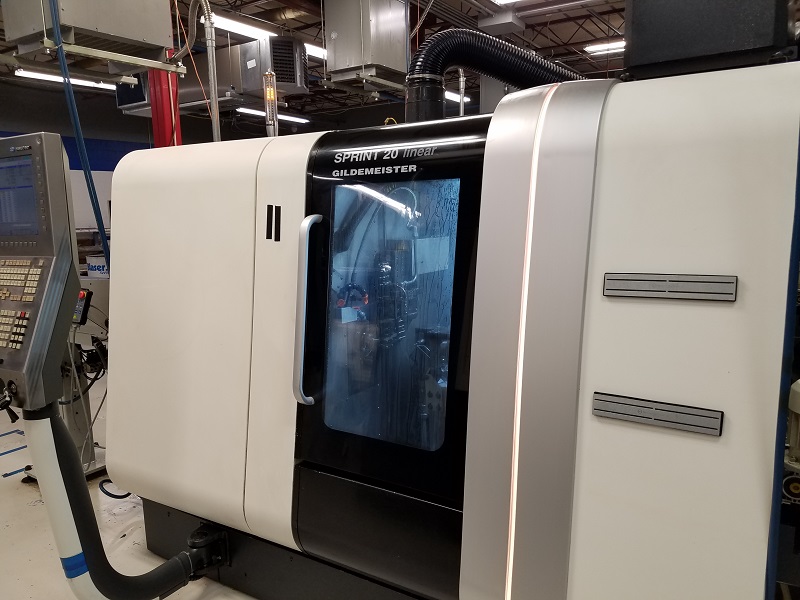

2013 DMG MORI SPRINT 20-8 LINEAR

Fanuc 310is, 1" Bar, 5 HP, 10000 RPM, 5 Live Tools, Sub Spindle, (2) Y-Axis, Barfeed, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 1"
  • Sub Spindle Motor 5 HP
  • Sub Spindle Speed 10000 RPM
  • Rapid Traverse Rates (X/Y/Z) 1575 IPM
  • C-Axis Index (Main & Sub) .001 Degrees
  • Machine Dimensions (L x W x H) 151.5" x 55.5" x 71.8"
  • Machine Weight 9920 lbs.
  • Backworking Tools 4
  • Front End - Working Tools 6
  • Live Tools 5
  • Main Spindle Motor 5 HP AC
  • Main Spindle Speed 10,000 RPM
  • Rotary Tool Motor 1.7 HP
  • Rotary Tool Speed 6000 RPM
  • SLIDE 1 X1 Travel 2"
  • SLIDE 1 Y1 Travel 13.8"
  • SLIDE 2 X2 Travel 9.5"
  • Turning Tools Main / Sub 6 / 4

Product Features

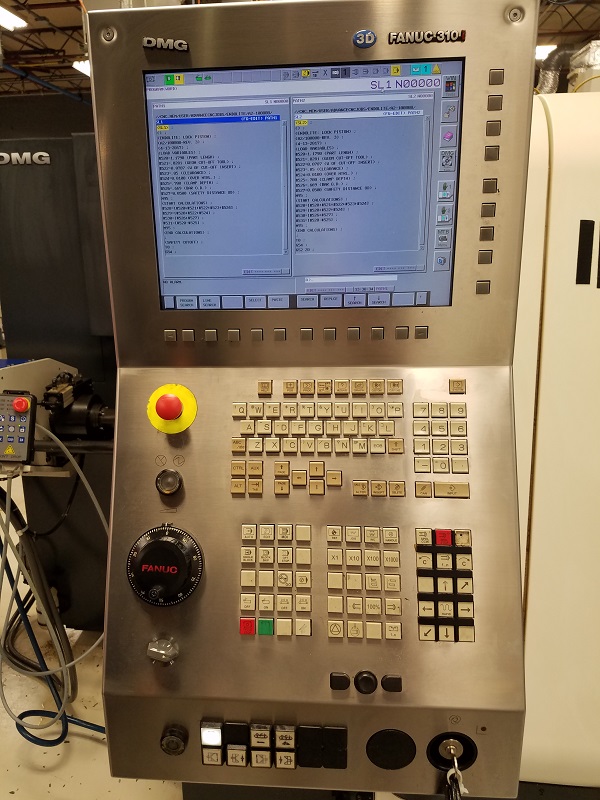

  • Fanuc 310is CNC Control
  • 10.4" Color TFT
  • C-Axis Live Tooling on Main & Counter Spindles

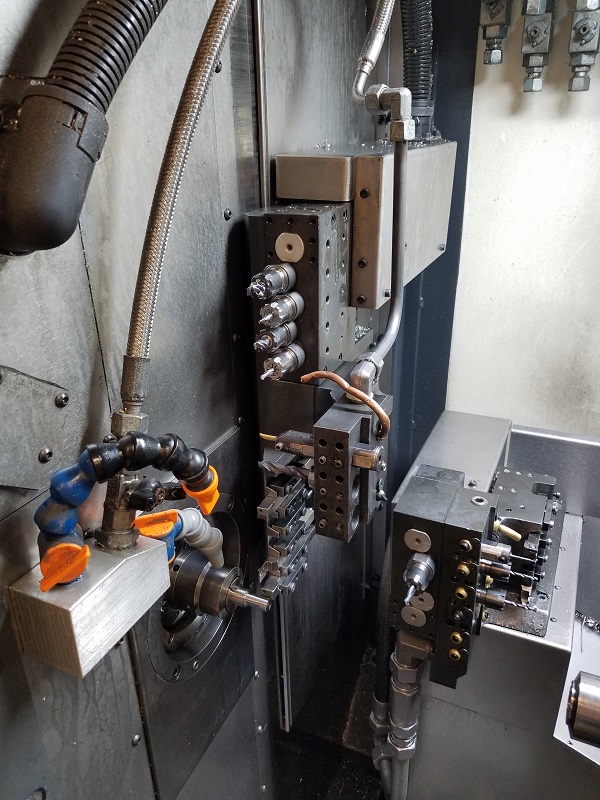

  • 6 Position Tool Holder 12 x 12 on Slide 1
  • 5 Driven Tools with 5 Spindles with Junction ESX16 on Slide 1
  • Tool Holder for 6 Fixed Tools 20 mm on Slide 1
  • Tool Holder with 4 Fixed Tools 20 mm & 4 Position 12 x 12 on Slide 2
  • Pneumatic Ejector & Workpiece Unloading Checking Device
  • Tape Unloading Workpiece
  • Pneumatic Cleaning System for Counter Spindle Collet
  • Angular Synchronism Between Main & Counter Spindle
  • 2 Additional On/Off Outputs (4 M-Functions)
  • Quadruple Light Warning
  • Helical Interpolation

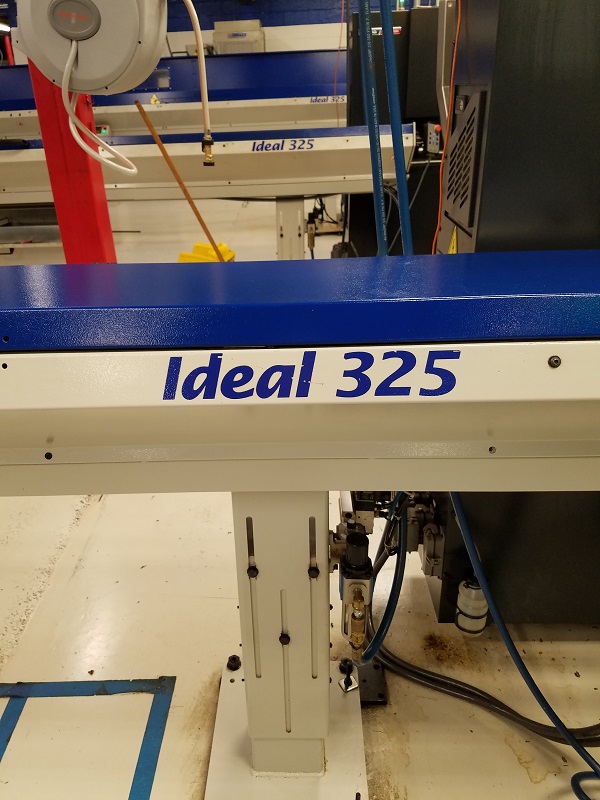

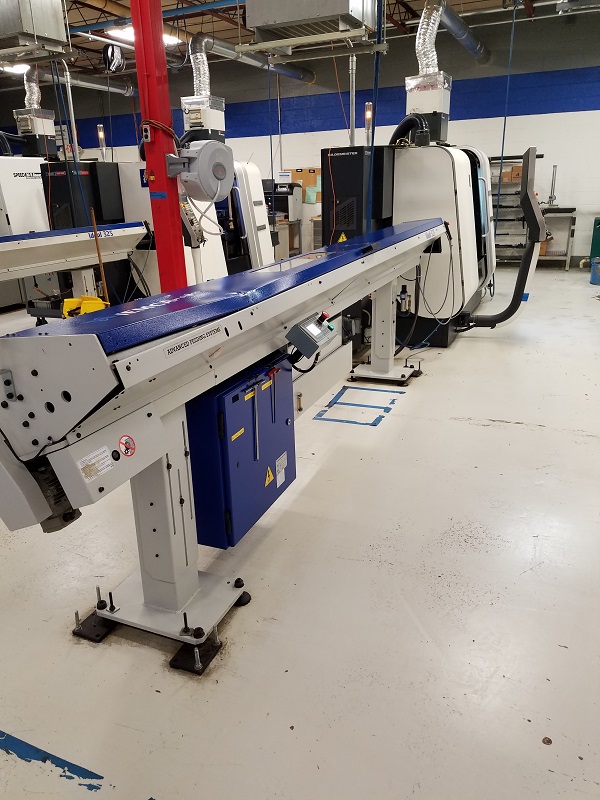

  • Iemca Ideal 325 12 ft Magazine Barfeed

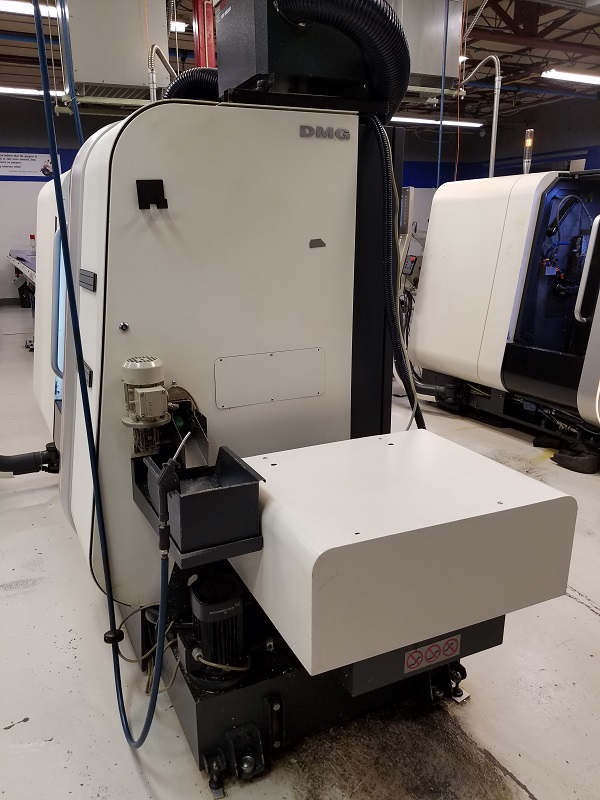

  • Belt-Type Chip Conveyor (Side Exit)
  • Manufacture Date 2011
  • Installed in July 2013

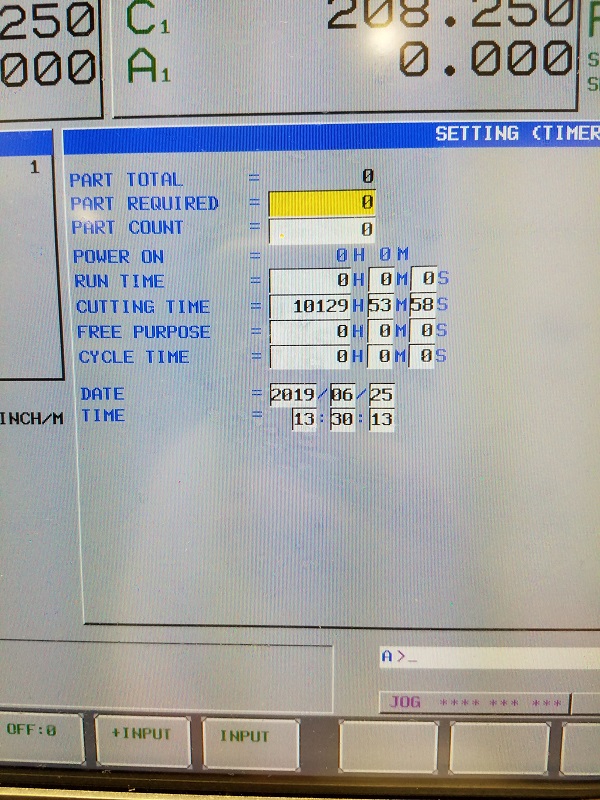

  • 10,129 Cutting Time
