Special Item

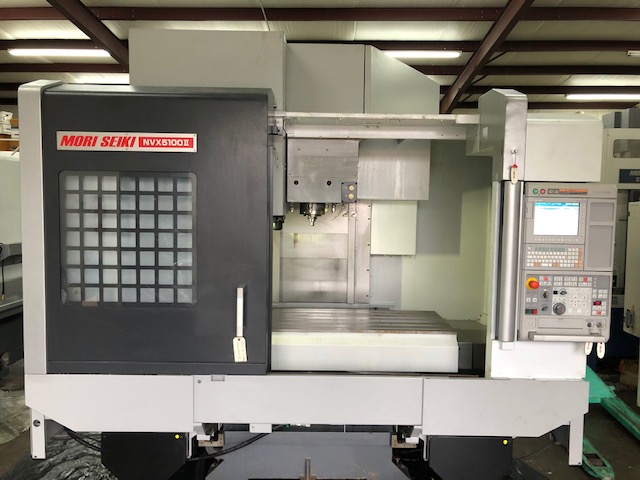

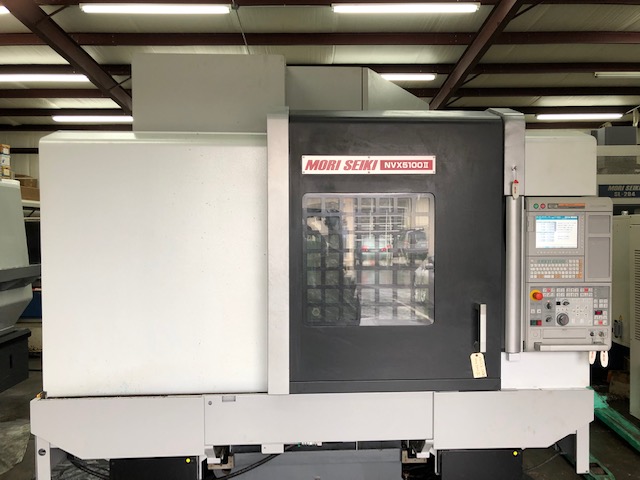

2013 DMG MORI SEIKI NVX-5100II/40

MSX-853, 41.21.20", 13000 RPM, Cat 40, 20 HP, 30 Tools, TSC Interface, ATLM
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 41.3"
  • Y-Axis 20.9"
  • Z-Axis 20.1"

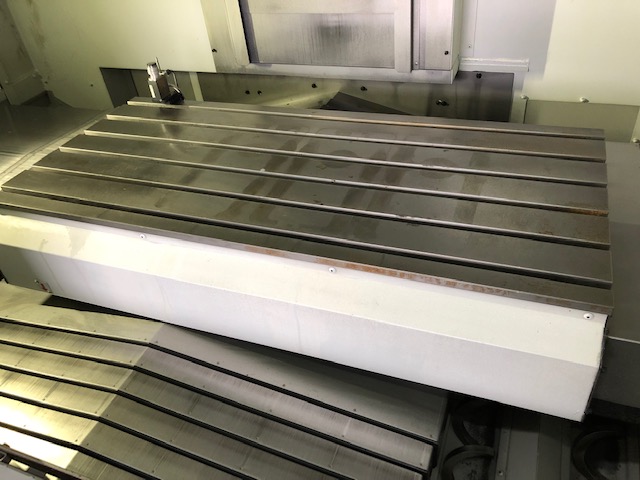

  • Table Size 53.1" x 23.6"
  • Spindle Speed 13000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP
  • Tools 30
  • Table Load Capacity 2640 lbs.
  • Rapid Traverse Rates 1181 IPM
  • Max Tool Diameter 3.1" / 5.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 118.8" x 116.5" x 102.2"
  • Machine Weight 15,432 lbs.
  • Spindle Nose to Table Top 5.9" - 26"
  • Tool Change Time (T - T / C - C) 1.3 / 3.5 Seconds

Product Features

  • MORIC M750-BM CNC Control
  • 10.4" Color TFT

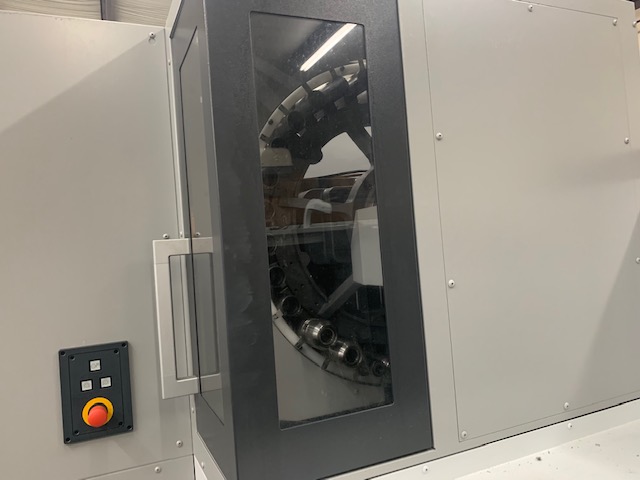

  • 30 Position Side Mount Tool Changer
  • 13000 RPM Spindle Speed
  • Through Spindle Coolant Interface (Center Through Coolant)
  • Chip Flow Coolant System
  • (4) Chip Augers
  • Auto Tool Length Measurement
  • 320 M Part Program Storage
  • 200 Stored Programs
  • 50 MB User Memory Area
  • 200 Sets of Tool Offsets
  • 6 Sets of Work Coordinates
  • 200 Custom Macro Common Variables
  • Heavy Duty Box Way Construction
  • Manufacture Date February 2013
  • 8350 Power On Time
  • 2104 Operation Time
  • 1627 Cutting Time
