Special Item

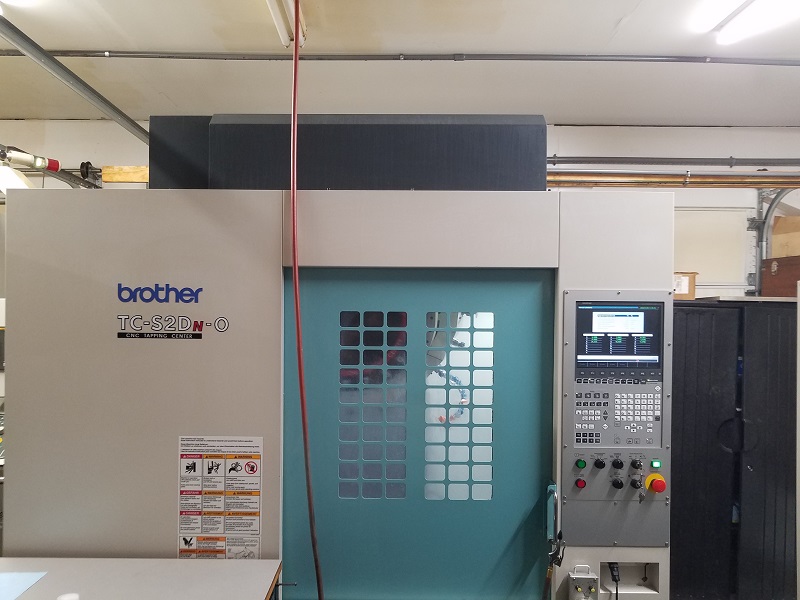

2013 BROTHER TC-S2DN-0

BROTHER B00, 28.16.12, 16,000RPM, BT30, CTS, Probes
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 27.6"
  • Y-Axis Travel 15.7"
  • Z-Axis Travel 11.8"
  • Spindle Speed 16-16,000 RPM
  • Spindle Taper BT-30 Big Plus
  • Rapid Traverse Rates 1969 IPM
  • Max Tool Length 9.8"
  • Maximum Loading Capacity 661 lbs.
  • Machine Dimensions (L x W x H) 86.9" x 80.7" x 102"
  • Machine Weight 5,300 lbs.
  • Distance Between Table Top / Spindle Nose End 7.1-18.9"
  • Tool Change Time (T - T / C - C) 0.9 / 1.6 Seconds
  • Tool Storage Capacity 21 tools
  • Work Area Size 31.5" x 15.7"

Product Features

  • BROTHER CNC-B00 Control
  • 12.1 Inch Color LCD Display
  • 16,000 RPM BT 30 Big Plus Spindle

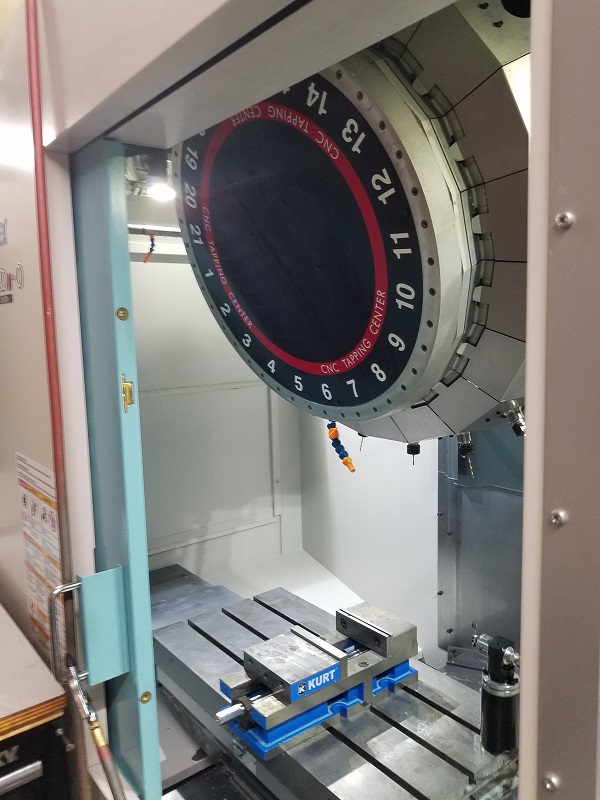

  • 21 Position Turret
  • Coolant Through Spindle (435 PSI)
  • Renishaw TS-27R Tool Setting Probe
  • USB Memory Interface
  • RS232C Port
  • Ethernet
  • Rotational Transformation
  • Synchronized Tap
  • Tool Length Measurement
  • Tool Life Management / Spare Tool
  • Helical / Conical Interpolation
  • Heat Expansion Compensation System
  • Expanded Workpiece Coordinate System
  • Spindle Override
  • Chip Shower with Chip Shower Pump
  • Remote Jog Handle
  • Upgraded 150 Liter Coolant Tank

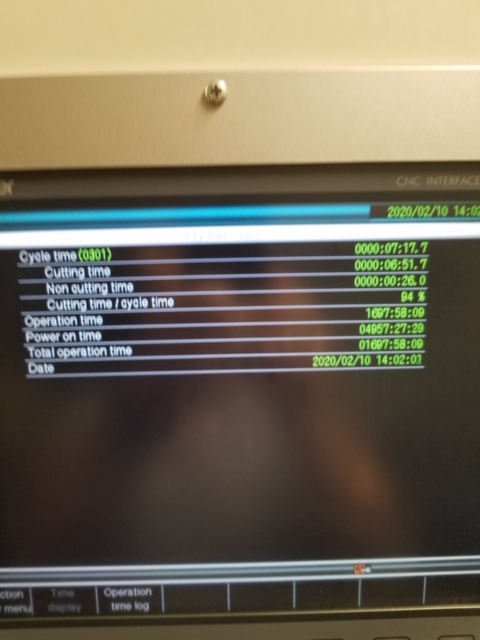

  • 4957 Hours Power On Time
  • 1697 Hours Operation Time
