< Back to Lathes
Special Item

2012 SAMSUNG SL-35 / 1500

Fanuc 0i-TD, 4.6" Bar, 15" Chuck, 60" Length, 2000 RPM, 30HP, 10 Tools, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 15"
  • Max Diameter Bar Capacity 4.6"
  • Max Swing Over Bed / Carriage 23.62" / 16.73"
  • Max Machining Length 60.24"
  • Spindle Motor 30 / 25 HP
  • Spindle Speed 2000 RPM
  • Spindle Nose A2-11
  • Spindle Bore 5.2"
  • Tools 10
  • Rapid Traverse Rates (X / Z) 472 / 590 IPM
  • X-Axis Travel 9.45"
  • Z-Axis Travel 63.19"
  • Turret Index (Single Step) 0.25 Seconds
  • Machine Dimensions (L x W) 197" x 73"
  • Machine Weight 19,000 lbs.
  • Max Turning Diameter 16.5"
  • Spindle Torque 1447 ft. lbs.
  • Tailstock Taper MT#4

Product Features

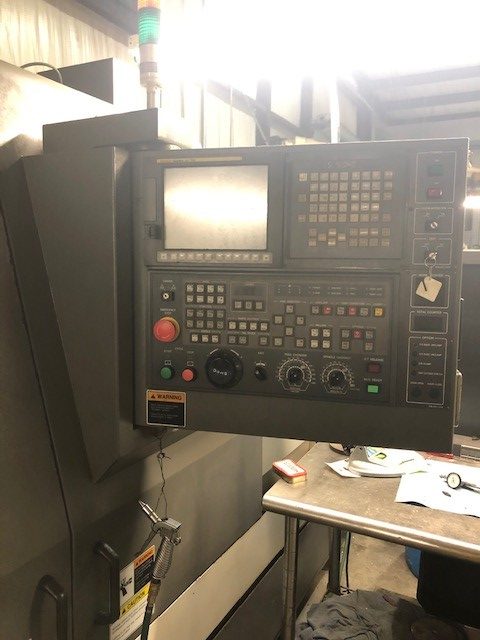

  • FANUC 0i-TD CNC CONTROL
  • 10.4" Color TFT

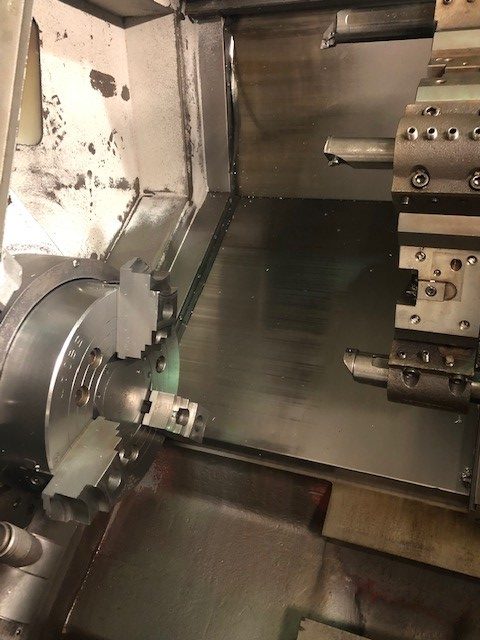

  • 15" Hydraulic Chuck
  • PC/MCIA Interface
  • Manual Guide I
  • 15" Hydraulic Chuck
  • Tool Presetter
  • Tow-Along Tailstock
  • Rigid Tapping
  • NC Torque Limiter
  • Chip Conveyor (Side Exit)
  • Barfeed Interface
  • Three Color Tower Light
  • Two Gear Range Headstock
  • Slant Bed Box Way Construction
