Special Item

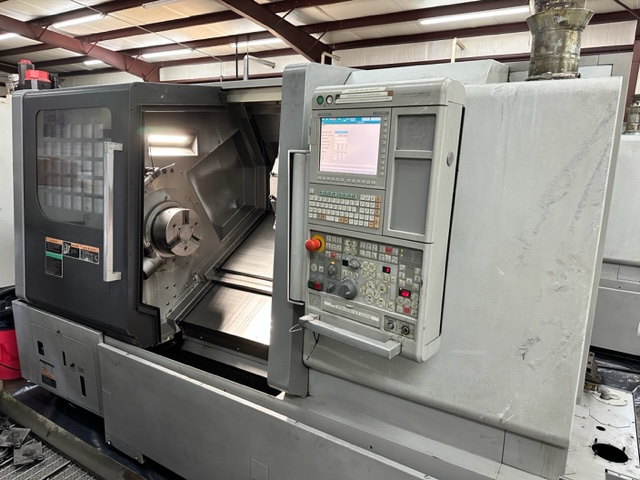

2012 MORI SEIKI NLX-2500MC / 700
Mit, 3.1" Bar, 10" Chuck, 24.7HP, 4000 RPM, 12 Tools, Live Tooling, Tailstock, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 10"
-
Max Diameter Bar Capacity 3.1"
-
Max Swing Over Bed / Cover / Carriage 31" / 23" / 21.3"
-
Max Machining Length 27.7"
-
Spindle Motor 24.7 / 20 HP
-
Spindle Speed 4000 RPM
-
Spindle Nose A2-8
-
Spindle Bore 3.6"
-
Tools 12 (All Live)
-
Milling Motor 7.5 HP
-
Milling Speed 6000 RPM
-
Rapid Traverse Rates 1181 IPM
-
X-Axis Travel 10.2"
-
Z-Axis Travel 31.3"
-
C-Axis Index .001 Degree
-
Turret Index (Single Step) 0.27 Seconds
-
Machine Dimensions (L x W x H) 156.3" x 80.8" x 74.8"
-
Machine Weight 12,000 lbs.
-
Max Turning Diameter (Max / Std) 14.4" / 10.6"
-
Spindle Torque 441.8 ft. lbs.
-
Tailstock Taper MT#5
Product Features
- MORIC MSX-853 IV (MITSUBISHI 730BM) CNC CONTROL
- 10.4" Color TFT
- C-Axis Milling Capability

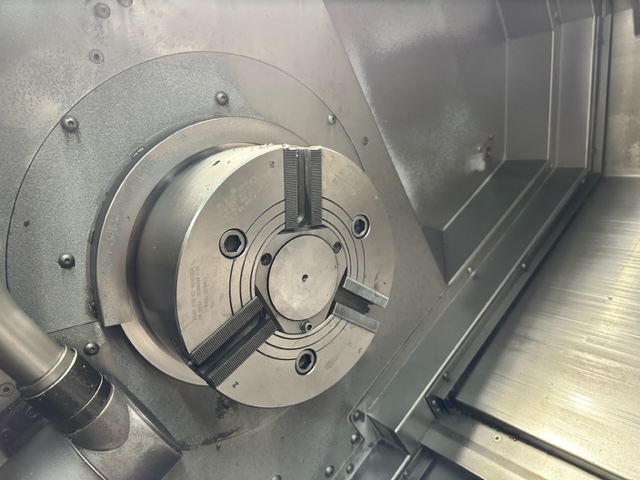

- 10" Hydraulic Chuck
- Digital Tailstock
- Built-In Integral Milling Spindle Motor

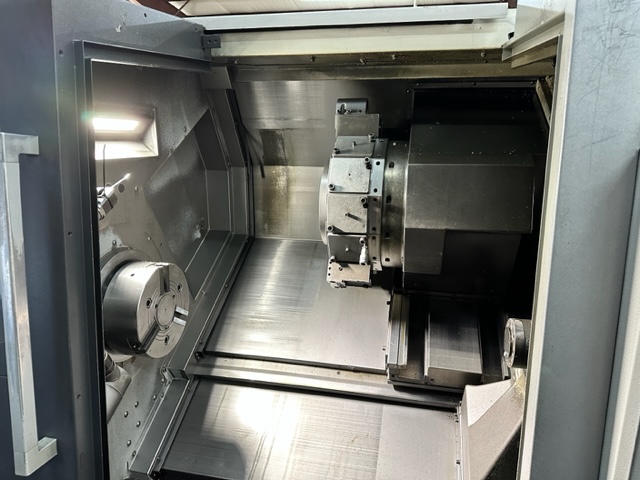

- Servo Driven Turret
- Tool Presetter

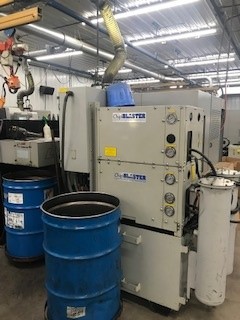

- Chip Blaster (1000 PSI)
- Turbo Chip Conveyor (Side Exit)
- Slant Bed Box Way Construction
- (3) Turning Holders
- (3) Boring Bar Holders
- Manufacture Date July 2012
