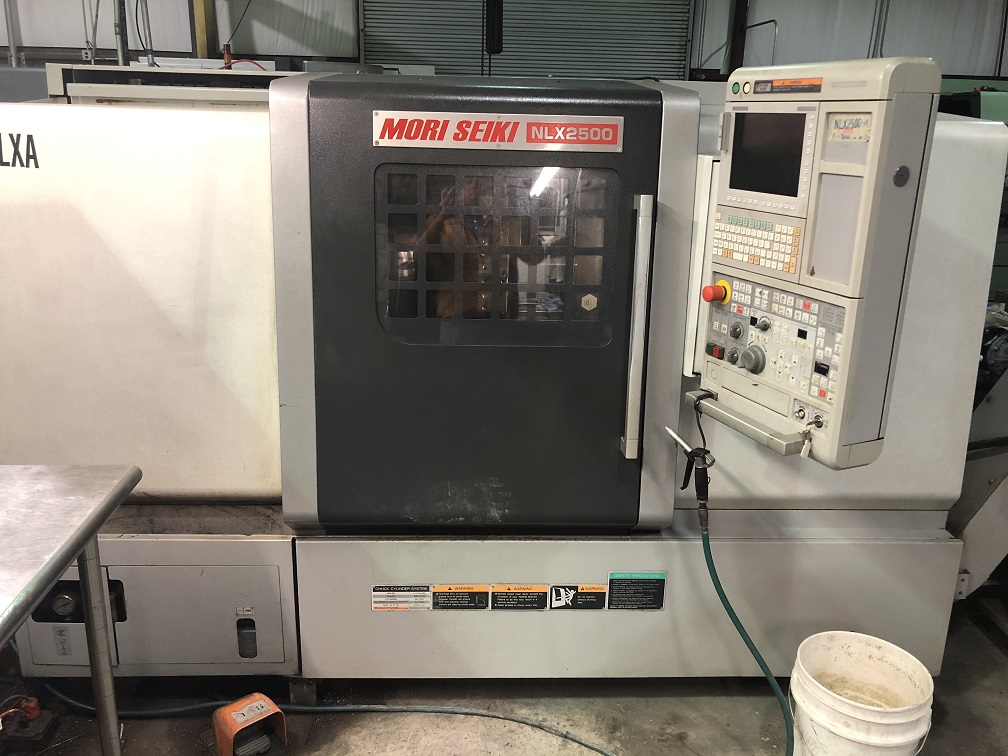

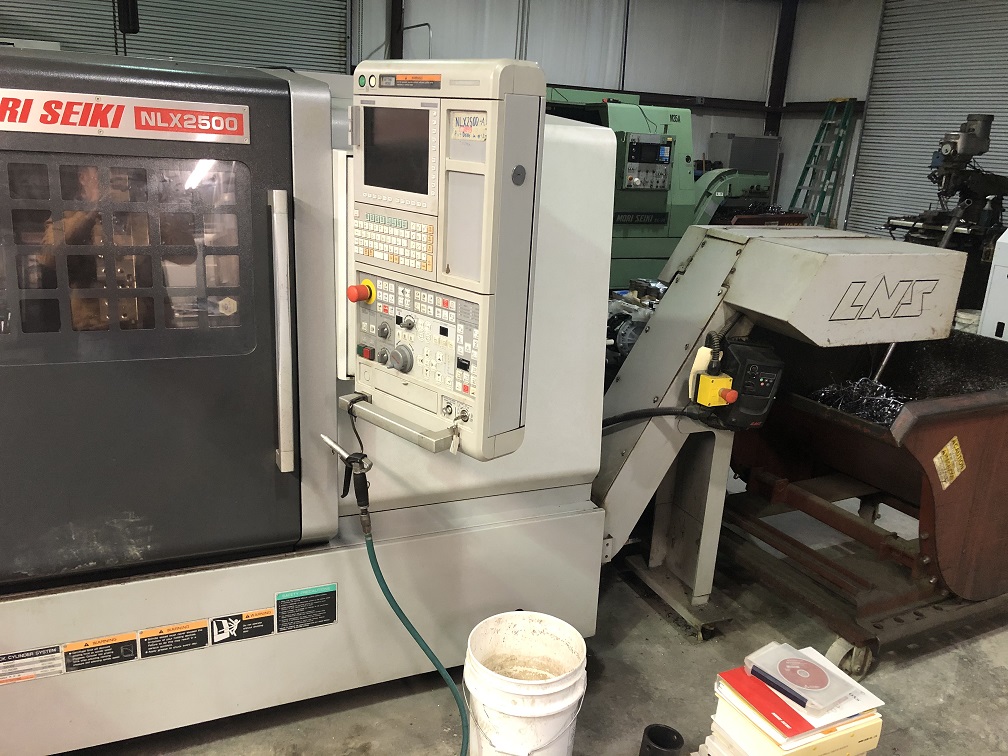

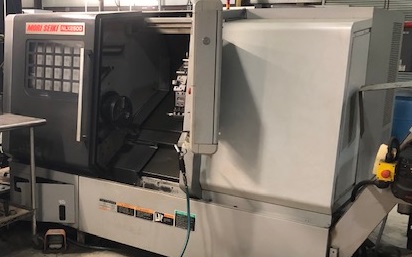

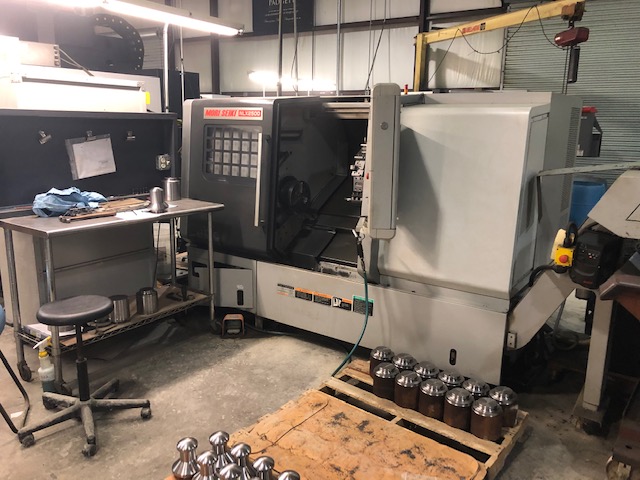

2012 MORI SEIKI NLX-2500 / 700 (21)

Mit 730BM, 3.1" Bar, 10" Chuck, 18" Max Dia, 28.6" Length, 12 Tools, 25HP, 3000 RPM, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed / Carriage 23.2" / 14.2"
  • Turning Diameter (Max / Std) 18.1" / 10.5"
  • Max Machining Length 28.6"
  • Spindle Motor 25 / 20 HP
  • Spindle Speed 3500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 31.3"
  • Turret Index (Single Step) 0.34 Seconds
  • Machine Dimensions (L x W x H) 146.7" x 71.4" x 69"
  • Machine Weight 9900 lbs.
  • Spindle Torque 329 ft. lbs.
  • Tailstock Taper MT #5

Product Features

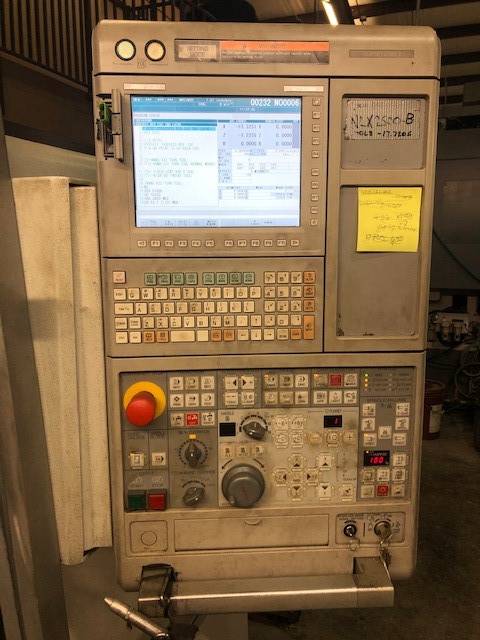

  • MITSUBISHI 730BM CNC CONTROL
  • 10.4" Color LCD
  • 10" Kitagawa B210 Hydraulic Chuck
  • Tailstock
  • Tool Presetter
  • Turbo Chip Conveyor (Side Exit)
  • Slant Bed Box Way Construction
  • Mfg Date August 2012
