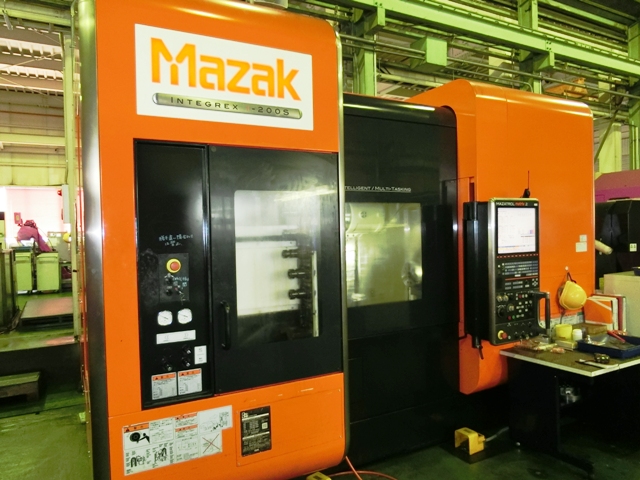

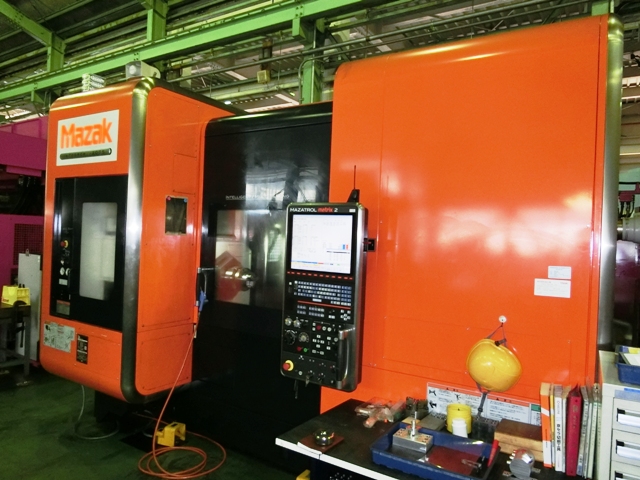

2012 MAZAK INTEGREX i200S

Matrix 2, 2.55" Bar, 8" Chuck, 40" Length, 36 Tools, 30 HP, 5000 RPM, Sub Spindle, C, Y & B-Axis Milling, Tool Eye, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.5"
  • Max Swing Over Bed 26"
  • Max Machining Length 40"
  • Spindle Motor 30 / 20 HP
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3"
  • Tools 36
  • Milling Motor 30 HP
  • Milling Speed 12,000 RPM
  • Sub Spindle Motor 25 / 20 HP
  • Sub Spindle Speed 35 - 5000 RPM
  • X-Axis Travel 24.2"
  • Z-Axis Travel 42.25"
  • Y-Axis Travel 9.84"
  • C-Axis Index (Main & Sub Spindle) .0001 Degrees
  • B-Axis Index .0001 Degrees
  • B-Axis Travel -30 to 210 Degrees
  • Max Tool Weight 26.46 lbs.
  • Max Turning Diameter 19.5" - 26"

Product Features

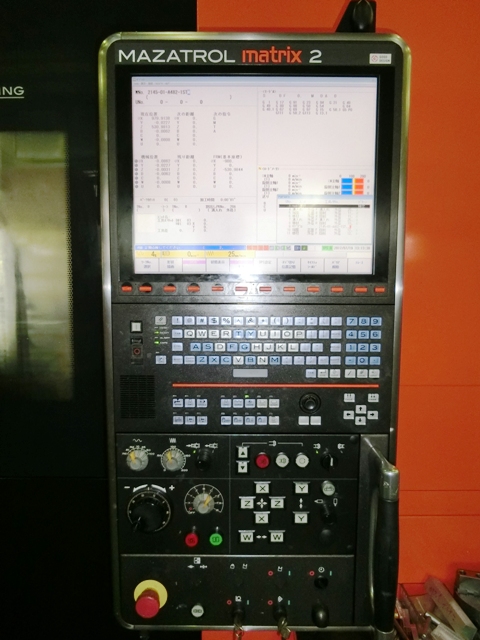

  • Mazatrol Matrix 2 CNC Control
  • 19" Color LCD

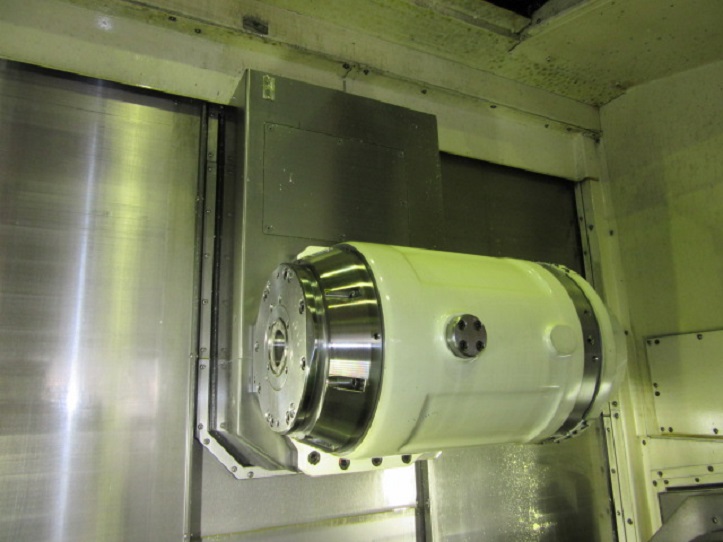

  • B-Axis 0.0001 Degree Contouring
  • C & Y-Axis Milling Capability

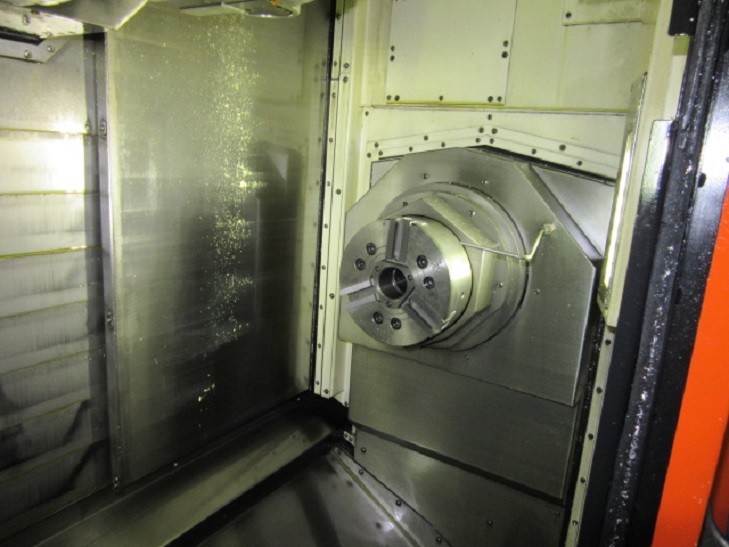

  • Programmable Sub Spindle (.0001 Degree Index)

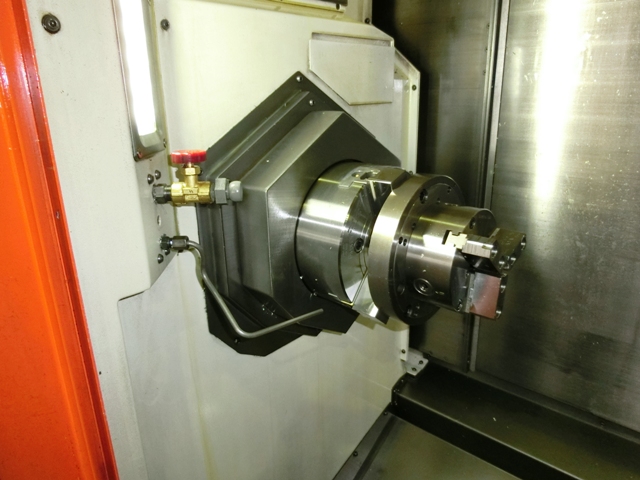

  • 8" Hydraulic Chucks on Main & Sub Spindles
  • Programmable Tool Eye
  • Scale Feedback on X, Y & Z Axes
  • Conversational Programming
  • EIA/ISO Input Function
  • Hobbing Function
  • Ball Screw Cooling on X, Y & Z
  • Oil Skimmer
  • Coolant Temperature Control
  • USB Port
  • G00 Slope Constant
  • Milling Spindle Synchronous Tapping
  • Chuck Air Blow
  • (36) Tool Magazine (Capto C6)
  • Auto Chuck Open/Close on Both Spindles
  • Work Measuring System (Renishaw RMP-600 Touch Probe)
  • 5-Axis Operation Basic Package

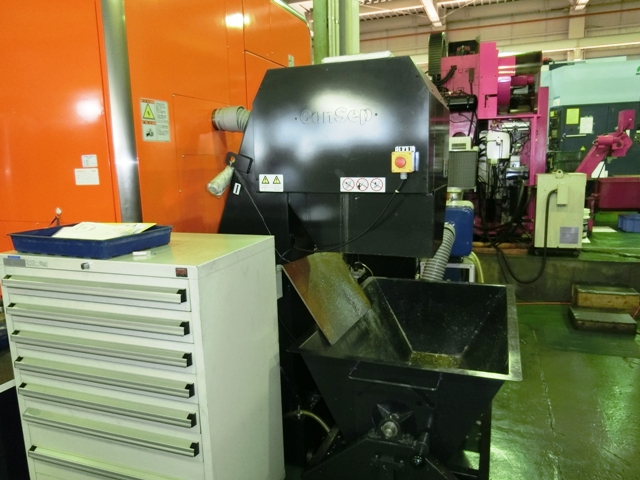

  • Consep Microfine Chip Conveyor (Side Exit)
  • Chuck Clamp Pressure 2 (Step Changes)
  • Positioning Detector
  • Pitch Error Input on X, Y & Z
  • Shower Coolant
  • Calendar Type Auto Electric Power On/Off
  • EIA Tapping/Boring Tornado
  • EIA 5-Axis Operation Tool Diameter Compensation Function
  • EIA Inverse Time Feed
  • Mazacc 3D High Speed High Accuracy Software
  • Threading Function
  • Mistera Mist Collector
  • Manufacture Date March 2012
  • 16,940 Power On Time
  • 6579 Auto Operation Time
  • 5541 Auto Cut Time
  • 4579 Total Cut Time
  • 16,940 Total Time
