2012 HONOR SEIKI VL-125CM CNC VTL

FANUC 0iTD, 63" Dia, 50" Chuck, 60 HP, 16 Tools, 300 RPM, Live Tooling, Ram-Type, Chip Conveyor, Gearbox, Box Ways
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 50"
  • Max Swing 63"
  • Spindle Motor 60/50 HP
  • Spindle Speed 300 RPM
  • Tools 16
  • Rapid Traverse Rate 393 IPM
  • X-Axis 37.4"
  • Z-Axis Travel (Rail) 35.4"
  • Machine Weight 54,000 lbs.
  • Distance From Ram to Table 25.59" - 57.08"
  • Live Tool Motor 20 HP
  • Live Tool Speed 50 - 2250 RPM
  • Max Turning Diameter 63"
  • Max Turning Height 49.21"
  • Max Workpiece Weight 11,023 lbs.
  • Programmable Cross-Rail Travel 31.49" (7.87" x 4 Steps)
  • Ram Size 8.66" sq.
  • Spindle Torque 9878 ft. lbs.
  • Tool Holder BT-50

Product Features

  • FANUC 0i-TD CNC Control
  • 10.4" Color LCD
  • C-Axis Live Tooling

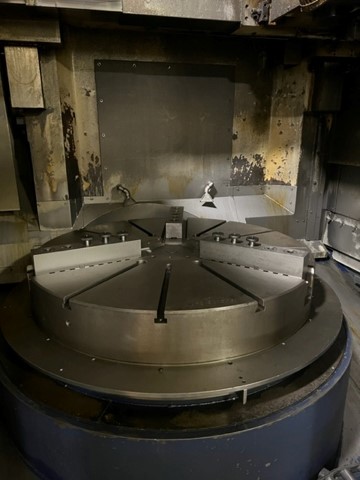

  • 50" Hydraulic 3-Jaw Chuck
  • 49" Manual 4-Jaw Chuck

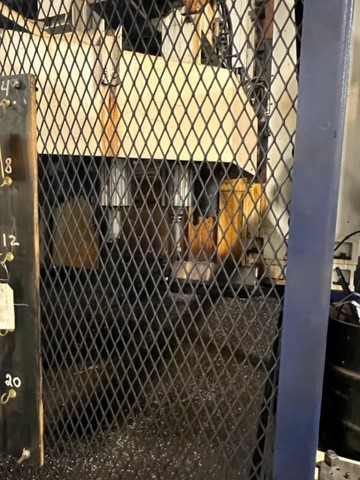

  • 16 Tool Magazine (BT-50)
  • Chip Conveyor (Right Side Exit)
  • Remote Jog Handle
  • Three Color Tower Light
  • Spindle Chiller Unit
  • Two Speed Gearbox
  • Heavy Duty Box Way Construction
  • 9200 Run Time Hours
