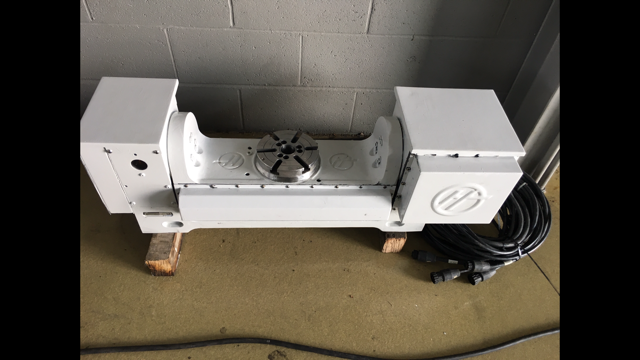

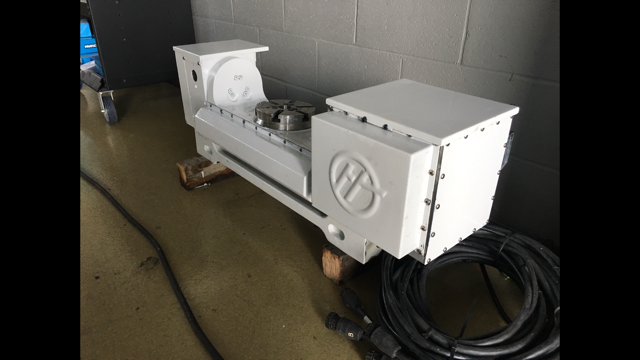

2012 HAAS TR-160 FIVE AXIS ROTARY TILT TABLE

6.3" Dia. Rotary Platter, 17.5" Swing, 80 lbs., Cables Included
Talk to a representative today!
(803) 548-8000

Product Details

  • Accuracy +/- 15 Arc Sec.
  • Backlash 30 Arc Sec.
  • Bore (Dia / Depth) N/A
  • Bore 1.5"
  • Brake Torque 100 ft. lbs.
  • Brake Torque 200 ft. lbs.
  • Capacity 80 lbs.
  • Gear Ratio 63
  • Max Air Pressure 120 PSI
  • Max Resolution / Step 0.001 Deg
  • Max Rotation / Step 999.999 Deg
  • Platter Diameter 6.3"
  • Repeatability 10 Arc Sec.
  • Resolution 0.001 Deg
  • Rotation 120 Deg
  • Speeds 0.001 to 80 Deg / Sec
  • Torque 100 ft. lbs.
  • Torque 150 ft. lbs.
  • Weight 478 lbs.

Product Features

  • B-AXIS ROTATION
  • A-AXIS TILT

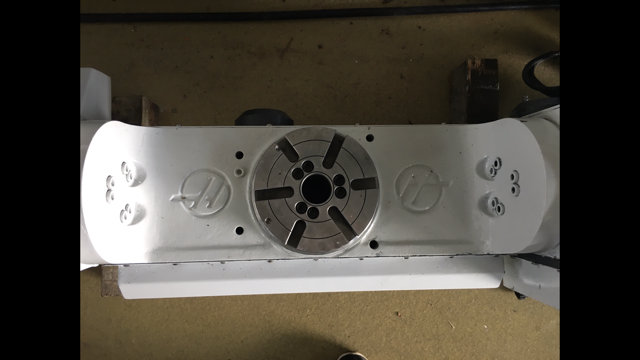

  • 6.3" Diameter Rotary Platter
  • Sigma One Motor
  • Cables Included
