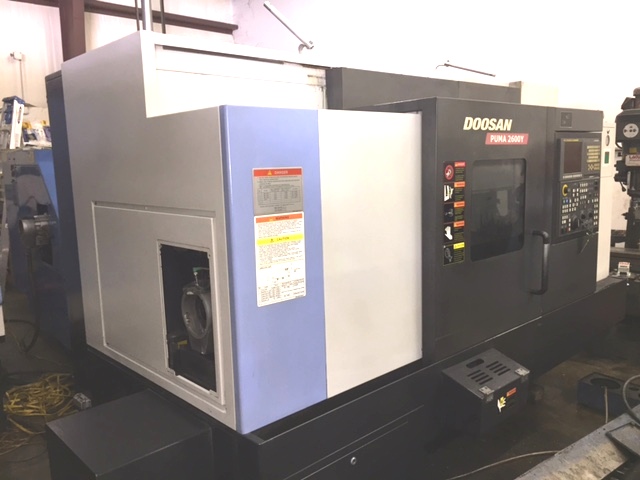

2012 DOOSAN PUMA 2600Y

Fanuc 0i, 3" Bar, 10" Chuck, 3500 RPM, 12/24 Tools, 30 HP, 30" Length, 14.8" Max Dia, Y-Axis, Tailstock, Chip, Tool Presetter
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.03"
  • Max Swing Over Bed / Carriage 30.7" / 24.8"
  • Max Machining Length 29.9"
  • Spindle Motor 30 / 25 HP
  • Spindle Speed 3500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.38"

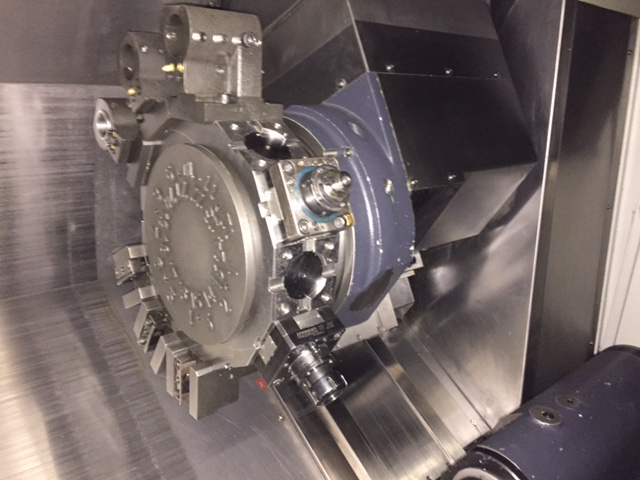

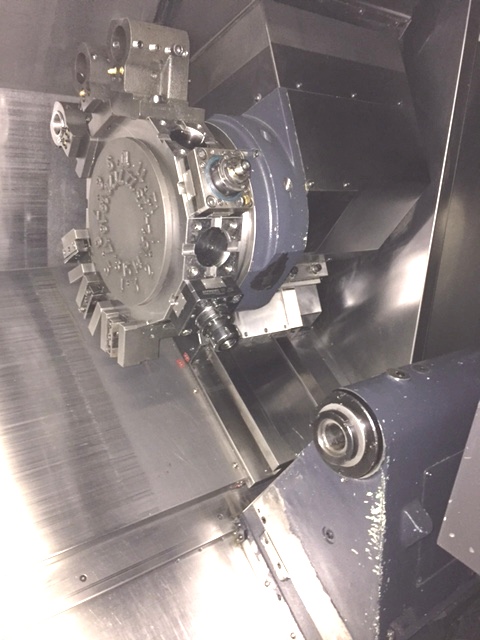

  • Tools 12 / 24 (All Live)
  • Milling Motor 7.5 HP
  • Milling Speed 5000 RPM
  • Rapid Traverse Rates (X & Z) 1181 IPM
  • X-Axis Travel 10.23"
  • Z-Axis Travel 32.67"
  • Y-Axis Travel 4.13"
  • C-Axis Index (Main & Sub Spindle) .001 Degree
  • Machine Dimensions (L x W x H) 141.7" x 73.3" x 85.2"
  • Machine Weight 14,000 lbs.
  • Max Turning Diameter 14.8"
  • Tailstock Taper MT#5

Product Features

  • FANUC i Series CNC CONTROL
  • 10.4" Color LCD
  • PC / MCIA Interface
  • USB Port
  • C & Y-Axis Milling Capability

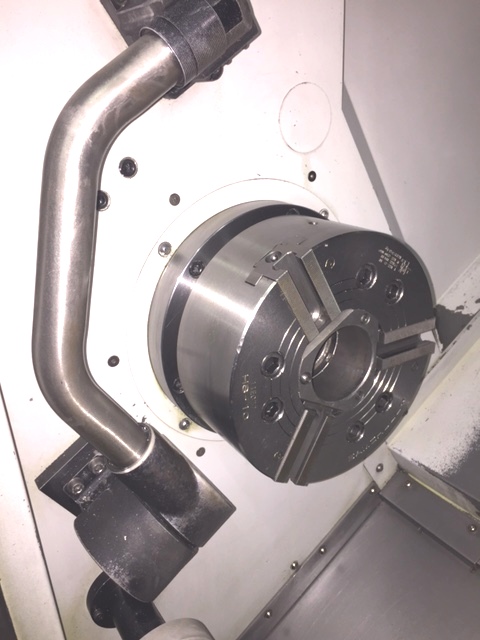

  • 10" Hydraulic Chuck
  • Auto Parts Catcher
  • Automatic Tool Presetter
  • Chip Conveyor (Side Exit)
  • Three Color Tower Light
  • Tow Along Tailstock
  • (3) OD Live Holders
  • (3) Face Live Holders
  • Manufacture Date June 2011
  • Installed in 2012
  • 10,372 Power On Time
  • 1892 Operating Time
  • 2603 Cutting Time
