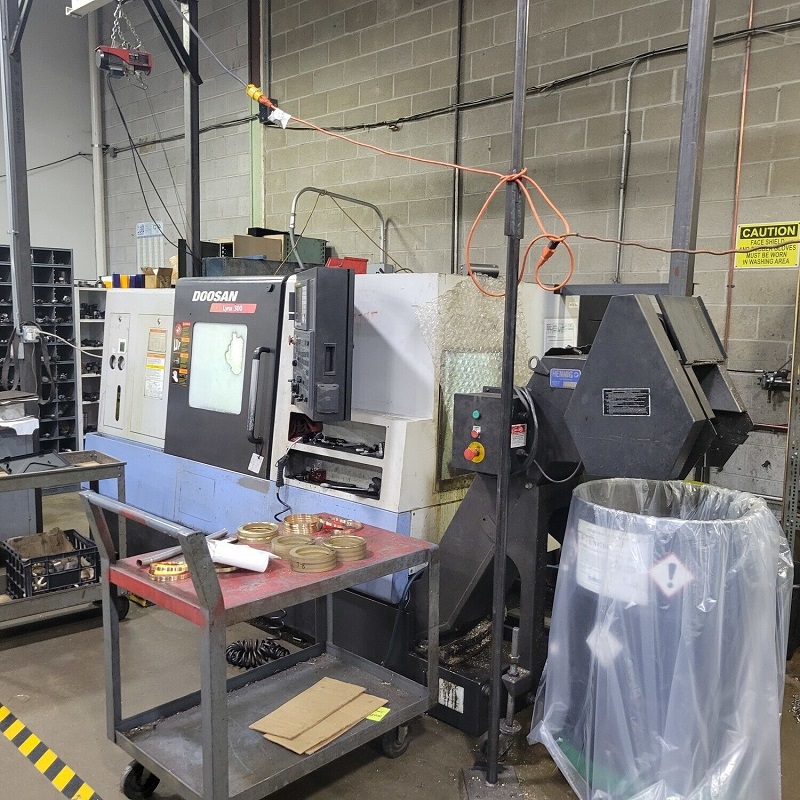

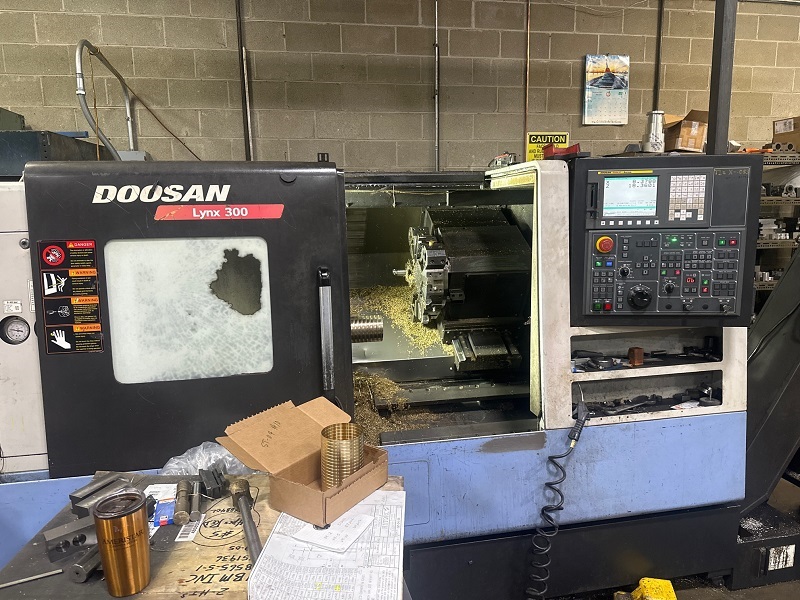

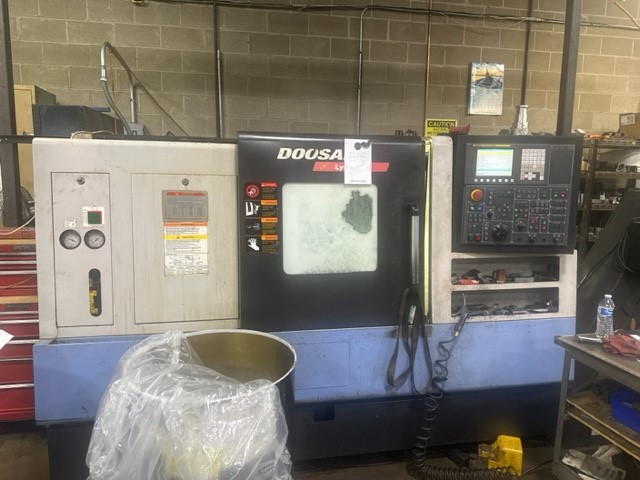

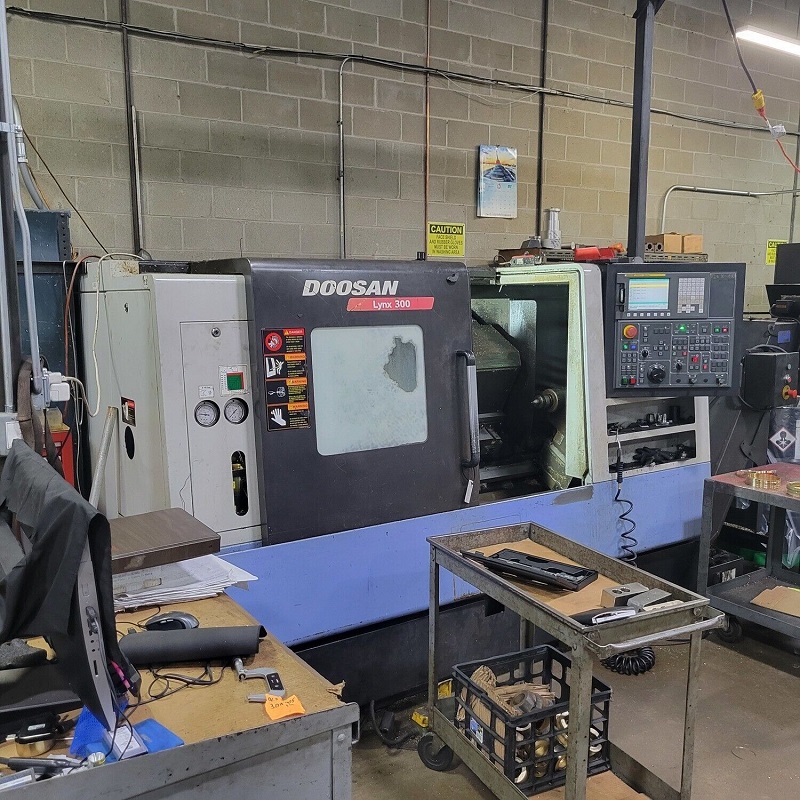

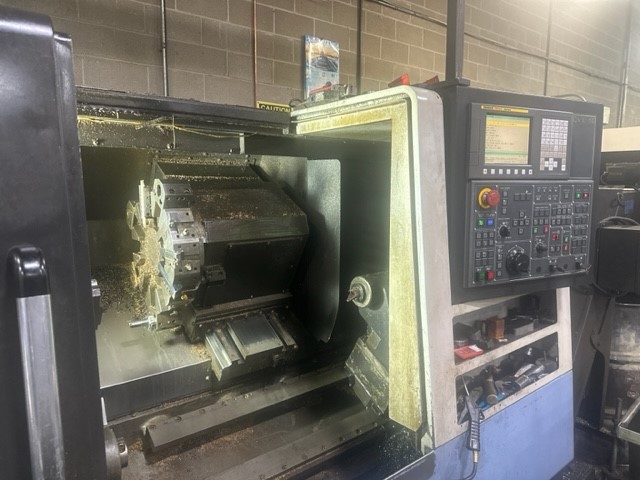

2012 DOOSAN LYNX 300

FANUC i Series, 3" Bar, 10" Chuck, 12 Tools, 20 HP, 3500 RPM, Tool Presetter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.03"
  • Max Swing Over Bed 25.59"
  • Spindle Motor 20 HP AC
  • Spindle Speed 3000 RPM
  • Tools 12
  • X-Axis Travel 10.4"
  • Z-Axis Travel 31"
  • Machine Dimensions (L x D x H) 154" x 71" x 70"
  • Machine Weight 9000 lbs.
  • Max Turning Diameter 17.7"
  • Max Turning Length 30.1"

Product Features

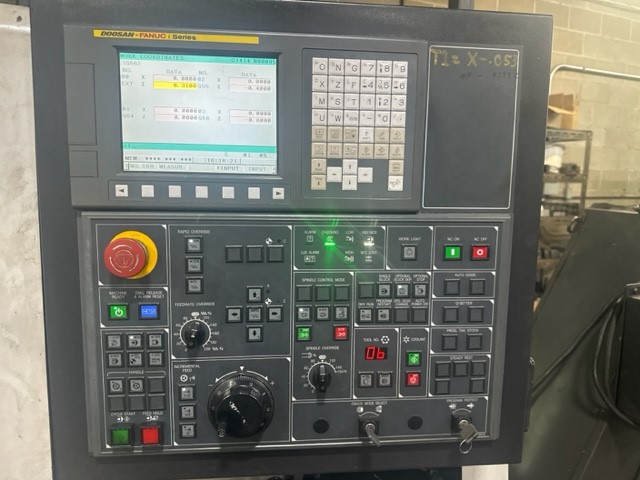

  • FANUC i Series CNC Control
  • 10.4" Color LCD
  • USB Port

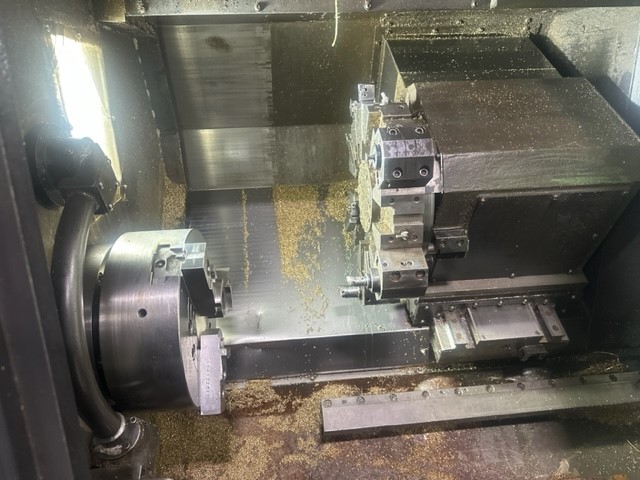

  • 10" Hydraulic Chuck
  • Tool Presetter
  • Programmable Tailstock
  • Hennig Chip Conveyor (Side Exit Hinge Type)
  • (4) Boring Bar Holders
  • (4) OD Wedge Blocks
  • Manufacture Date April 2012
