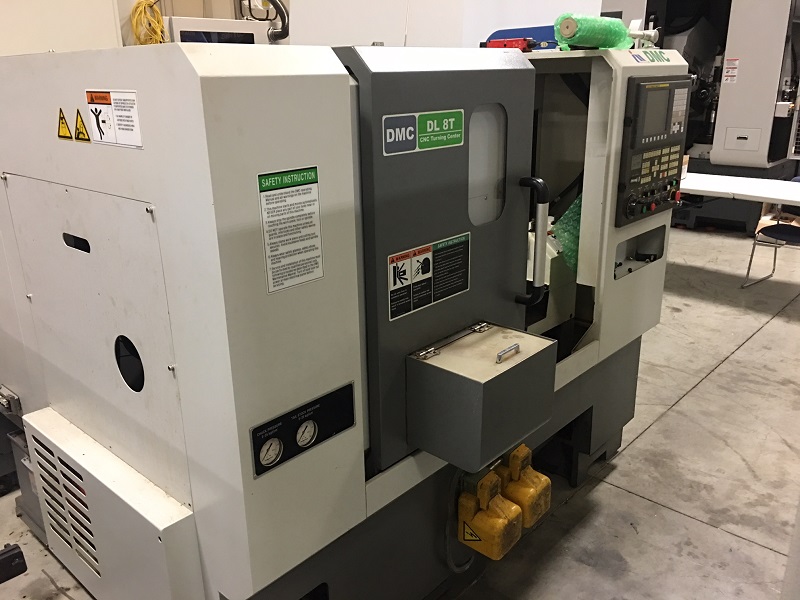

2012 DMC DL-8T

Fanuc 0i-TD, 2" Bar, 8" Chk, 10 Tools, 4500 RPM, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2.05"
  • Max Swing Over Bed / Carriage 18.8" / 11.22"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 50 - 4500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.44"
  • Tools 10
  • Rapid Traverse Rates (X / Z) 1181 / 1417 IPM
  • X-Axis Travel 6.3"
  • Z-Axis Travel 13.78"
  • Machine Dimensions (L x W x H) 80" x 64" x 65"
  • Machine Weight 6000 lbs.
  • Max Turning Diameter 11.02"
  • Tailstock Taper MT#4

Product Features

  • Fanuc 0i-Mate TD CNC Control
  • 10.4" Color LCD
  • 8" Hydraulic Chuck
  • Tool Presetter (Removable)
  • Auto Parts Catcher
  • Tailstock
  • Manufacture Date November 2012

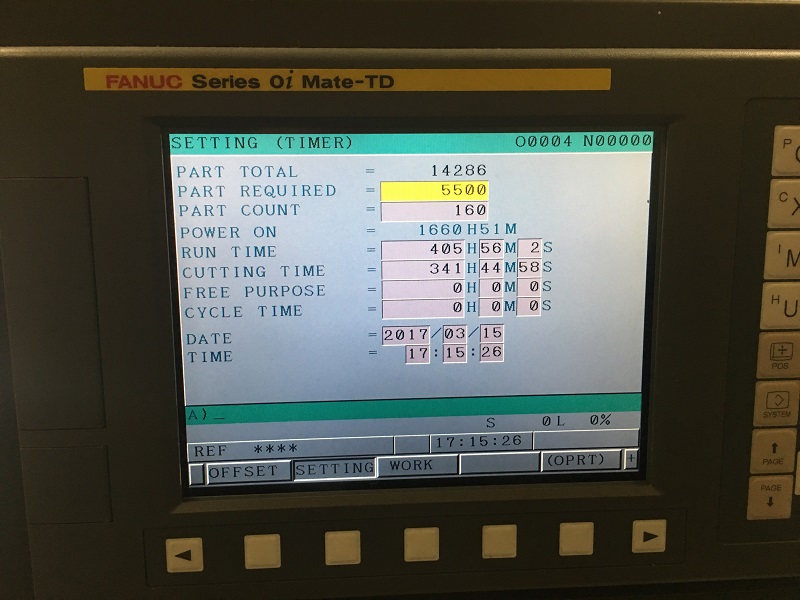

  • 1660 Power On Time
  • 405 Run Time
  • 341 Cutting Time
