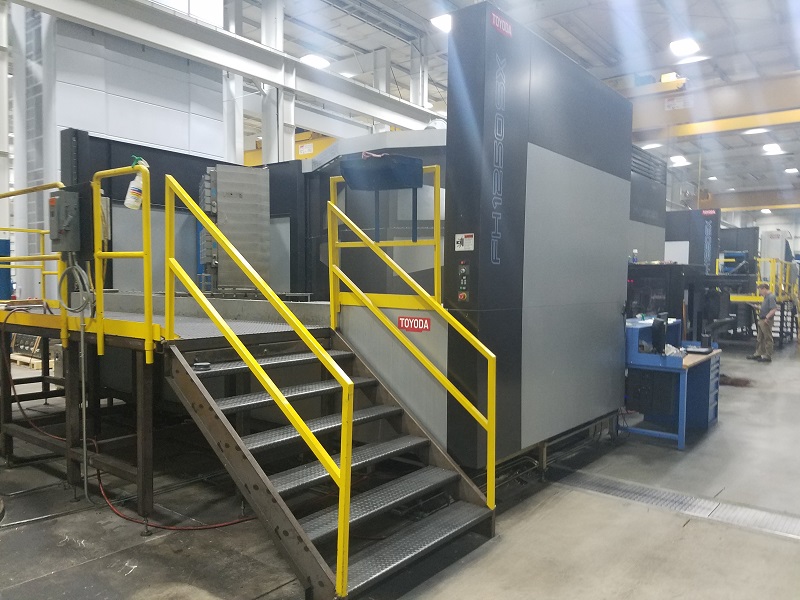

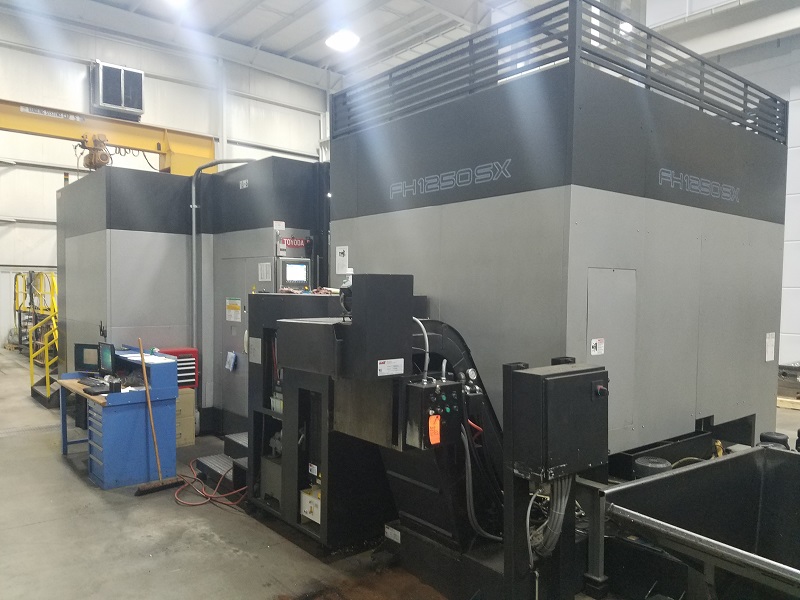

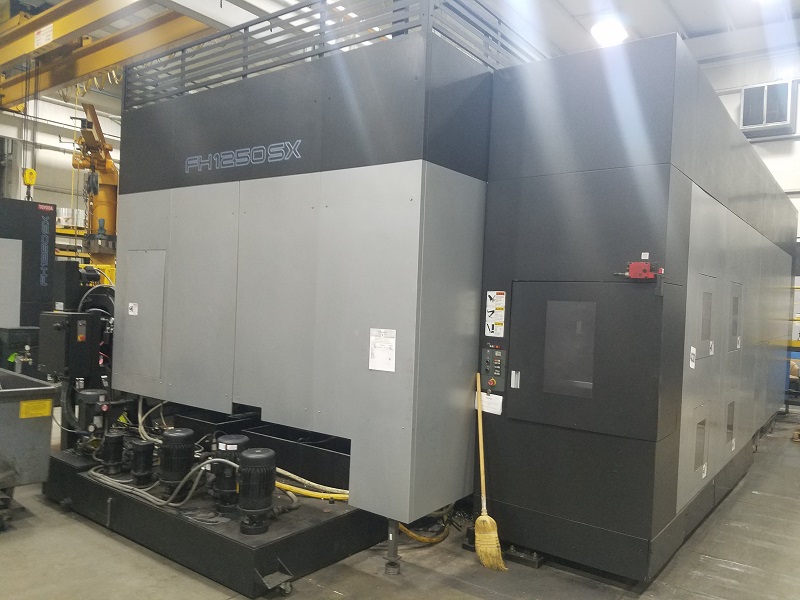

2011 TOYODA FH1250SX

Fanuc 310iMA, 49" Pallets, 86.63.73", 6000 RPM, 60 Tools, Cat 50, 1 Degree, TSC 1000 psi, Touch Probe, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

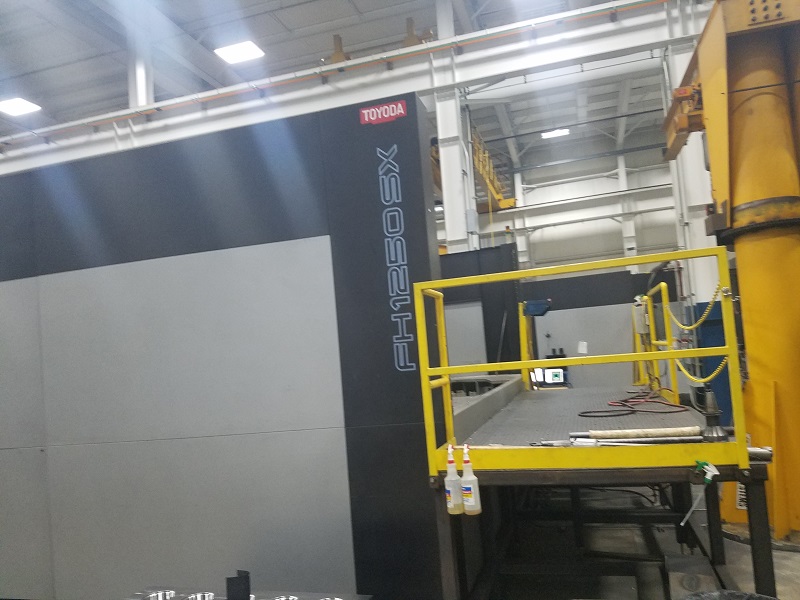

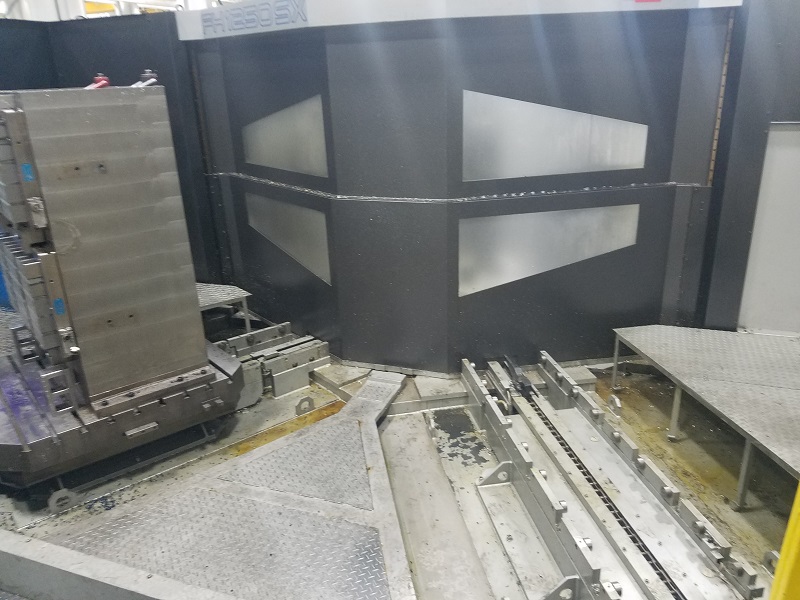

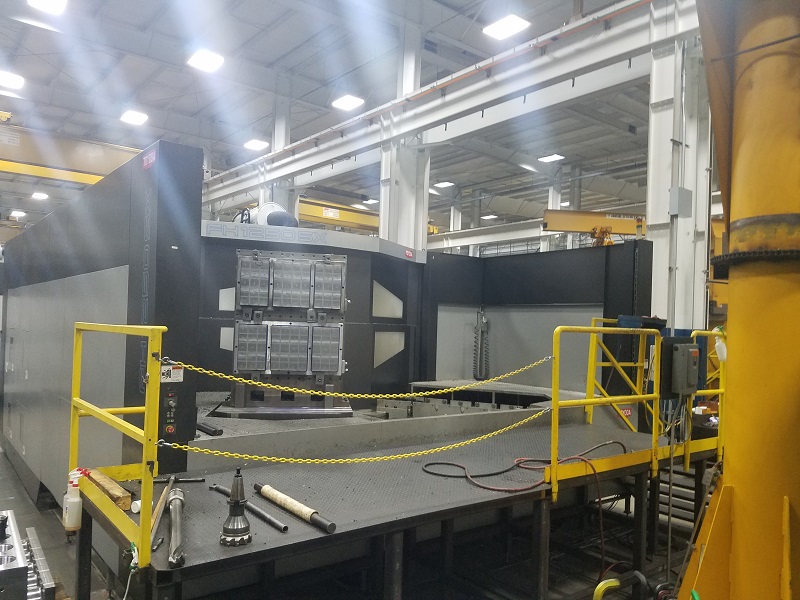

  • Pallet Size 49.2" (2)
  • X-Axis Travel 86.6"
  • Y-Axis 63"
  • Z-Axis Travel 72.8"
  • Pallet Index 1 Degree

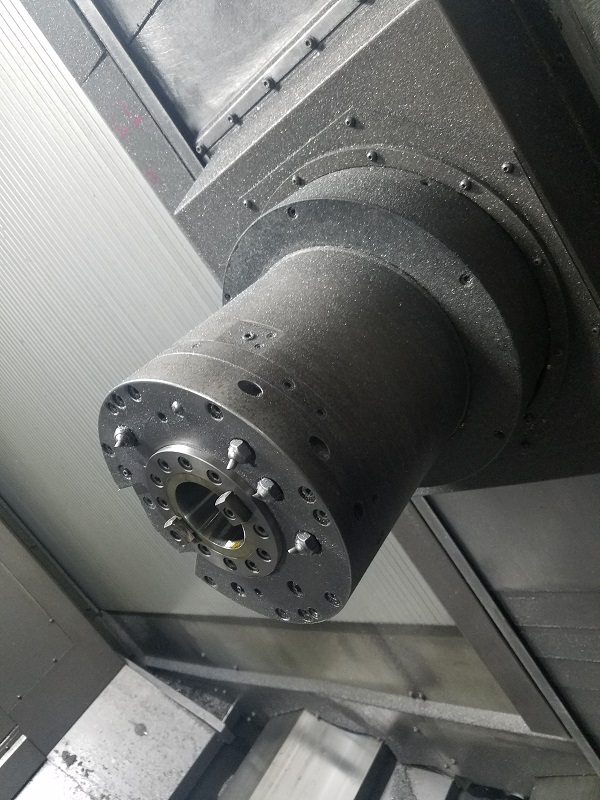

  • Spindle Speed 6000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor 50 / 40 HP
  • Tools 60
  • Rapid Traverse Rates (X Y Z) 1653 IPM
  • Max Workpiece Size (Dia / Height) 84.5" / 70.87"
  • Machine Dimensions (W x L x H) 244" x 390" x 178"
  • Machine Weight 105,800 lbs.
  • Table Load Capacity 11,000 lbs.

Product Features

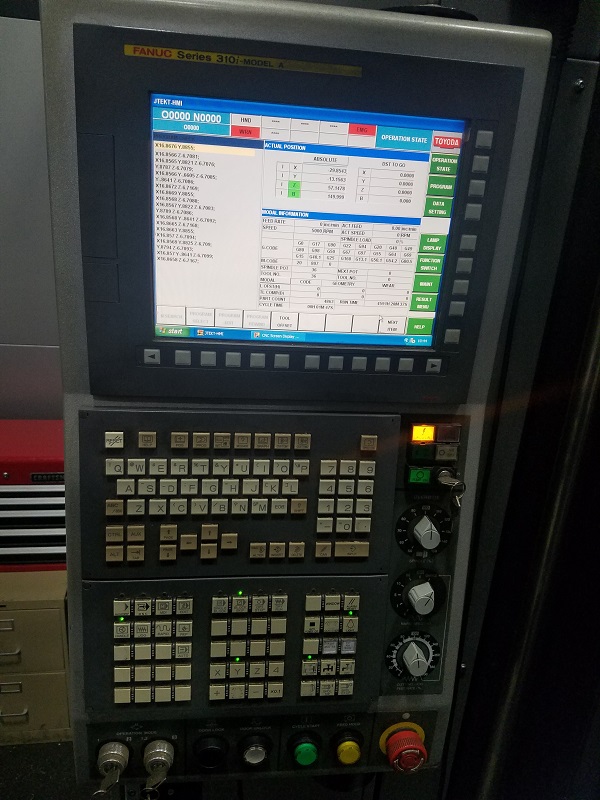

  • Fanuc 310iMA CNC Control
  • 12.1" Color LCD
  • PC/MCIA Interface
  • Integrated Ethernet & Memory Card I/O
  • Rigid Tapping

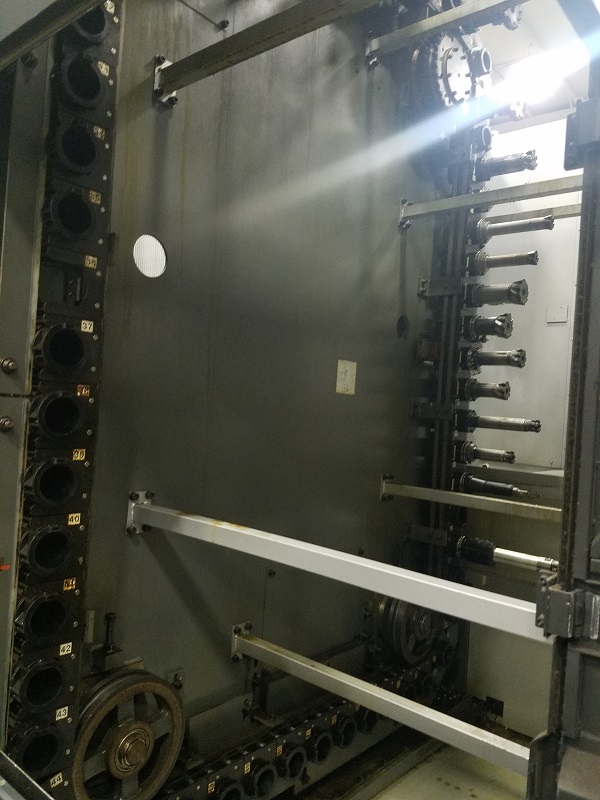

  • 60 Tool Magazine
  • Extended Memory (128 KB, 320 m, 1049 ft)
  • Tool Offset Memory C
  • Helical Interpolation
  • Custom Macro with Additional Common Variables
  • Chip Conveyor (Right Rear Hinge Belt Type)
  • High Torque Geared Headstock
  • Through Spindle Coolant (1000 psi)
  • 48 Sets of Work Coordinates
  • Overhead Shower Coolant
  • Renishaw OMP60 Optical Touch Probe with SMT Inspection Software
  • AI Precision Control II
  • High Speed Processor (600 Block Buffer)
  • MistBuster 2000 Mist Collector
  • Air Blow Spindle Option
  • Manufacture Date December 2008
  • Installed in September 2011
