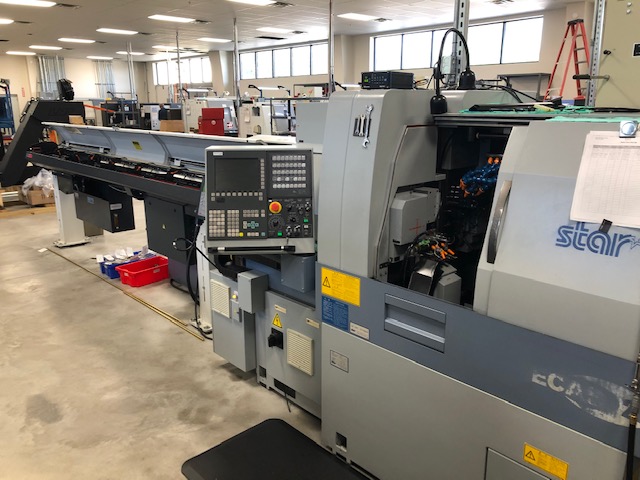

2011 STAR ECAS 20

Siemens 840D, 20mm Swiss Type, Sliding Headstock, 10 Axis, LNS Barfeed, Mist Collector, Parts Ejector, Workpiece Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Sub Spindle Index .001 Degrees

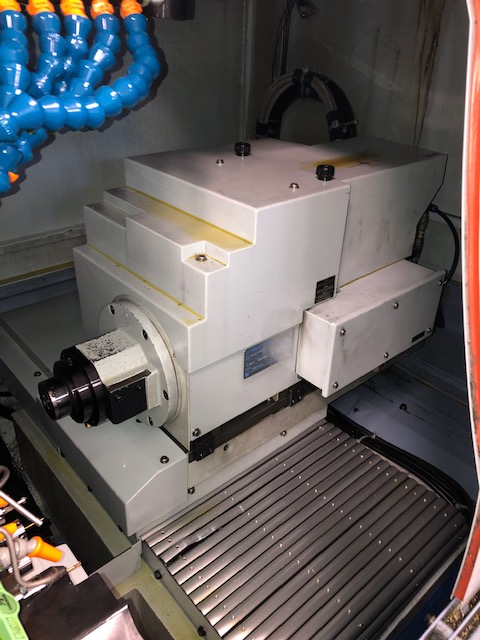

  • Sub Spindle Speed 12,000 RPM
  • Machine Dimensions (L x W x H) 102" x 45.5" x 69.5"
  • Machine Weight 7,718 LBS
  • 4 Spindle Sleeve Holder 4 Rear-end Working
  • Backworking 4 Spindle Attachment 4 Tools
  • Headstock Stroke 205mm (8")
  • Main Spindle Indexing .001 Degrees
  • Main Spindle Speed 12,000 RPM Max
  • Max Drilling Capacity 10mm
  • Max Length for Front Ejection 80mm
  • Max Machining Diameter 20mm
  • Max Slotting Capacity 1.5mm x 4.0mm
  • Number of Tools (Front) 4
  • Number of Tools (Rear) 2
  • Power Consumption 8.0KVA
  • Power Driven Tool Spindle Speed 8,000 RPM
  • Power Driven Tools (Front) 3
  • Power Driven Tools (Rear) 3

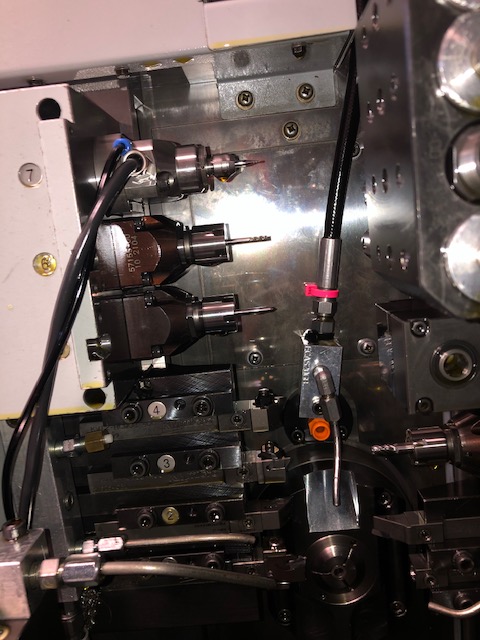

  • Tool Post (Front) Turning + Power Driven

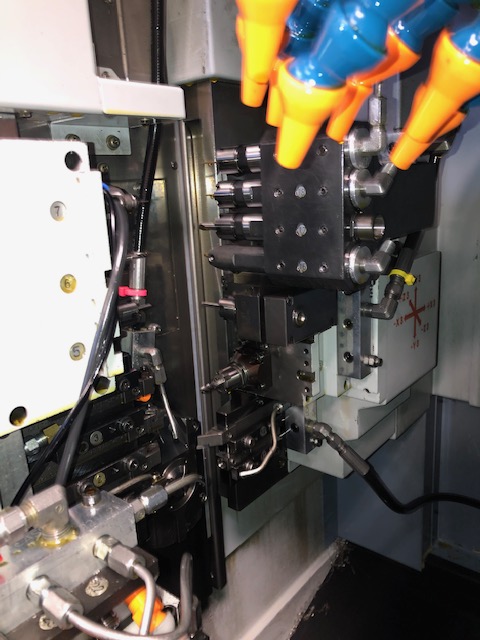

  • Tool Post (Rear) Turning + End Working + Power Driven

Product Features

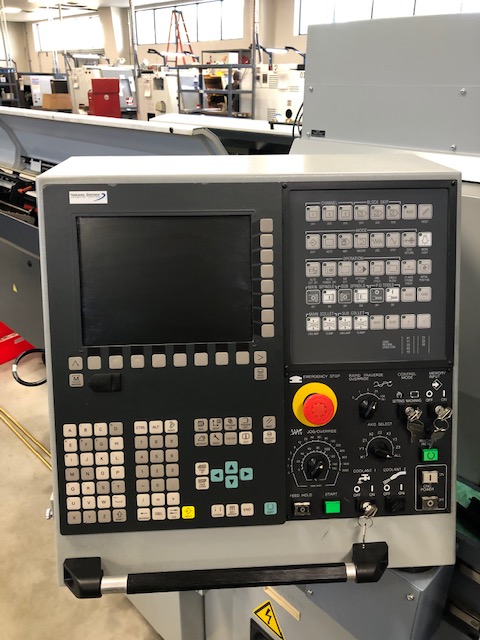

  • Siemens 840D CNC Control
  • LNS Hydrobar Express 220 Barfeed

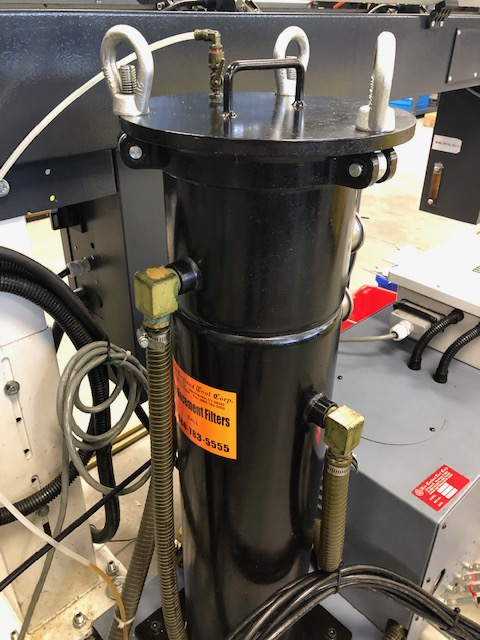

  • Coolant Filtration

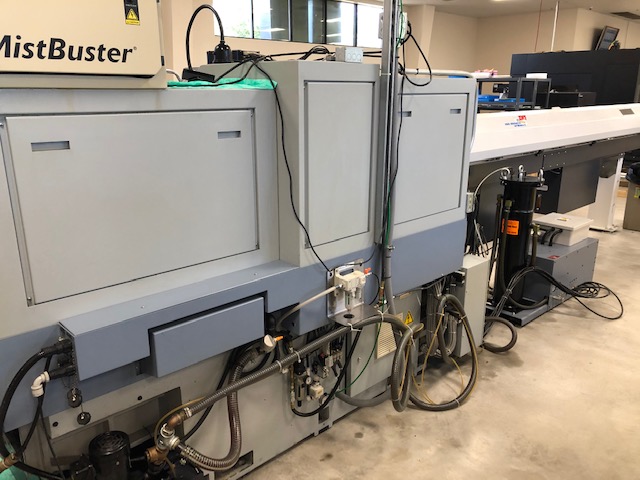

  • MistBuster Mist Collector
  • Workpiece Conveyor
  • STAR Magic Bushing
  • Guide Bushing Sets: 20mm, 1/4in, 3/8in, 5/16, 5/8, 3/4in
  • 10-Axis Design
  • Independent Front and Backworking
  • 2-Tool Turning Simultaneous Operations
  • Star Motion Control System
  • Automatic Centralized Lubrication Unit
  • Parts Ejection Detector
