< Back to Lathes
Special Item

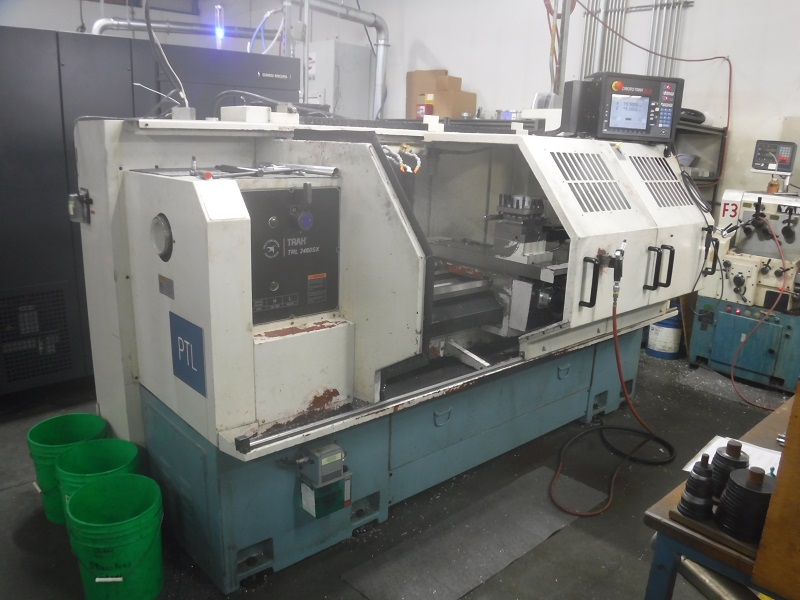

2011 PROTOTRAK TRL-2460SX

ProtoTRAK SLX, 4" Bore, 24" Swing, 60" Length, 12" Chuck, 15 HP, 1800 RPM, 4 Tool Turret, Manual Chuck, Tailstock, Steady Rest
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Swing Over Bed / Carriage 24" / 14.5"
  • Spindle Motor 15 HP
  • Spindle Speed Range (RPM) 40-670 / 100-1800
  • Spindle Nose D1-8
  • Spindle Bore 4.09"
  • Rapid Traverse Rates (X / Z) 240 IPM
  • X-Axis Travel 12.5"
  • Machine Dimensions (L x D x H) 112" x 52" x 62"
  • Machine Weight 5700 lbs.
  • Bed Width 15.5"
  • Distance Between Centers 60"
  • Number of Speed Ranges 2
  • Spindle Taper MT #8
  • Tailstock Taper MT #5

Product Features

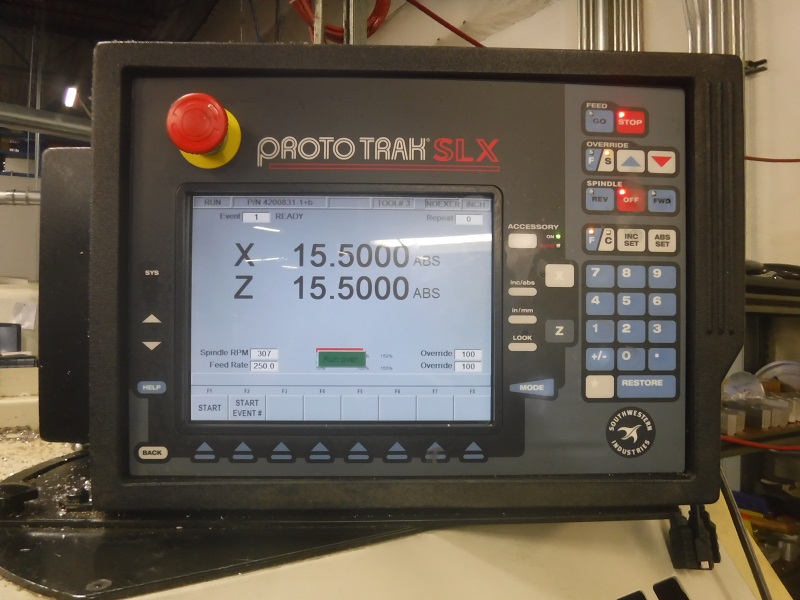

  • ProtoTRAK SLX CNC Control
  • 10.4" Color CRT
  • 2-Axis Manual, Teach & CNC Modes
  • 2-Axis Digital Readout
  • 256 MB Ram
  • 128 MB USB Thumb Drive Flash Memory
  • (2) USB Ports
  • Ethernet Card & RJ45 Interface
  • TEAC Floppy Disc Drive

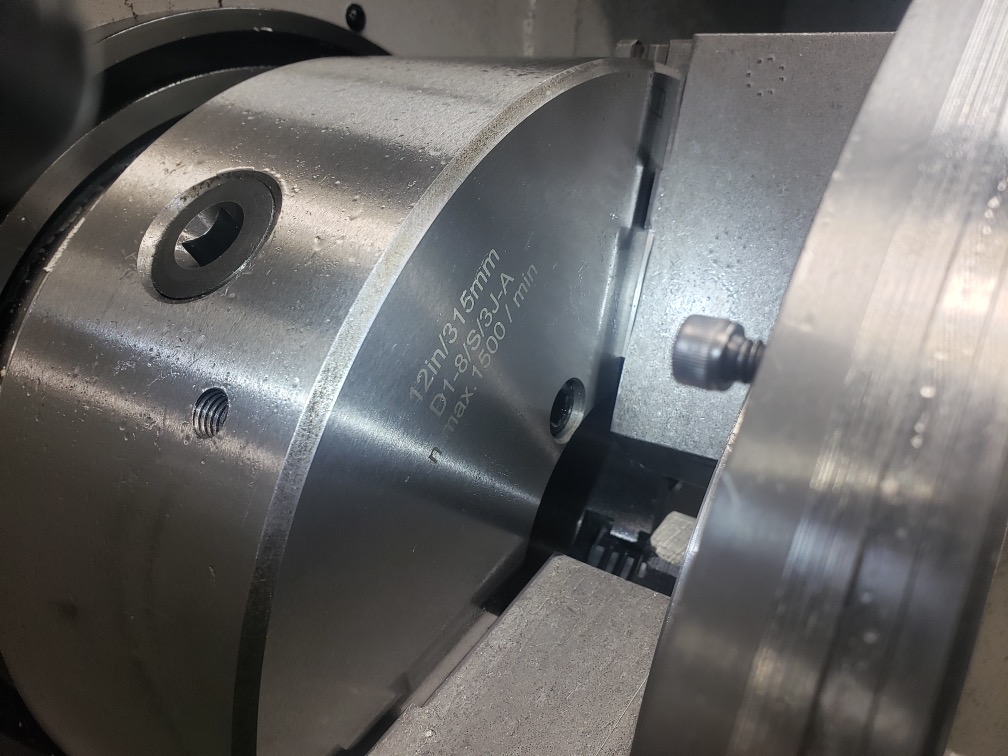

  • 12" Gator D1-8/S/3J-A Manual 3-Jaw Chuck
  • (4) Position Auto Index Turret
  • Manual Tailstock
  • Manual Steady Rest
  • Override of Program Feedrate & Spindle Speed
  • Windows Operating System
  • Color Graphics with Selectable Views
  • Inch/Metric Selectable
  • Programmable Spindle Speeds
  • Constant Surface Speed
