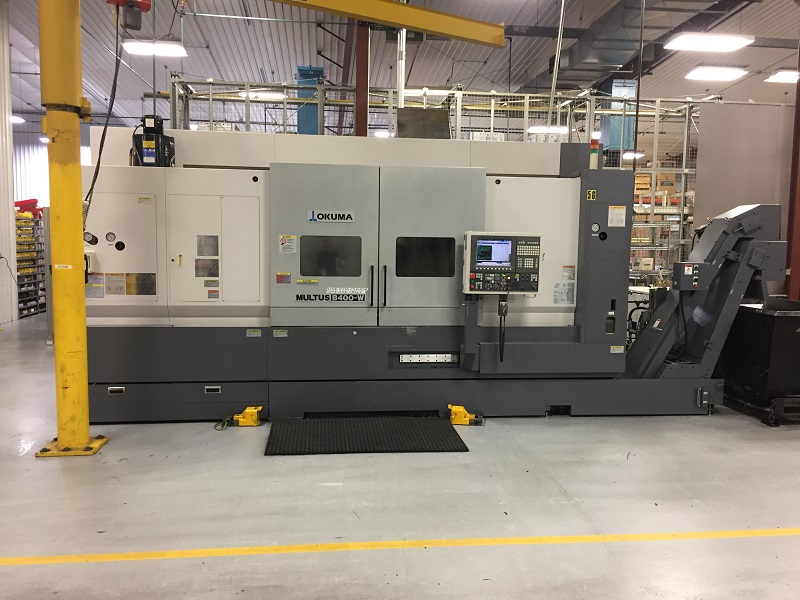

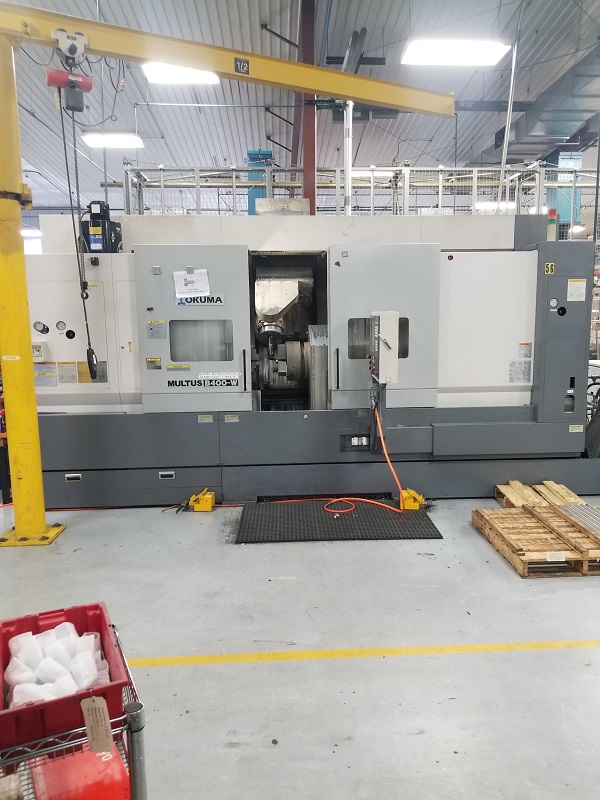

2011 OKUMA MULTUS B400/1500BBW

OSP-P200L, 4" Bar, (2) 15" Chucks, 30 HP, 2800 RPM, 40 Tools, Y & B-Axis, Through Spindle Coolant, Chip Conveyor, Probe, Tool Presetter
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 15"
  • Max Diameter Bar Capacity (L&R) 4.01"
  • Max Swing Over Bed / Carriage 27.95" / 27.95"
  • Max Machining Length 59.06"
  • Spindle Motor 30 / 20 HP
  • Spindle Nose A2-11
  • Spindle Bore 4.33"
  • Tools 40
  • Milling Motor 19 / 13 HP
  • Milling Speed 50 - 6000 RPM
  • Sub Spindle Index 0.001 Degrees
  • Sub Spindle Motor 22 / 15 HP
  • Sub Spindle Speed 38 - 3800 RPM
  • Rapid Traverse Rates (X&Z / Y /W) 1574 / 1024 / 787 IPM
  • X-Axis Travel 27.17"
  • Z-Axis Travel 60.83"
  • Y-Axis Travel +/- 4.53""
  • C-Axis Index 0.001 Degrees
  • B-Axis Index 0.001 Degrees
  • B-Axis Swivel 225 Degrees
  • Machine Dimensions (L x W x H) 226.4" x 104.7" x 118.2"
  • Machine Weight 34,000 lbs.
  • Distance Between Spindles 60.83"
  • Max Tool Diameter 3.54" / 5.12"
  • Max Tool Length 15.75"
  • Max Tool Weight 22 lbs.
  • Max Turning Diameter 26.37"
  • W-Axis Travel (Sub Spindle) 61.02"

Product Features

  • OKUMA OSP-200L CNC Control
  • 15" Color TFT
  • USB & PNC 3 Ports

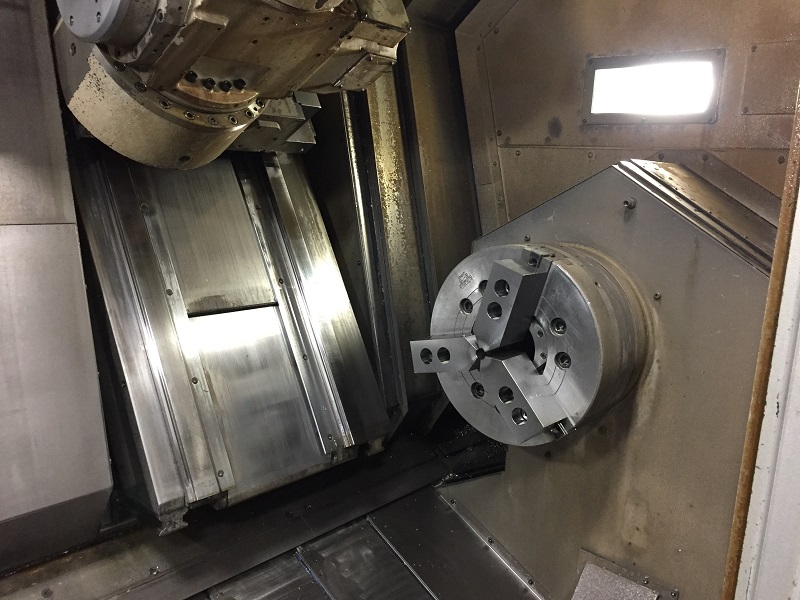

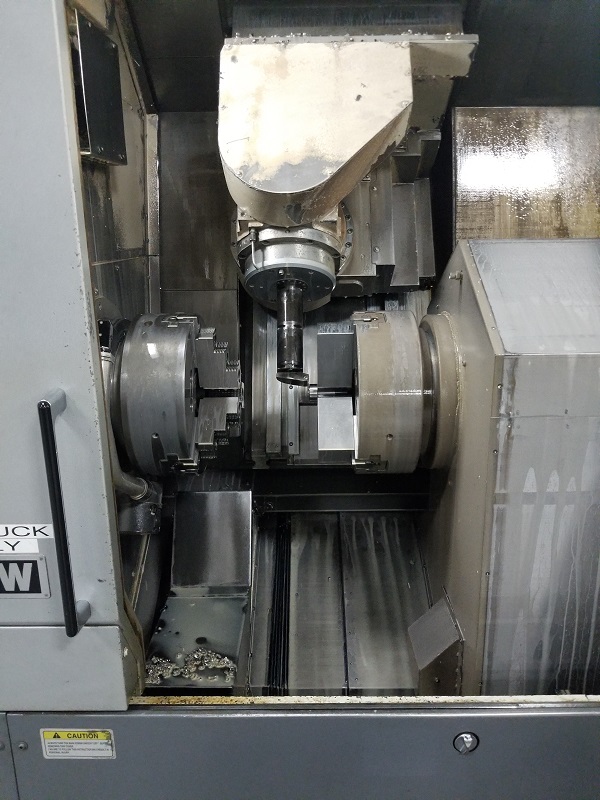

  • Twin Opposed Spindles with Upper Tool Spindle (B-Axis)
  • NC B-Axis Contouring on Upper Tool Spindle (.001 Degrees)
  • 4" Bar Capacity Big Bore A2-11 Option on Both Spindles

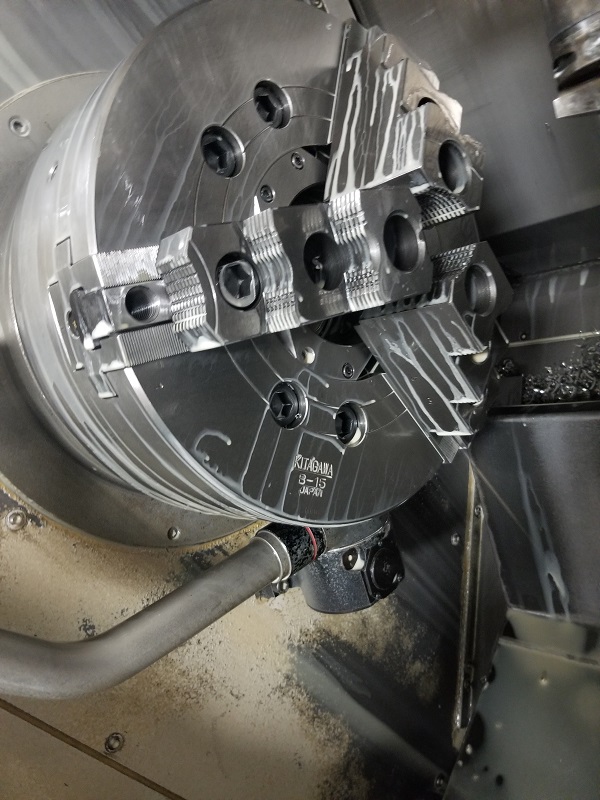

  • 15" Kitagawa B15 Hydraulic Chucks on Both Spindles

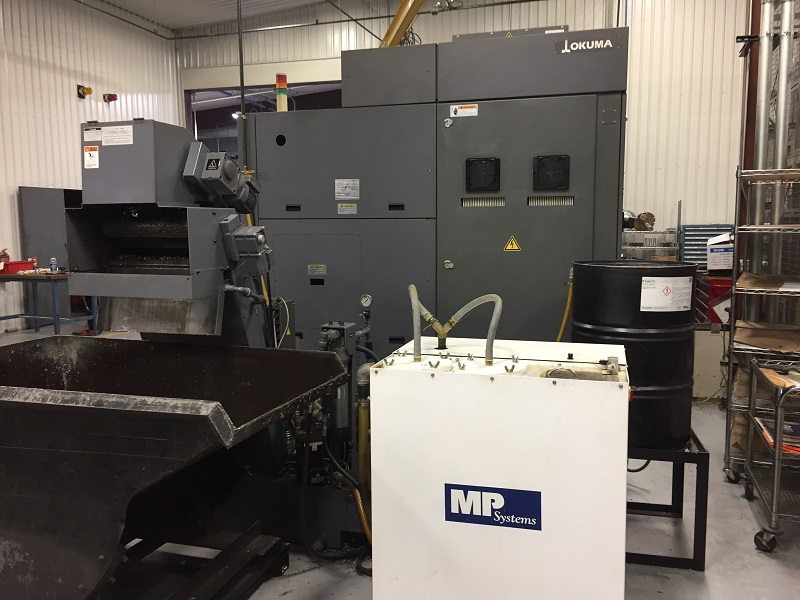

  • MP Systems Through Spindle High Pressure Coolant (RF8, 1000 psi)

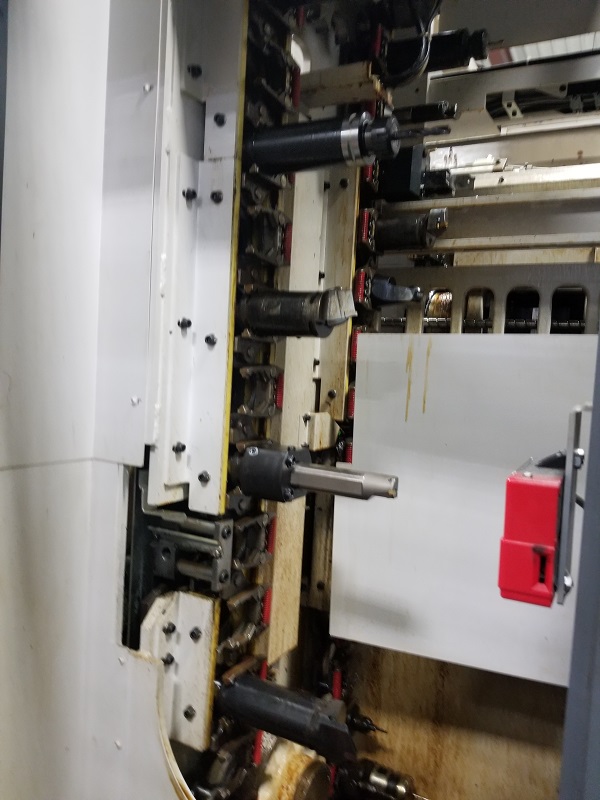

  • 40 Tool Magazine (CAPTO C6)

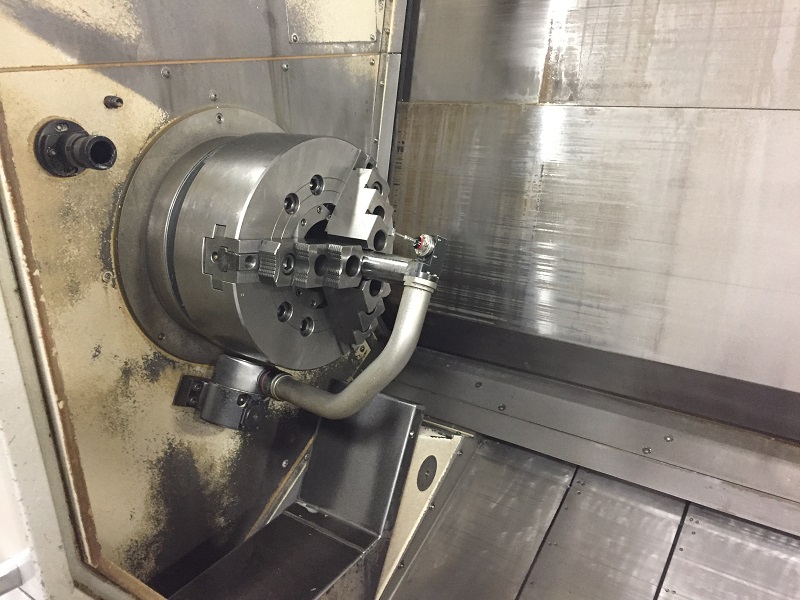

  • Touchsetter A (Automatic Tool Presetter)
  • Auto Gauging Renishaw RMP60 Touch Probe
  • Y-Axis Gauging
  • Synchronized Tapping
  • Double Decker Chip Conveyor (Side Exit Hinge Type)
  • Remote Jog Handle
  • Three Color Tower Light
  • (2) Sets of Spare M-Codes
  • Rapid Traverse Override Switch
  • Variable Spindle Speed Threading (Main or Second Spindle)
  • Steady Rest Full Prep LNS 4K
  • Negative Tool Radius Compensation
  • Z-Axis Auto Zero Offset Function
  • Through Spindle Coolant Type B
  • Manufacture Date October 2011
  • 8394 Running Time
  • 7872 Operating Time
  • 6443 Cutting Time
  • 6299 In-Process Setup
  • 3656 Spindle Revolution Time
