2011 OKAMOTO ACC32.80EX CNC SURFACE GRINDER

80" x 32" Grind Capacity, Electro Magnetic Chuck, SBS Wheel Dresser, Coolant System
Talk to a representative today!
(803) 548-8000

Product Details

  • Cross Feed Continuous Rate 1 - 16 FPM
  • Cross Feed Increment Range 0.2" - 1.4"
  • Grinding Capacity Length 80"
  • Grinding Capacity Width 32"
  • Hand Feed Per Revolution (Cross) 0.2 IPR
  • Hand Feed Per Revolution (Longitudinal) 1"
  • Handfeed Dial Graduations (Cross) 0.001"
  • Table Hydraulic Feed 6 - 82 FPM
  • Table to Grinding Wheel 27.3"
  • Wheel Dimensions (OD x Width) 20" x 4"
  • Wheel Head Auto Feed per Table Stroke .00005 - .00295"
  • Wheel Head Rapid Traverse (Vertical) 1.2 FPM
  • X-Axis Travel 89"
  • Y-Axis Travel 34"

Product Features

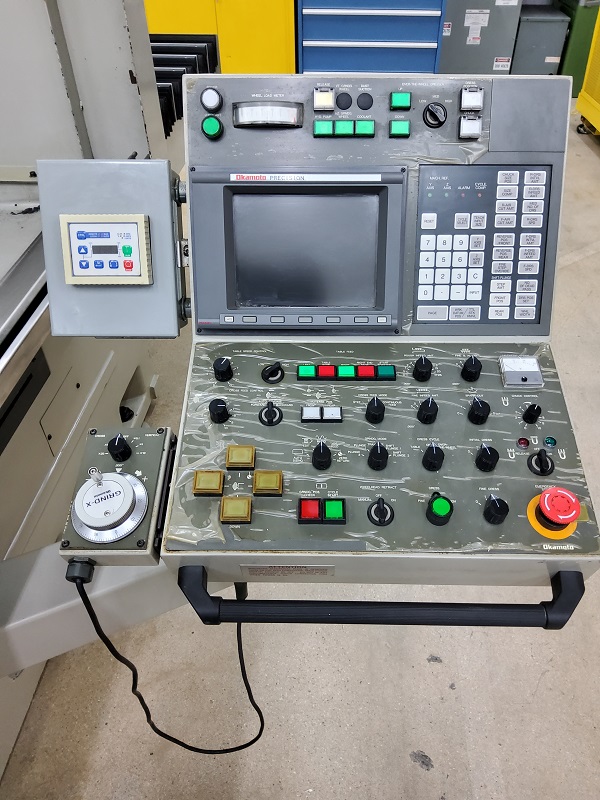

  • 10.4" Monochrome LCD

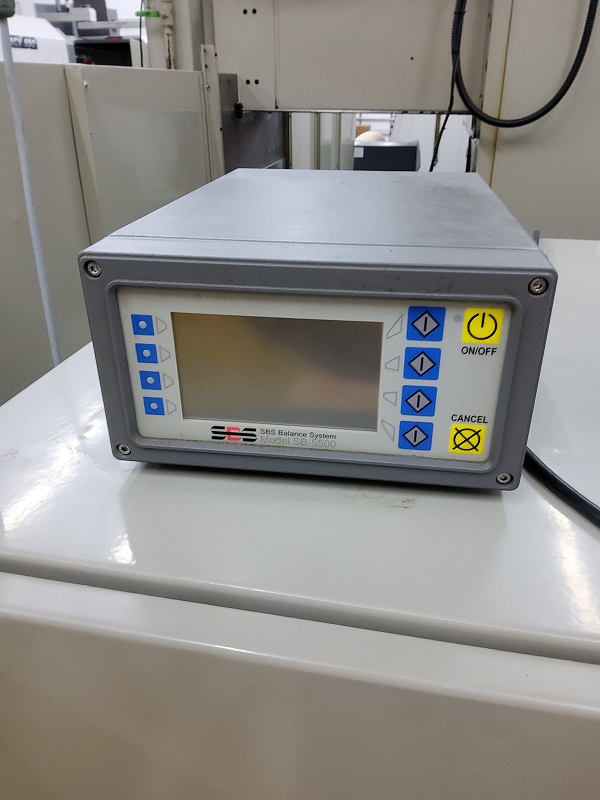

  • SBS SB-5500 Balancing Control
  • Wheel Dresser
  • Remote Jog Handle

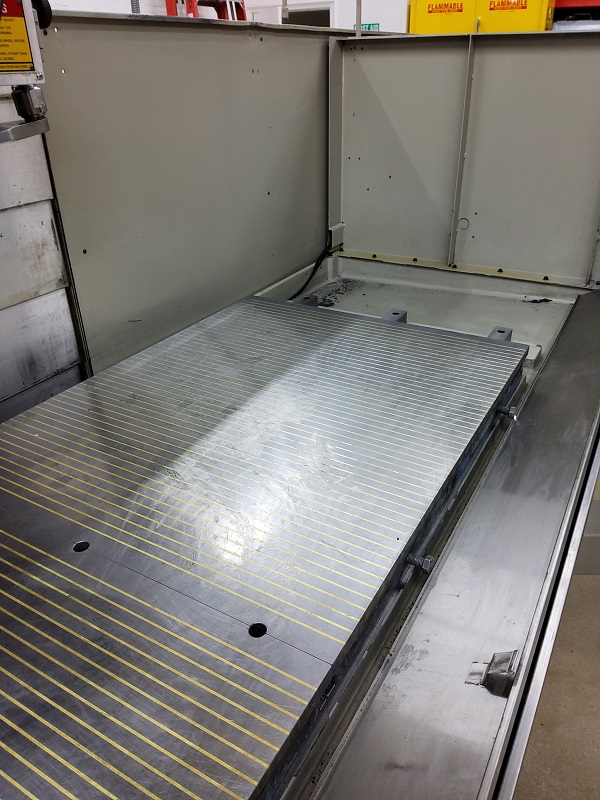

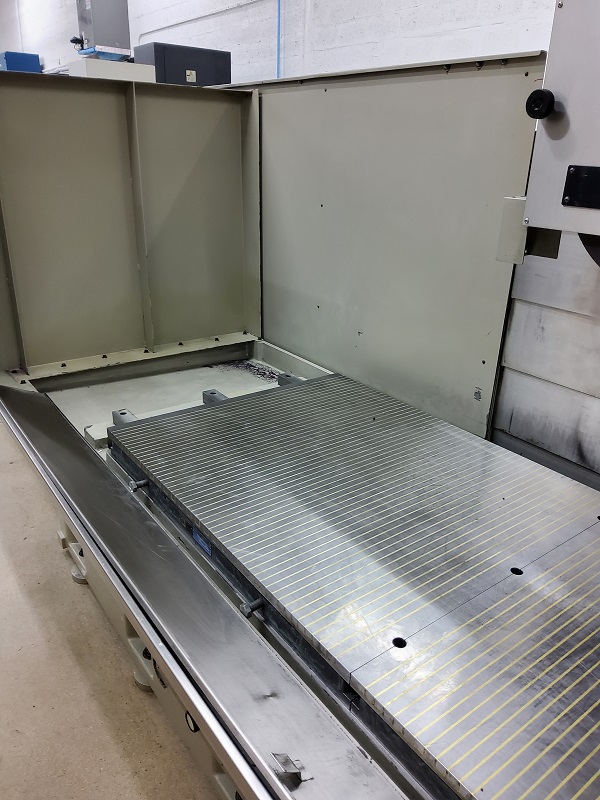

  • Electro-Magnetic Chuck

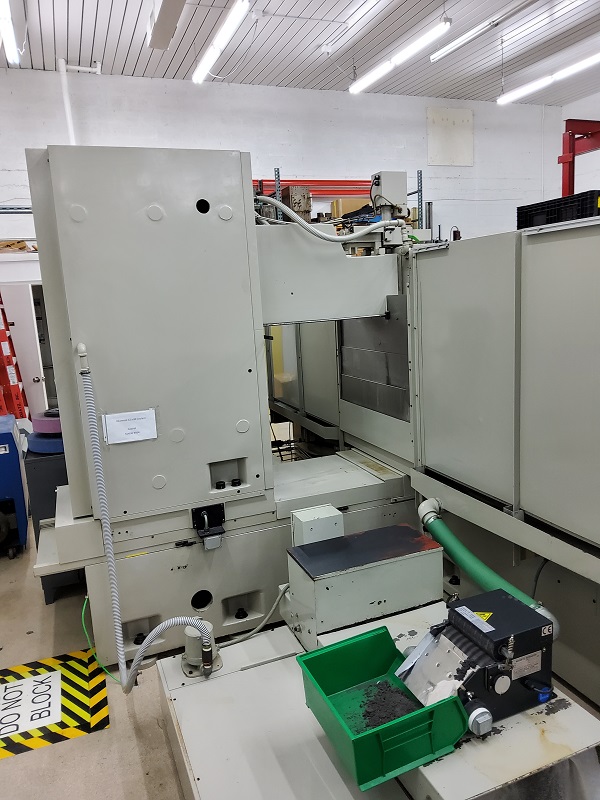

  • Coolant System with Filtration
