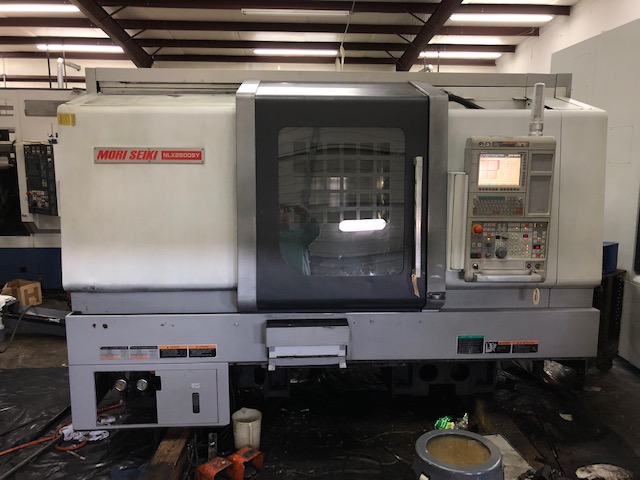

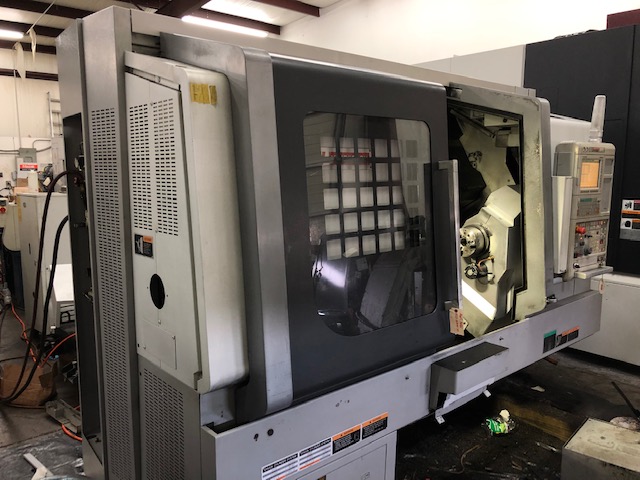

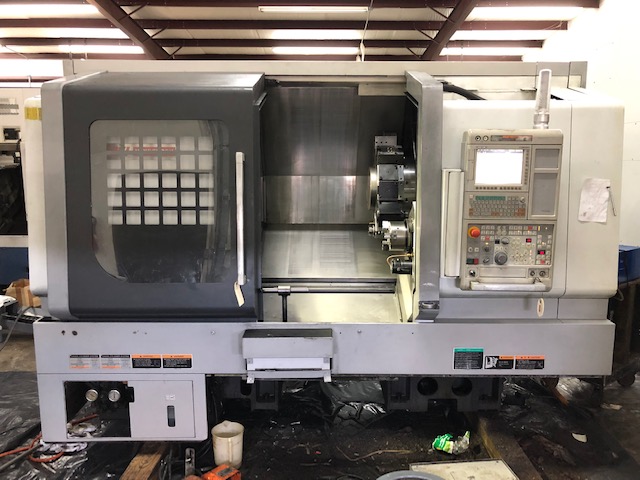

2011 MORI SEIKI NLX-2500SY/700

Moric MSX-853IV, 3.1" Bar, 10" Chuck, 25 HP, 4000 RPM, 12 Tools, C & Y-Axis Milling, Tool Presetter, APC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed / Carriage / Front Cover 36.2" / 29.2" / 23.6"
  • Turning Diameter (Max / Std) 14.4" / 10.6"
  • Max Machining Length 27.7"
  • Spindle Motor 25 / 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12
  • Milling Motor 7.5 HP
  • Milling Speed 6000 RPM
  • Sub Spindle Chuck Size 6"
  • Sub Spindle Motor 15 / 10 HP
  • Sub Spindle Nose A2-5
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 31.3"
  • Y-Axis Travel + / - 2.0"
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • Turret Index (Single Step) 0.27 Seconds
  • Machine Dimensions (L x W x H) 156.3" x 81.7" x 86.1"
  • Machine Weight 13,000 lbs.
  • Spindle Torque 522.9 ft. lbs.

Product Features

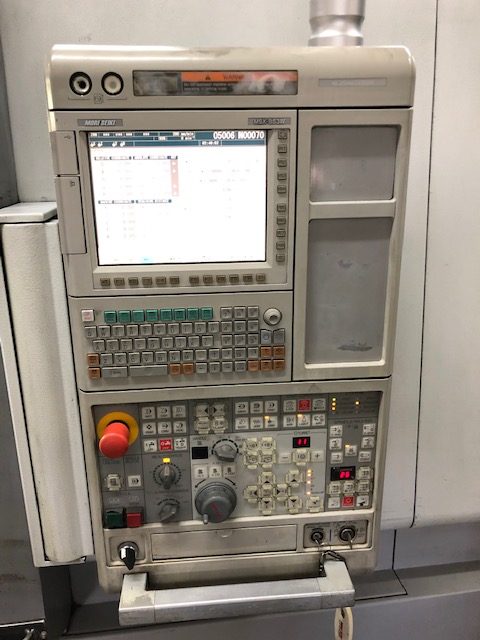

  • MORIC MSX-853IV CNC CONTROL
  • 10.4" Color TFT
  • MAPPS IV Programming
  • C & Y-Axis Milling Capability
  • Servo Driven Sub Spindle
  • PC/MCIA Interface
  • USB Port

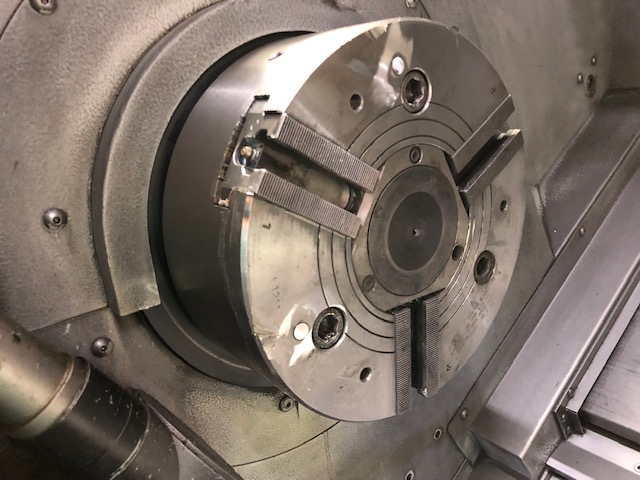

  • 10" Kitagawa BB-210 Hydraulic Chuck on Main Spindle
  • 6" Kitagawa B-206 Hydraulic Chuck on Sub Spindle
  • Integral Built-In Milling Spindle Motor

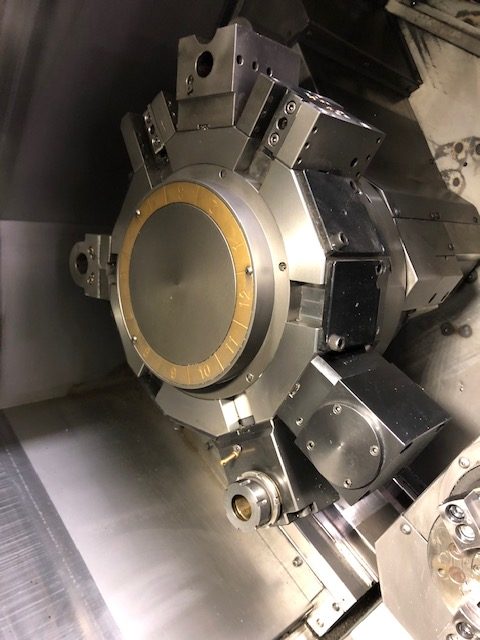

  • Servo Driven Turret
  • Automatic Tool Presetter
  • Auto Parts Catcher
  • LNS Chip Conveyor (Side Exit)
  • Color Tower Light
  • (2) Face Live Holders
  • (2) Turning Holders
  • (1) Boring Bar Holder
  • (1) Double Boring Bar Holder
  • Manufacture Date March 2011
