Special Item

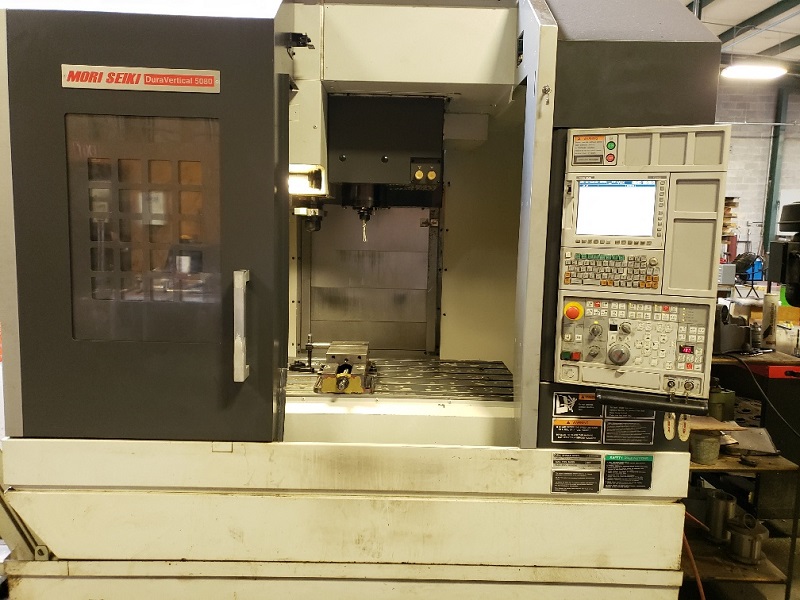

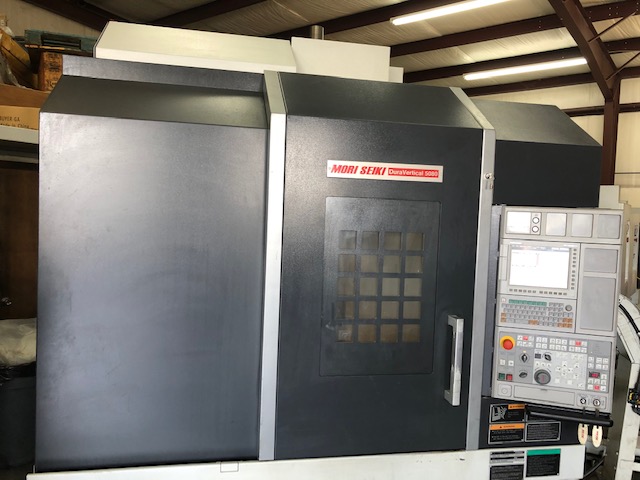

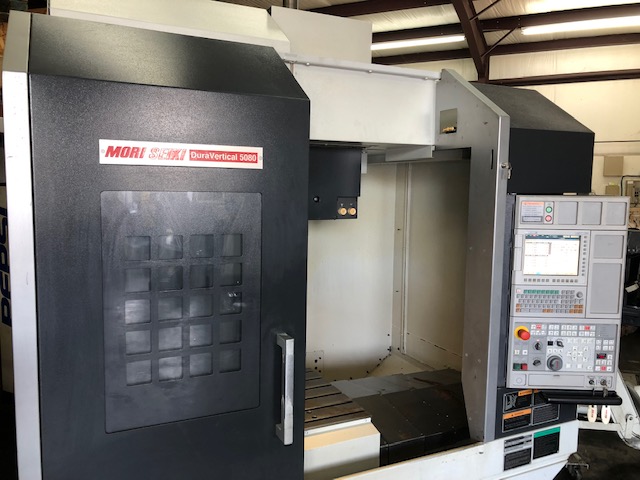

2012 MORI SEIKI DuraVertical 5080

Fanuc 0iMD, 31.21.20", 10000 RPM, 30 SMTC, 20 HP, Cat 40, Chip Conveyor, Rigid Tapping
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 31.5"
  • Y-Axis 20.9"
  • Z-Axis 20.1"

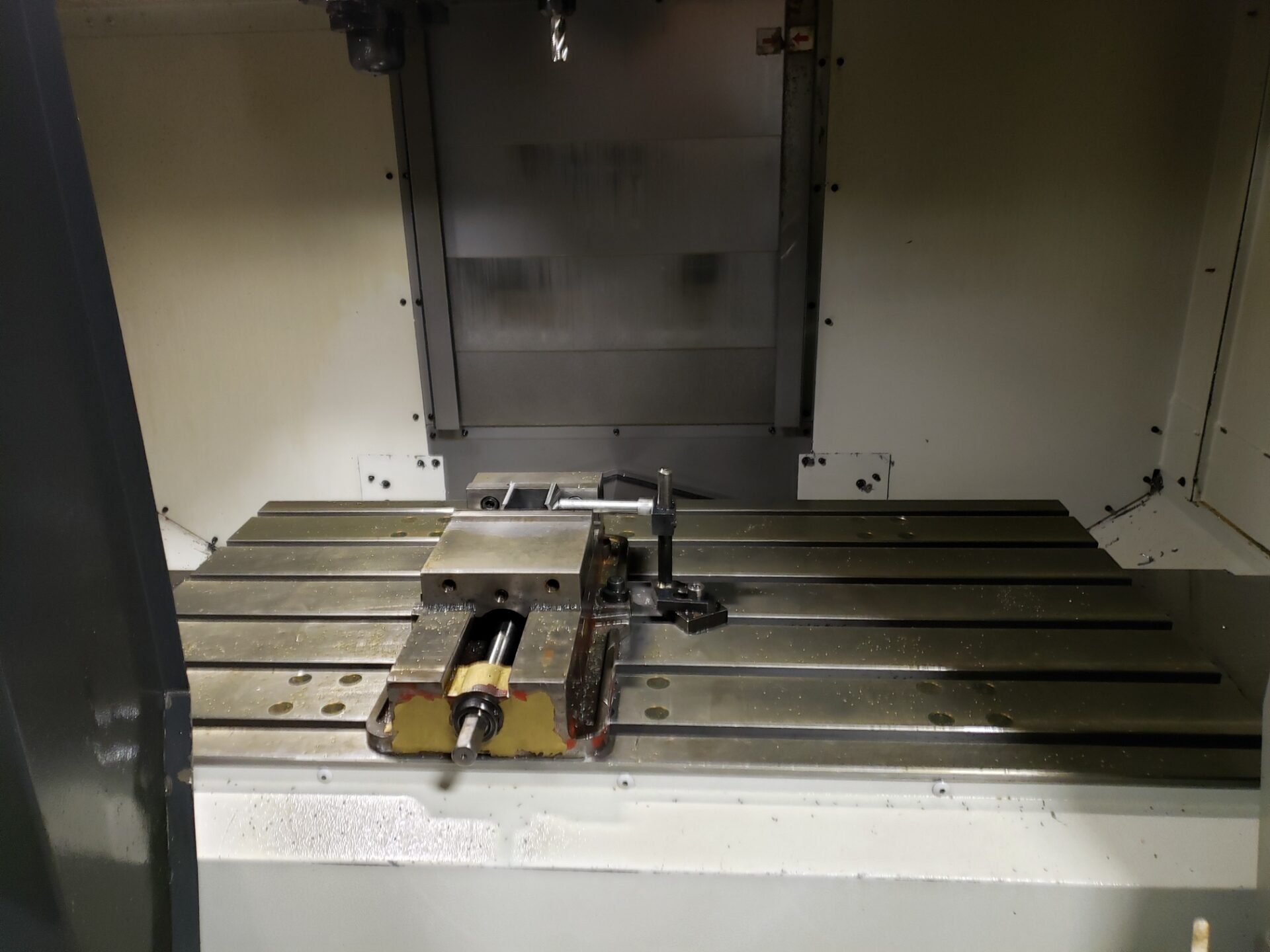

  • Table Size 43.3" x 23.6"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 17.3 / 15 HP
  • Tools 30
  • Table Load Capacity 1760 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1417 / 787 IPM
  • Max Tool Diameter 3.1" / 4.92"
  • Max Tool Length 11.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 85.8" x 94.5" x 105.3"
  • Machine Weight 13,000 lbs.
  • Spindle Nose to Table Top 5.9" - 26"
  • Tool Change Time (T- T / C -C) 1.5 / 3.8 Seconds

Product Features

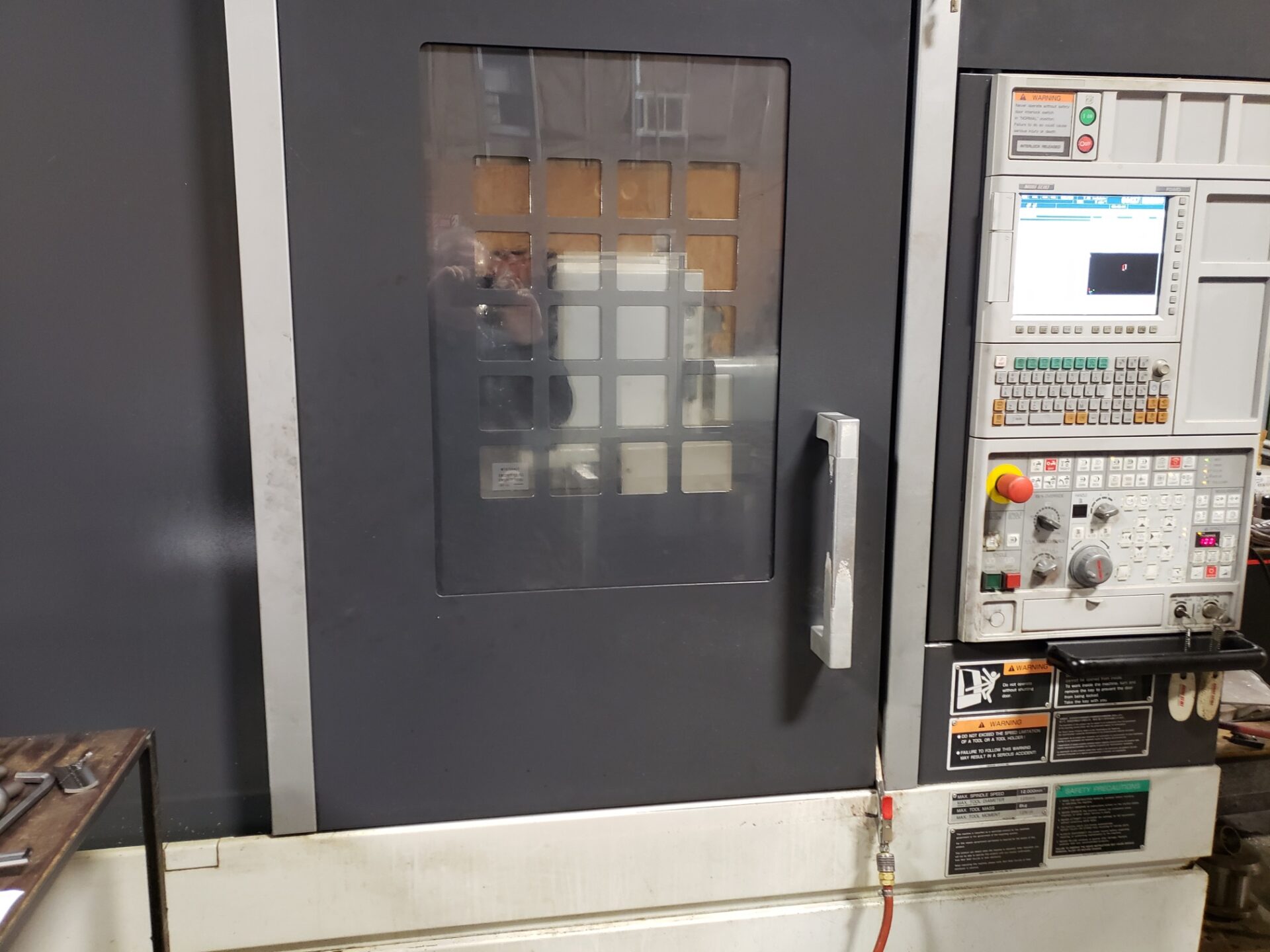

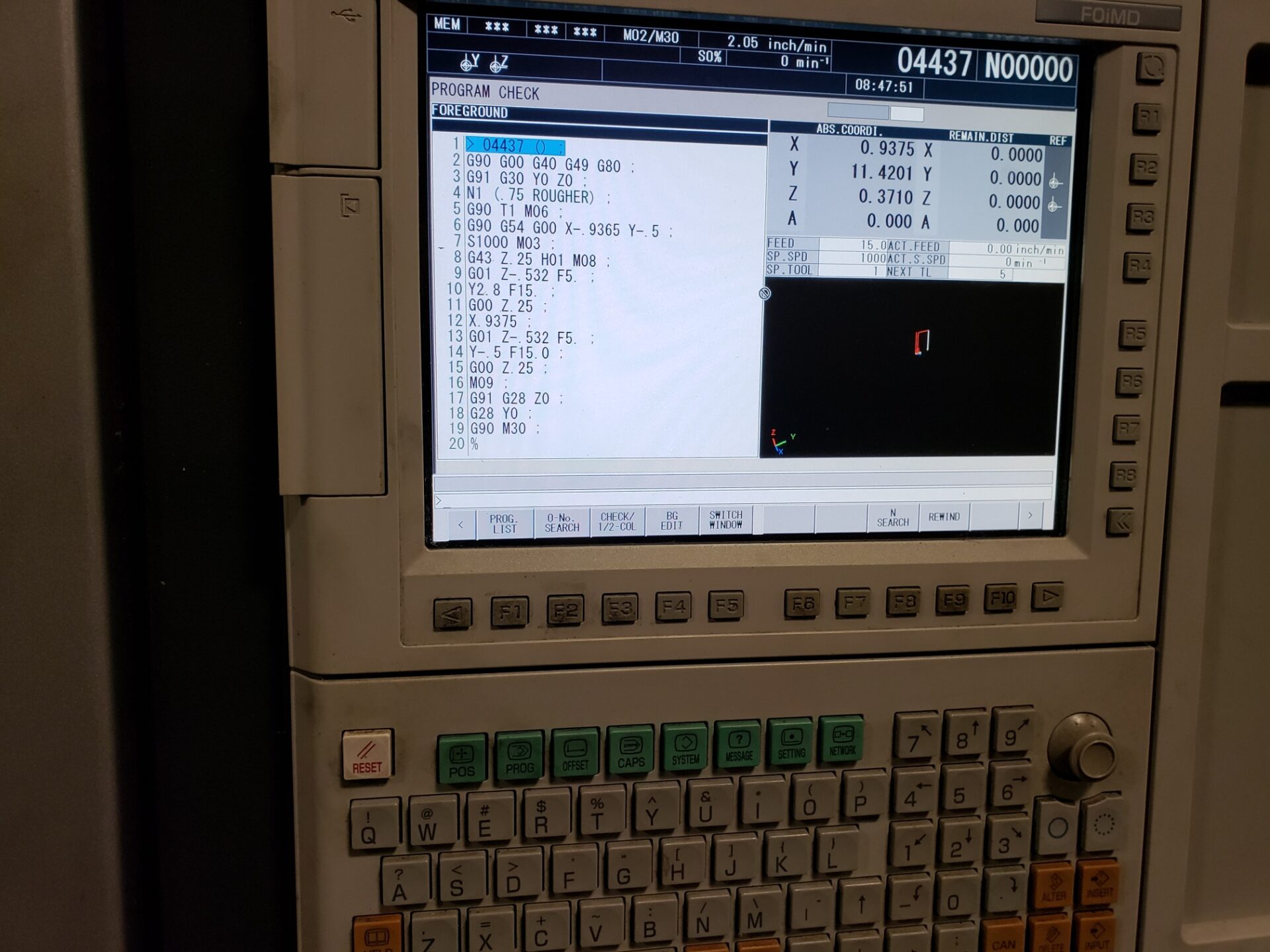

  • MORIC MSX-504 (FANUC 0iMD) CNC CONTROL
  • 10.4" Color LCD
  • PC / MCIA Interface
  • USB Port
  • MAPPS III Conversational Programming
  • Through Spindle Coolant Interface
  • 12000 RPM Spindle Speed
  • Rigid Tapping
  • Helical Interpolation
  • LNS Turbo HB Chip Conveyor (Hinge-Type Left Side Exit)

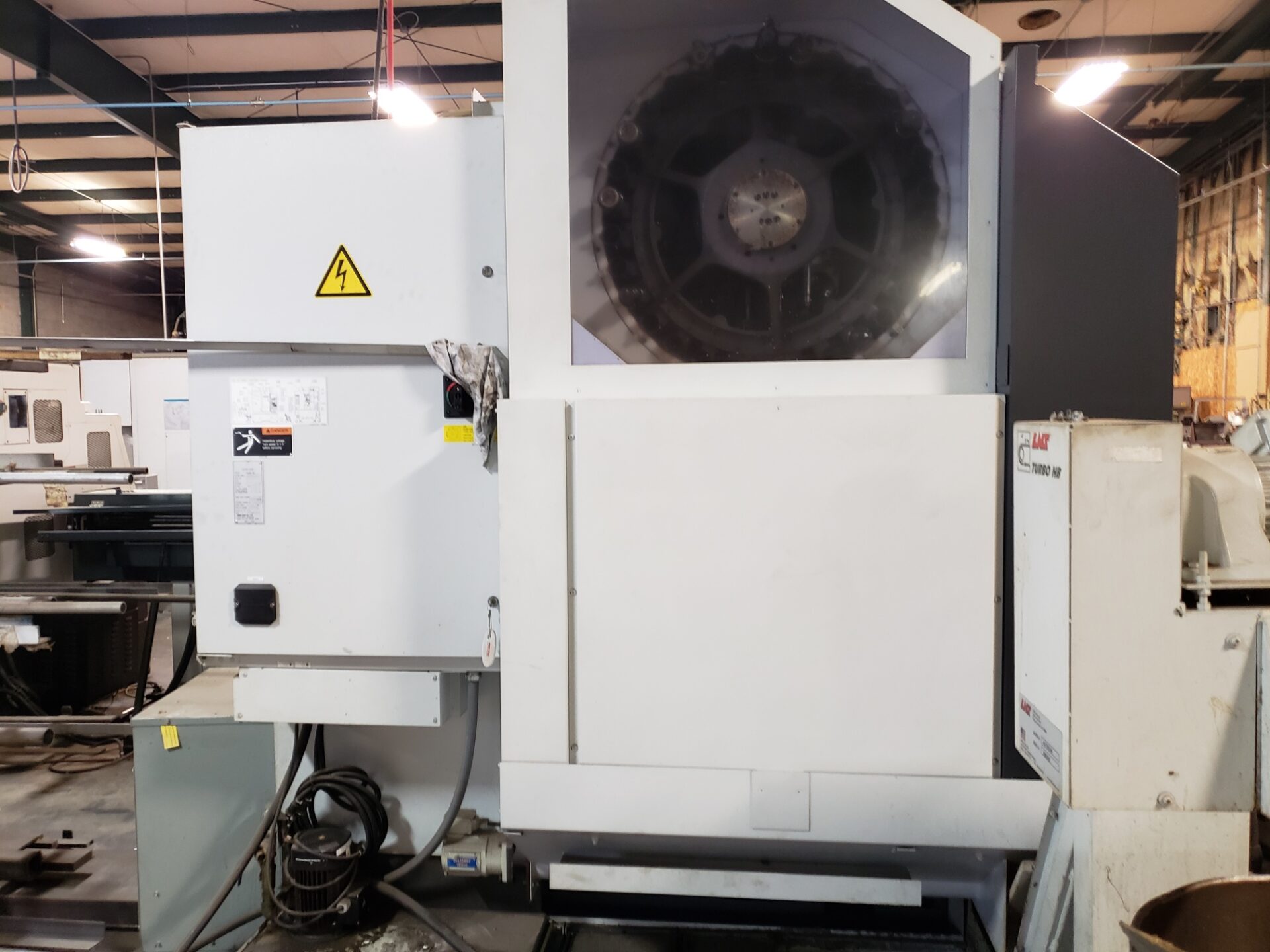

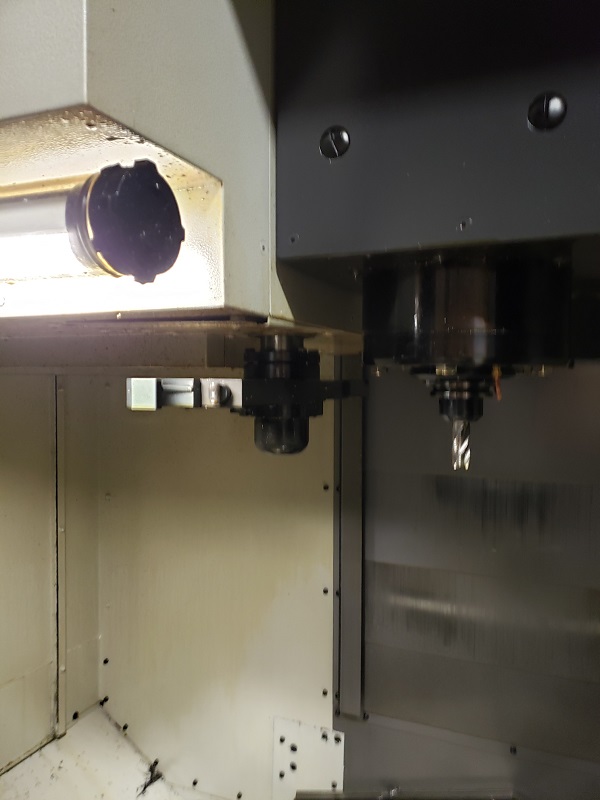

  • 30 Position Side Mount Tool Changer
  • Manufacture Date October 2011
  • Installed in 2012
  • 10,010 Power On Time
  • 2888 Operation Time
  • 2689 Cutting Time
