Special Item

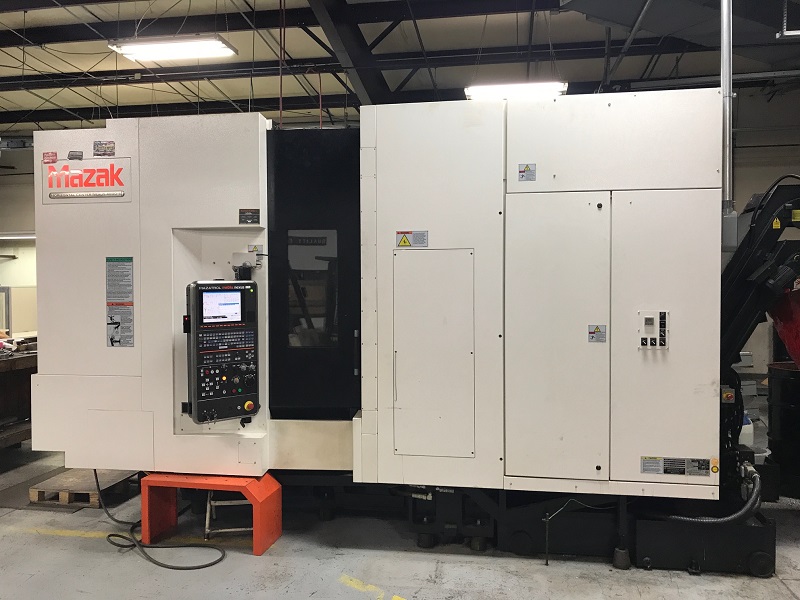

2011 MAZAK NEXUS HCN-4000II

Matrix, 15.75" Plts, 22.25.25", 18000 RPM, 1 Degree, Cat 40, 120 Tools, TSC, Probe, ATLM, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Change Time 6 Seconds
  • Pallet Load Capacity 882 lbs.
  • Pallet Size 15.75" (2)
  • X-Axis 22.05"
  • Y-Axis 24.8"
  • Z-Axis 25.2"
  • Pallet Index 1 Degree
  • Spindle Speed 18,000
  • Spindle Speed 20 - 18,000
  • Spindle Taper Cat 40
  • Spindle Motor 40 / 33.5 HP
  • Spindle Center to Pallet Top 3.15" - 27.95"
  • Spindle Nose to Pallet Center 2.76" - 27.96"
  • Tools 120
  • Rapid Traverse Rates 2362 IPM
  • Tool Change Time (C - C) 2.7 Seconds
  • Max Tool Diameter 3.74" / 5.9"
  • Max Tool Length 16.53"
  • Max Tool Weight 26 lbs.
  • Max Workpiece Dia / Height 35.43" / 24.8"
  • Machine Dimensions (L x W x H) 208.8" x 85" x 109.9"
  • Machine Weight 20,000

Product Features

  • MAZATROL MATRIX NEXUS CNC CONTROL
  • 15" Color TFT
  • Conversational Programming
  • EIA / ISO Input Function
  • 1 MB Memory
  • USB Port
  • PC/MCIA Interface
  • One Degree Index

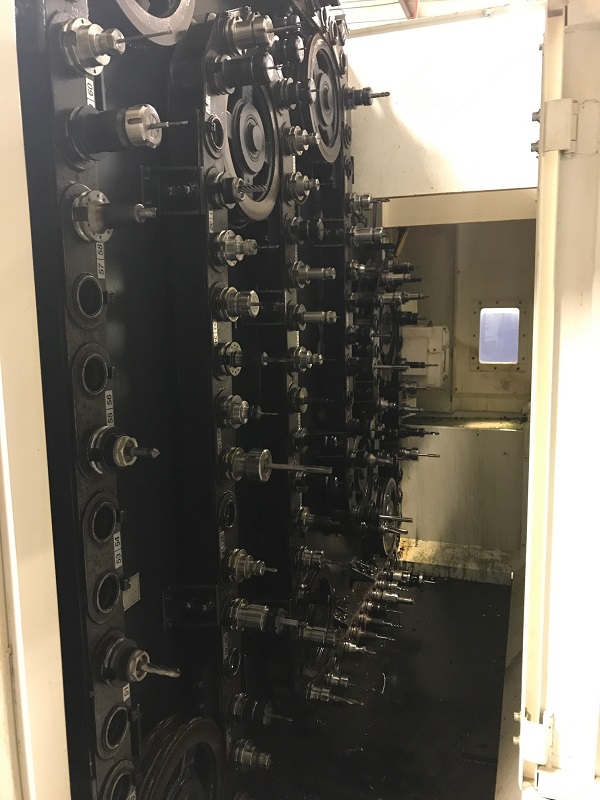

  • 120 Tool Magazine
  • 18,000 RPM Spindle Speed
  • Mayfran Consep 2000 Microfine Chip Conveyor (Rear Exit)
  • Coolant Thru Spindle (1000 psi Mazak Super Flow 1)
  • Mazacc 3-D High Speed Software
  • Mazacc 2-D Software (Shape Compensation)
  • Renishaw OMP-60 Touch Probe
  • 8 MB Max Program Size
  • Workpiece Air Blast
  • Automatic Tool Length Measurement
  • Niagara Flood Coolant
  • Spindle Chiller Unit
  • Drilled / Tapped Pallet
  • Spiral Interpolation
  • EIA 3D Compensation
  • Rotation & Geometric Scaling
  • Shape Compensation
  • Inverse Time Feed
  • Polar Coordinates Input
  • Comparison Stop
  • Rigid Tapping
  • Inch/Metric Conversion
  • 600 Slope Constant
  • 600 Sets of Common Variables
  • EIA Helical Tap Cycle
  • EIA Pattern Cycle
  • Tilted Work Plane
  • Manufacture Date July 2011
