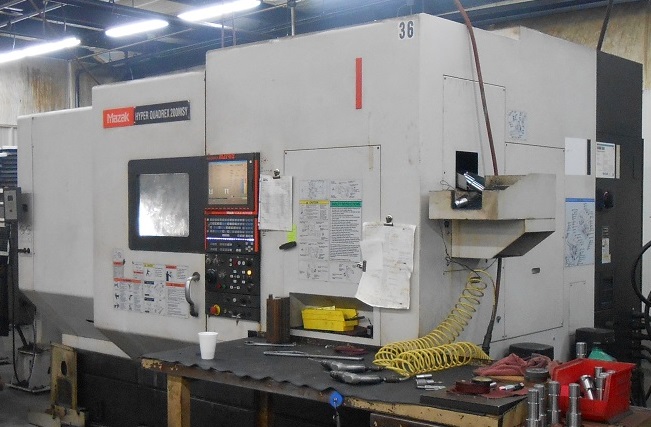

2011 MAZAK HYPER QUADREX 200MSY

Mazatrol Matrix, 3.0" Bar, (2) Turrets with C & Y-Axis, 5000 RPM, 30HP, Live Tooling, LNS BF, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Swing Over Carriage 14.57"
  • Spindle Motor 30 HP
  • Spindle Speed 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.99"
  • Tools (Upper / Lower Turrets) 12 / 12
  • Milling Motor 7.5 HP
  • Milling Speed 6000 RPM
  • Rapid Traverse C-Axis 555 RPM
  • Rapid Traverse Rates X-Axis (Upper / Lower) 1181 / 945 IPM
  • Rapid Traverse Rates Y-Axis (Upper / Lower) 1024 / 787 IPM
  • X-Axis Travel (Upper / Lower Turrets) 8.2" / 5.5"
  • Z-Axis Travel (Upper / Lower Turrets) 29.8" / 32.1"
  • Y-Axis Travel (Upper / Lower) 4" / 2.75"
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • Machine Dimensions (L x W x H) 137.6" x 110.7" x 98"
  • Machine Weight 27,000 lbs.
  • Distance Between Spindles 33.86"
  • Max Diameter Bar Caacity 3"
  • Max Turning Diameter 13.54"

Product Features

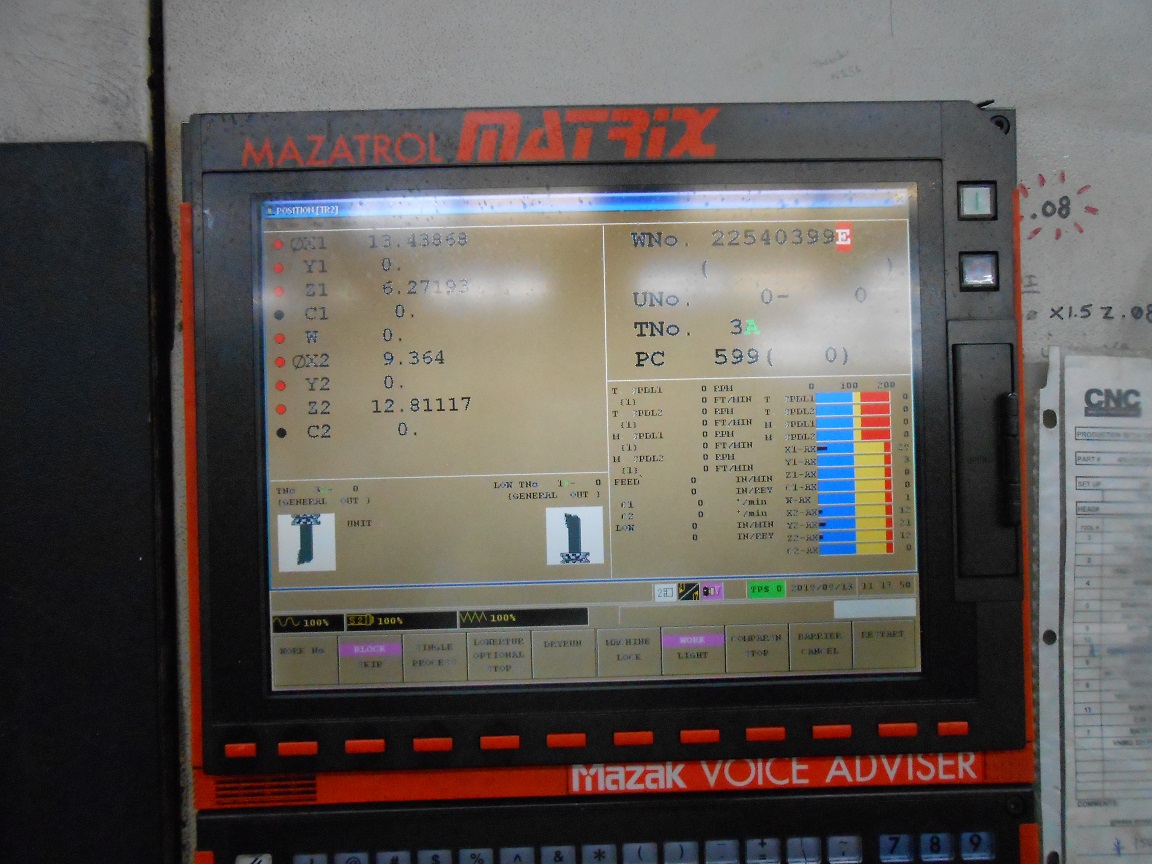

  • MAZATROL MATRIX CNC CONTROL
  • 15" Color TFT

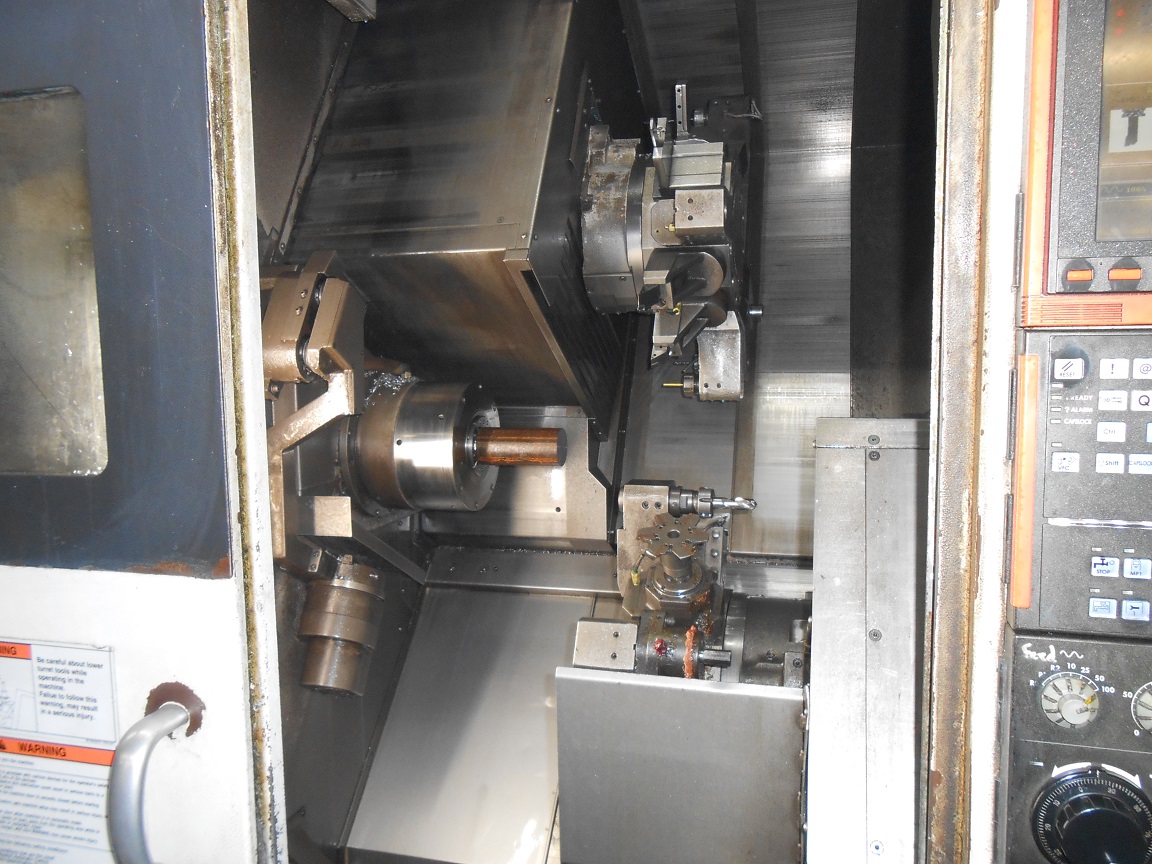

  • Twin Opposed Spindles
  • Upper & Lower Turrets
  • C & Y-Axis Milling Capability on Both Turrets
  • Conversational Programming
  • EIA/ISO Input Function
  • PC/MCIA Interface

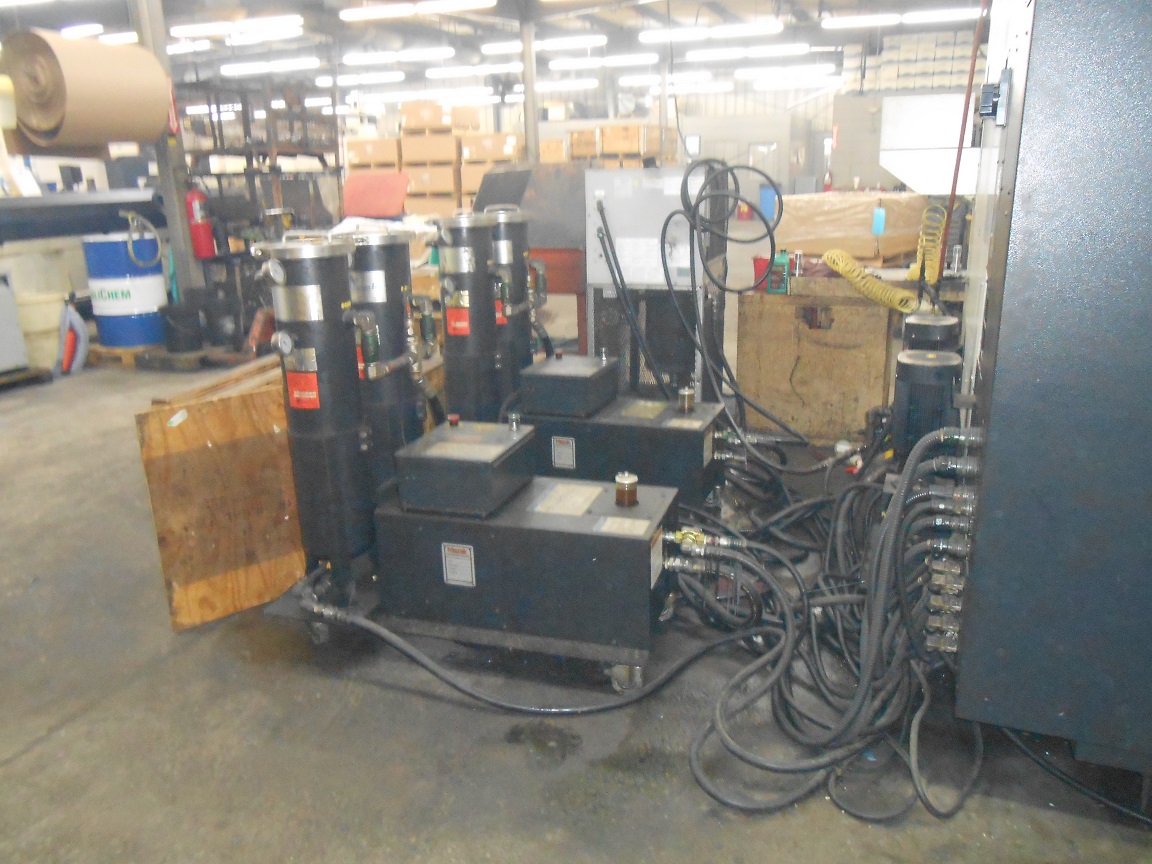

  • Mazak Super Flow T8 High Pressure Coolant (1000 PSI)
  • LNS Quick 6 Servo Short Magazine Barfeed
  • Mist Collector
  • Main Spindle Collet Chuck FB10-32A-SH S-30
  • Sub Spindle 8 Inch 3 Jaw Chuck
  • Programmable Tool Eye (L & R)

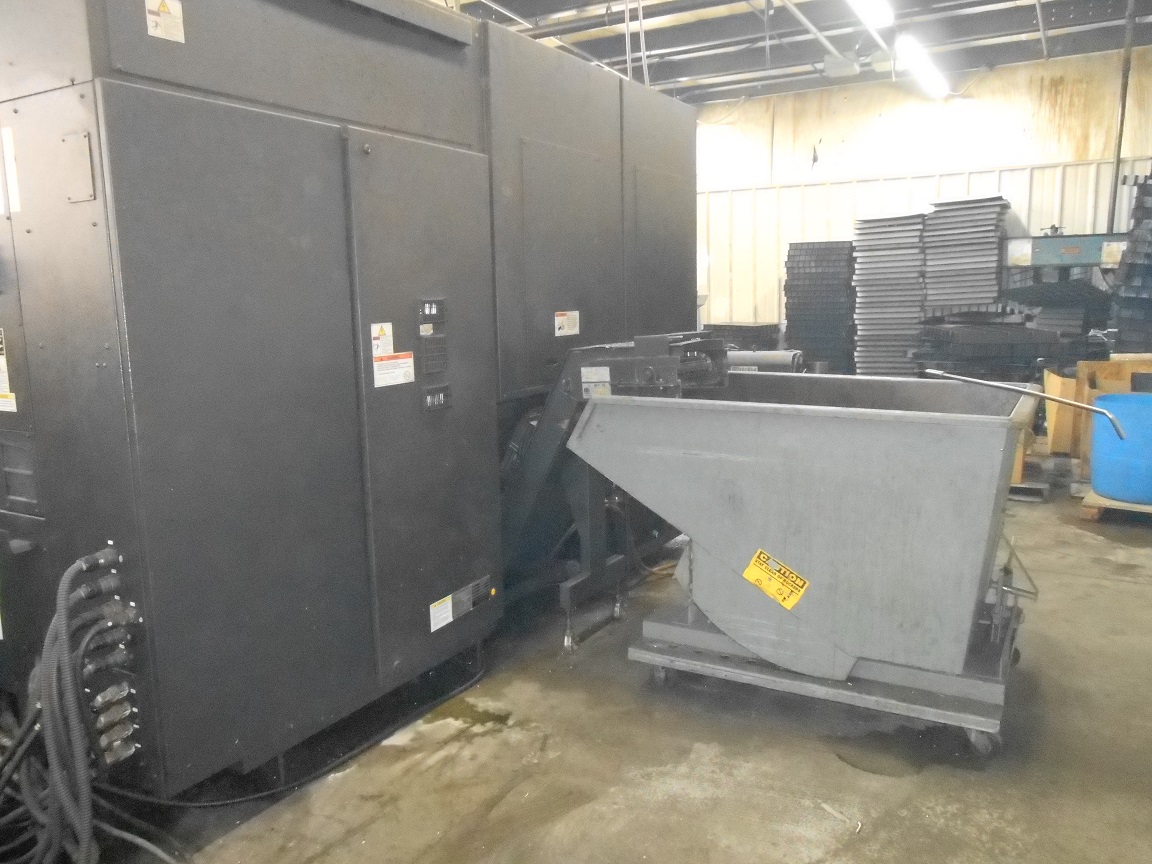

  • Chip Conveyor (Rear Exit)
  • Spindle Chiller Unit
