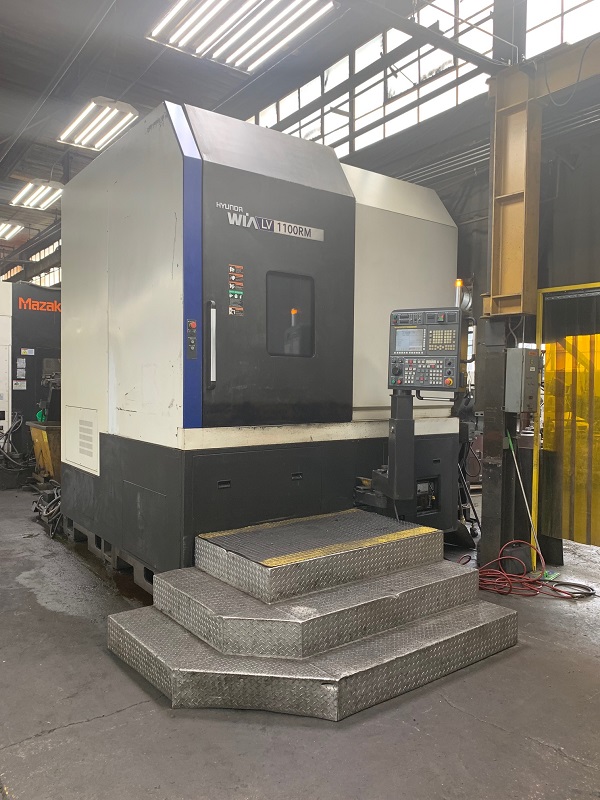

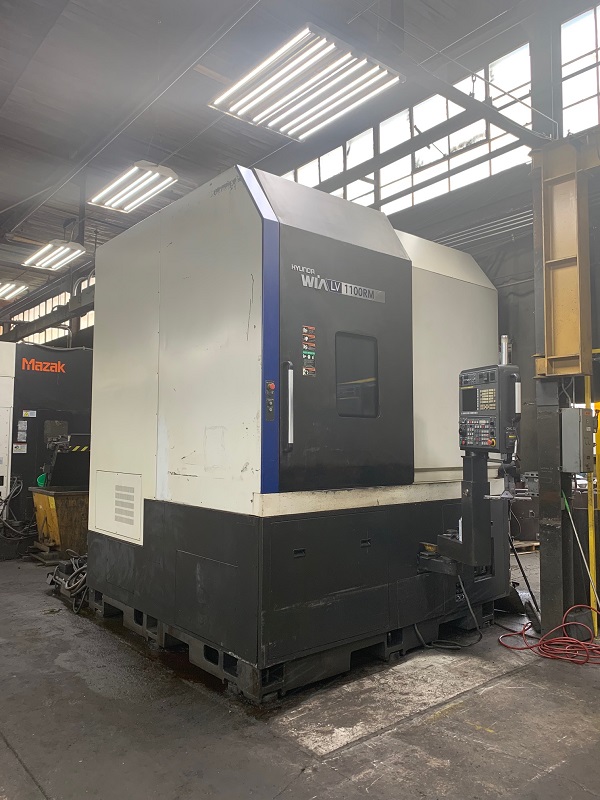

2011 HYUNDAI-WIA LV1100RM

Fanuc 32iA, 32" Chuck, 45.7" Max Dia, 39.4" Max Height, 75 HP, 630 RPM, Live Tooling, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 32"
  • Spindle Motor 75 / 60 HP
  • Spindle Speed 630 RPM
  • Spindle Nose 380 mm Flat
  • Tools 12
  • Rapid Traverse Rate (X & Z ) 945 IPM
  • X-Axis Travel 24.4"
  • Z-Axis Travel 39.4"
  • C-Axis Index .001 Degree
  • Machine Weight 48,000 lbs.
  • Live Tool Motor 15 HP
  • Max Turning Diameter 45.7"
  • Max Turning Height 39.4"
  • Spindle Torque 5658 ft. lbs.
  • Swing Over Bed / Carriage 53.3" / 49.2"

Product Features

  • Fanuc 32iA CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • C-Axis Live Tooling Capability

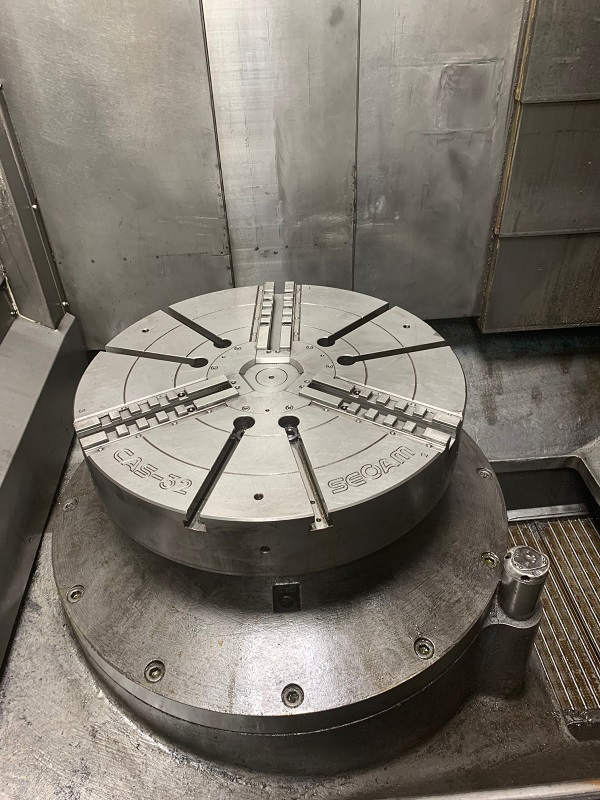

  • 32" Seoam CAS-32 Hydraulic 3-Jaw Chuck
  • Rigid Tapping
  • 12 Position Servo Driven Turret
  • Manual Q Setter
  • Chip Conveyor (Rear Exit)

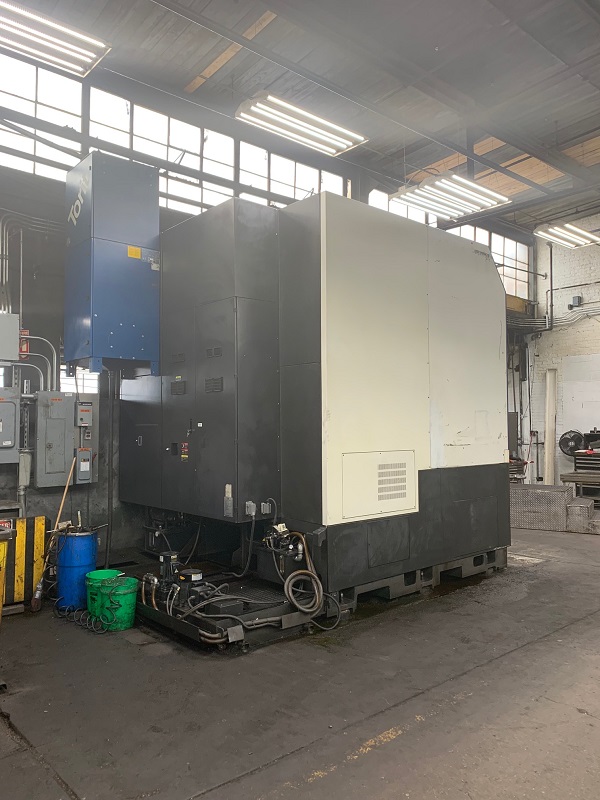

  • Torit Mist Collector

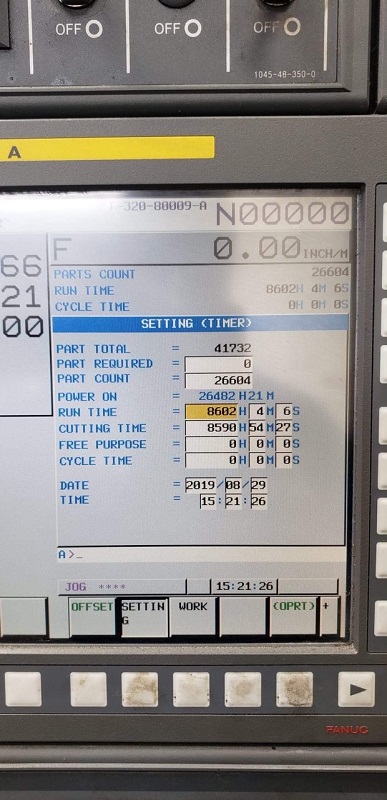

  • 26,482 Power On Time
  • 8602 Run Time
  • 8590 Cutting Time
