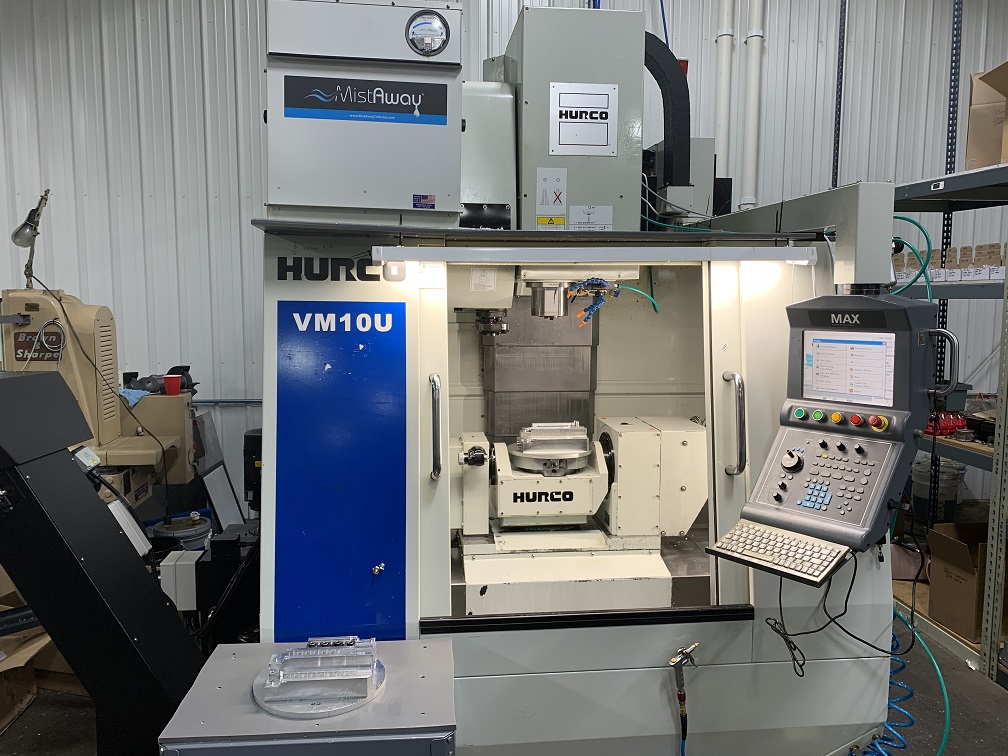

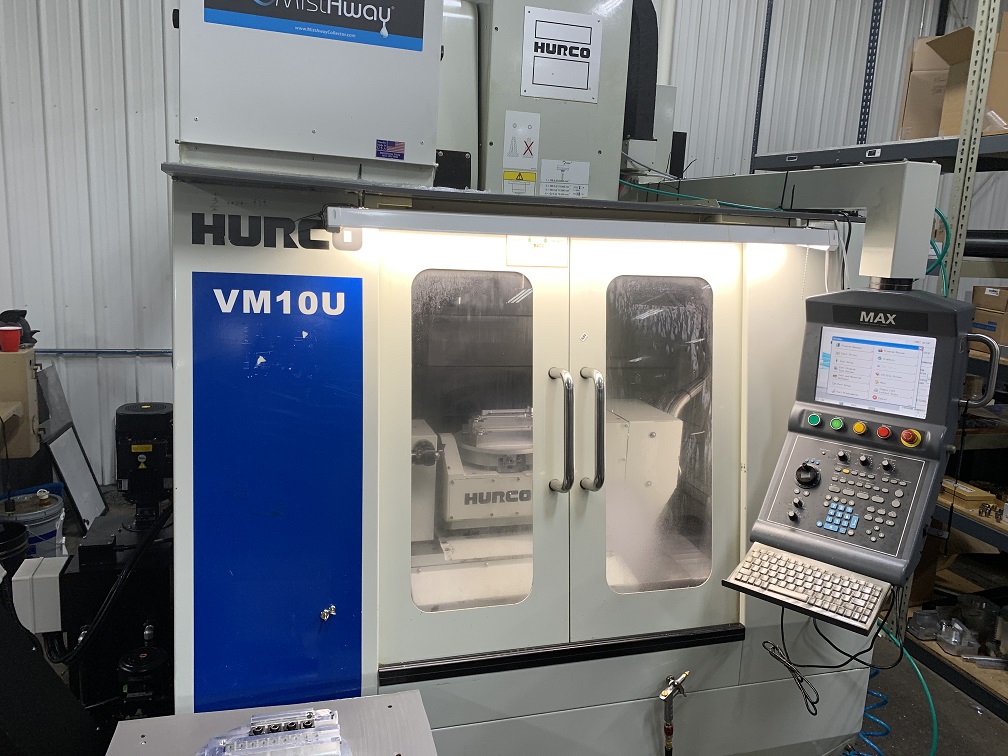

2011 HURCO VM10U 5-AXIS

WinMax, 21.16.19", 10000 RPM, Cat 40, 12 HP, 20 SMTC, 5-Axis, TSC 300 psi, Tool Setter, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis Travel 21"
  • Y-Axis 16"
  • Z-Axis 19"
  • A-Axis - 30 / + 110 Degrees
  • C-Axis (Table Rotation) .001 Degrees
  • Spindle Speed 10,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 12 HP
  • Table Load Capacity 330 lbs.
  • Max Tool Diameter 3.5"
  • Max Tool Length 9.8"
  • Max Workpiece Dia / Height 12.6" / 10"
  • Machine Dimensions (L x D x H) 75" x 64" x 104"
  • Machine Weight 7495 lbs.
  • Cutting Feedrate 600 IPM
  • Spindle Nose to Table Top 1.4" - 20.4"
  • Table Diameter 7.8"
  • Tool Change Time (T - T) 3 Seconds

Product Features

  • Win Max CNC Control
  • 12" Color LCD
  • Full 5-Axis Simultaneous Contouring Capability

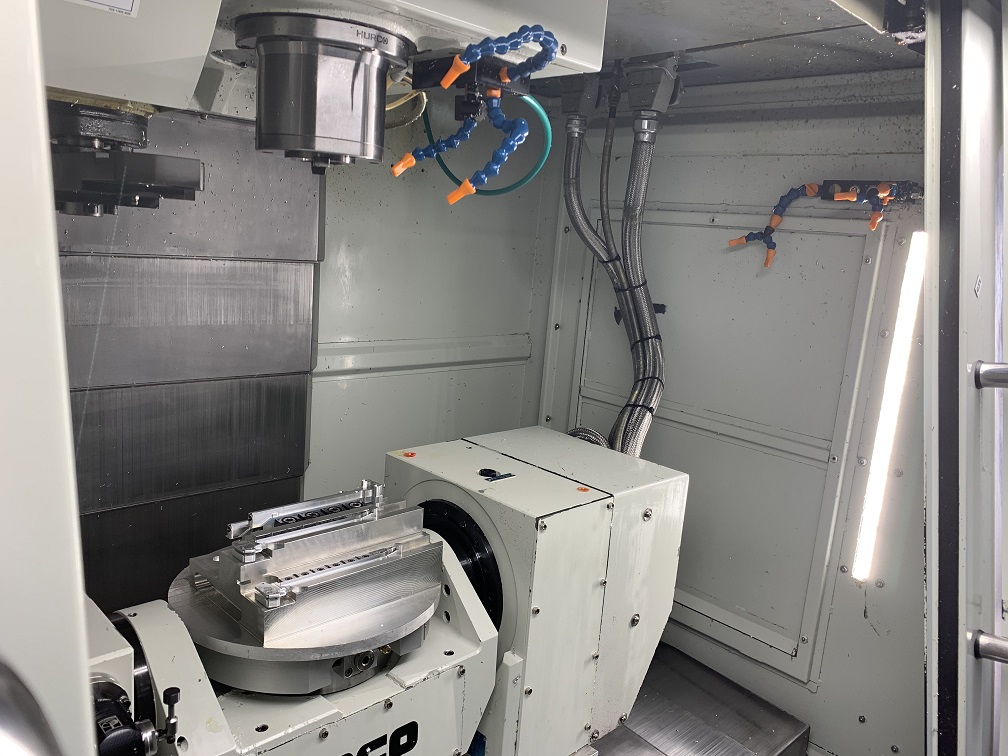

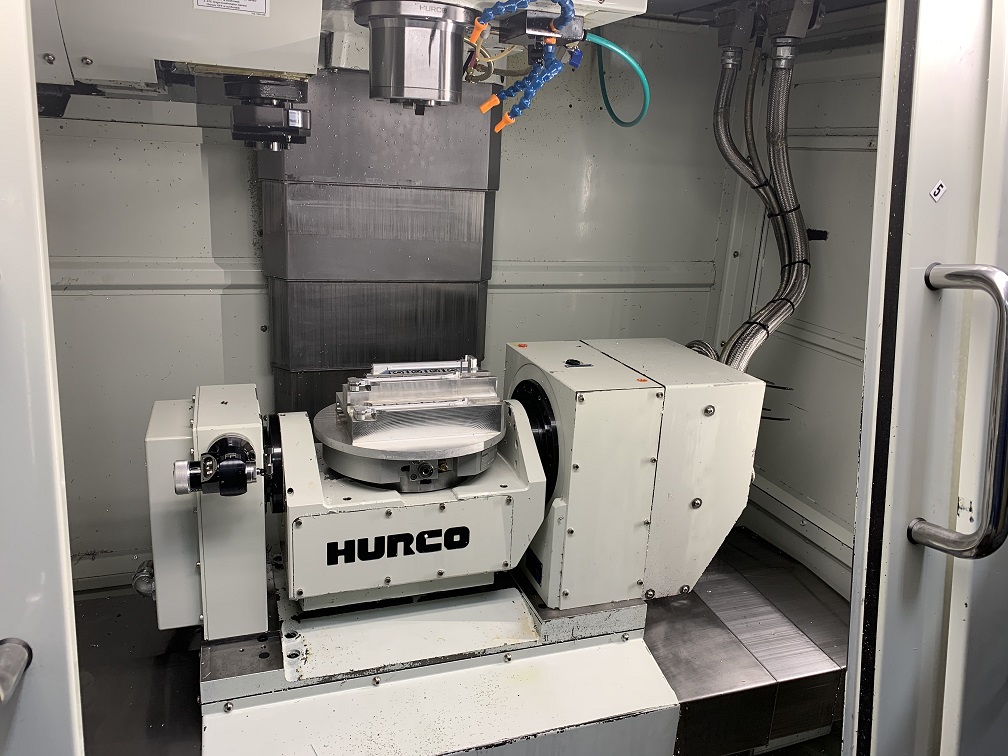

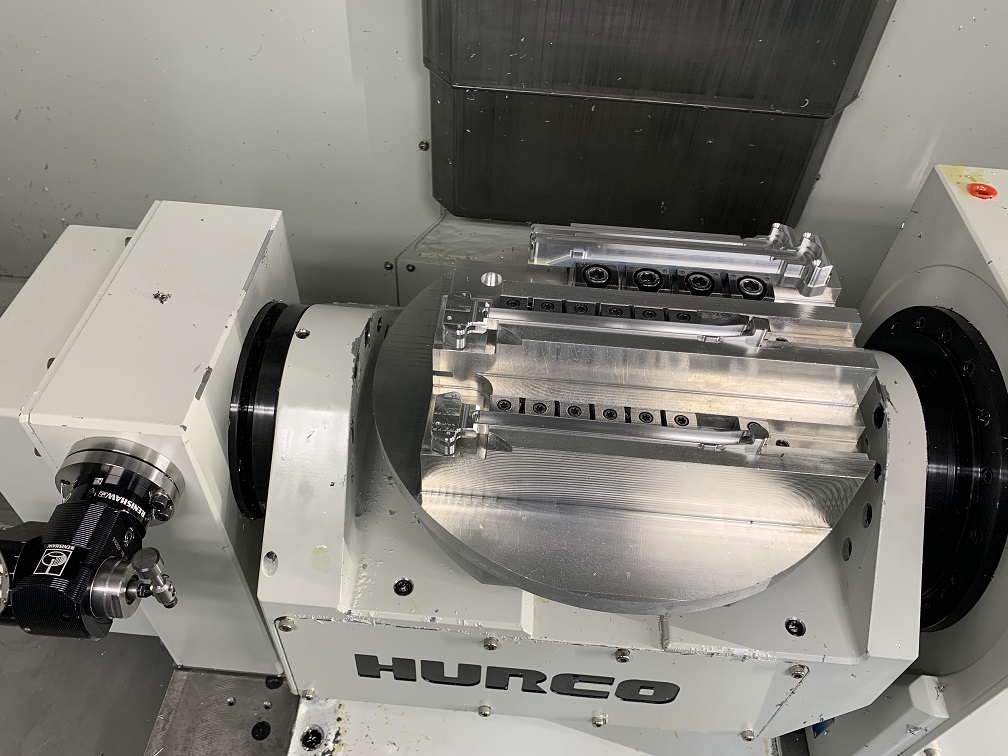

  • Integrated 5-Axis Trunnion Rotary/Tilt Table

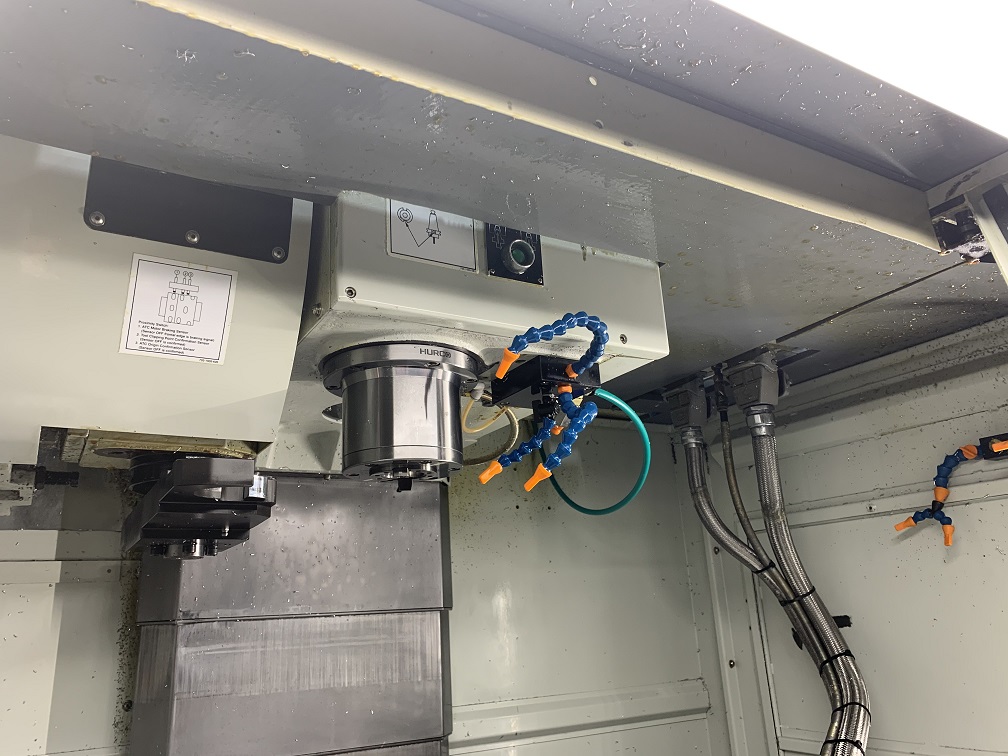

  • Through Spindle Coolant (300 psi)
  • Tool Probe and Parts Probe
  • 20 Position Side Mount Tool Changer

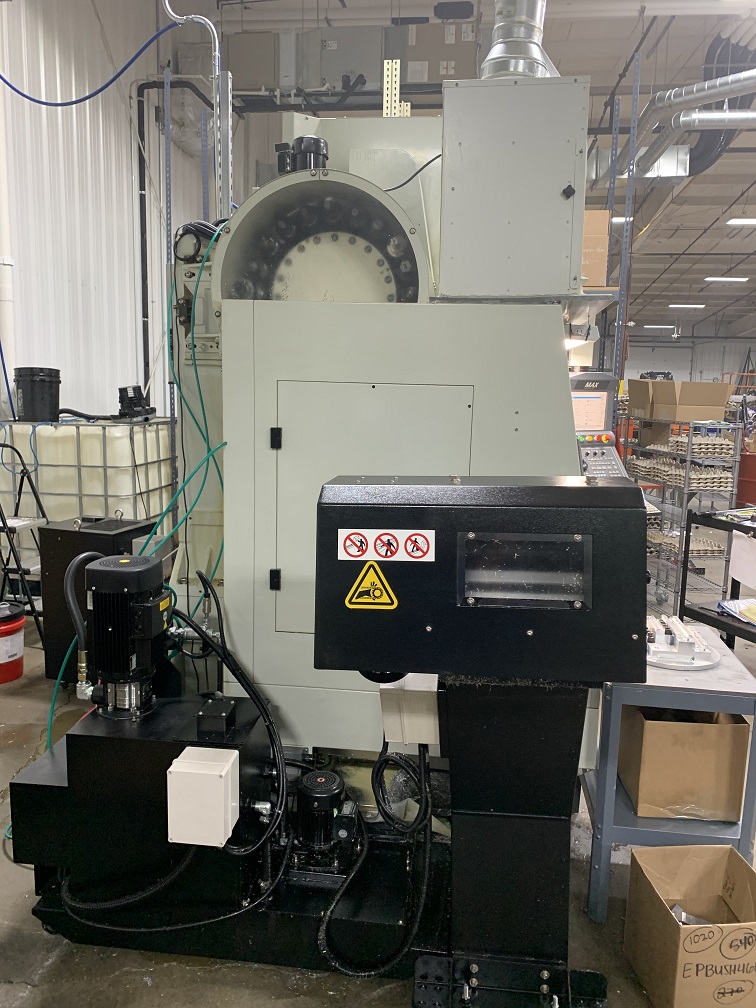

  • Chip Conveyor (Left Side Exit)
  • (2) USB Ports
  • 3D Verification Touch Screen Graphics
  • Conversational Programming
  • Advanced Verification
  • Industry Standard NC (FANUC Compatible G-code Programming)
  • NCPP Macro Programming
  • ISNC
  • Tool Change Optimization
  • Select Surface Finish Quality
  • UltiMotion
  • Inch/Metric Programming
  • 2 GB RAM Memory
  • 64 GB Hard Disk Drive
  • 600 Block Look Ahead
  • Rigid Tapping
  • Helical Interpolation
  • Mirror Image
  • Swept Surfaces
  • Tool & Material Library
  • NC Conversational Merge
  • Max Classic Software
  • Alpha Numeric Keyboard
  • Mist Collector
  • 3871 Machine Hour Meter
