2011 HAAS TM-1P

30.12.16", 6000 RPM, Cat 40, 7.5HP, 10 Tools, Rigid Tap, Coolant System, Full Enclosure
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 12"
  • Z-Axis 16"
  • Table Size 47.75" x 10.5"
  • Spindle Speed 0 - 6000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 7.5 HP
  • Tools 10
  • Table Load Capacity 1000 lbs.
  • Rapid Traverse Rates 400 IPM
  • Max Feed Rate 400 IPM
  • Max Tool Diameter 3.5"
  • Max Tool Length 12"
  • Max Tool Weight 12 lbs.
  • Machine Dimensions (L x W x H) 96" x 82" x 105"
  • Machine Weight 3300 lbs.
  • Spindle Nose to Table Top 4" - 20"
  • Spindle Torque 33 ft. lbs.

Product Features

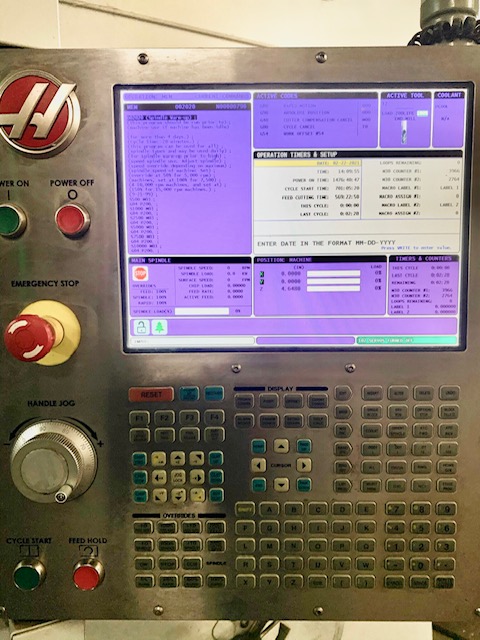

  • HAAS CNC CONTROL
  • 15" Color LCD
  • Graphic Display
  • USB
  • Ethernet Port
  • 10 Tool Magazine
  • Rigid Tapping
  • Coolant System
  • Green Work Indicator Light
  • Single or Three Phase Power
  • Chip Auger
  • 1126 Hours Servo Time
  • 667 Hours Motion Time
  • 685 Hours Spindle Time
  • Manufactured June 2011
