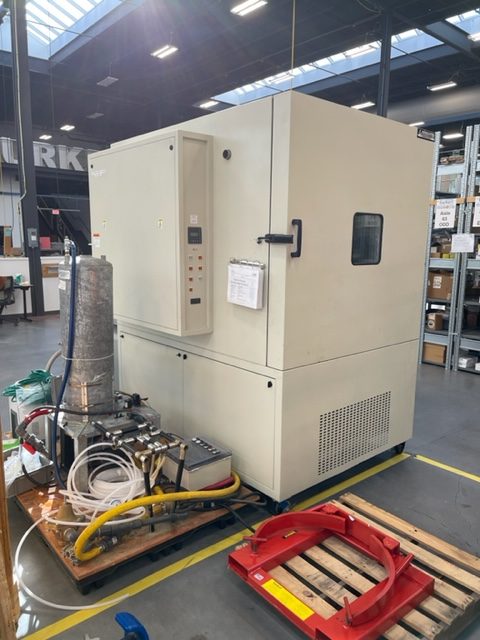

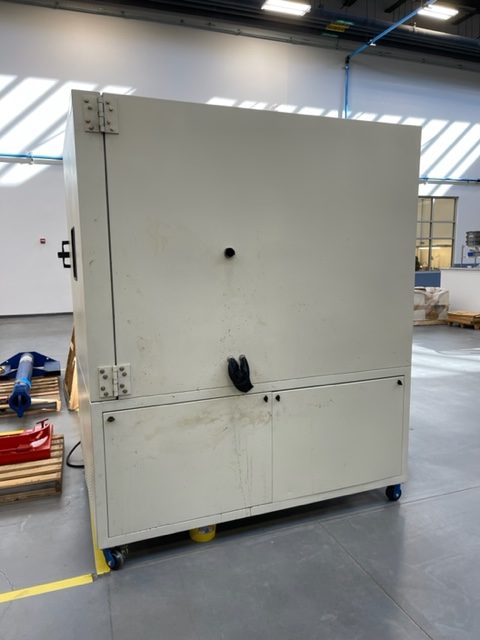

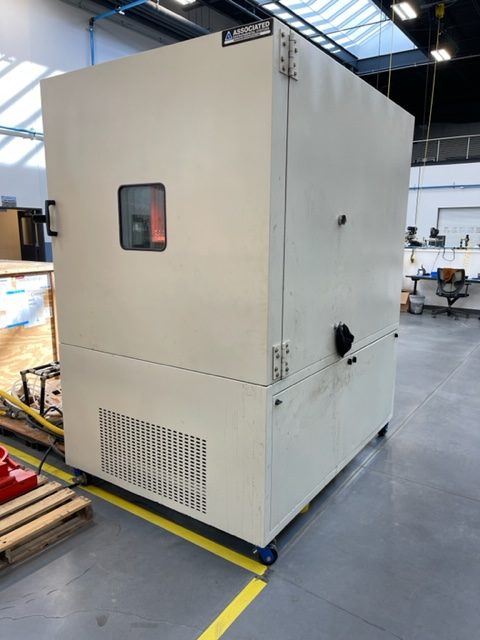

2011 ENVIRONMENTAL TEST CHAMBER HD-264

48" x 48" x 48" Working Volume, -85 to 392 F Degrees, 40 Minute Temperature Rise Time
Talk to a representative today!
(803) 548-8000

Product Features

  • Associated Environmental Associates HD-264 Temperature Humidity Test Chamber
  • 64 Cubic Ft. Working Volume (48" x 48" x 48")
  • 220V / 3 Phase / 60 Hz / 80 Amp Power Requirements
  • -65 C (-85 F) to 200 C (392 F) Degrees Temperature Range
  • 20-98% +/- 2% RH Limited by +2 C Dew Point Relative Humidity Range
  • +/- 0.5 C (+/- 1 F) Degree Temperature Stability
  • Ambient to Upper Limit in Approx 40 Minutes Temperature Rise Time
  • Ambient to Lower Limit in Approx 70 Minutes Temperature Pull Down Time

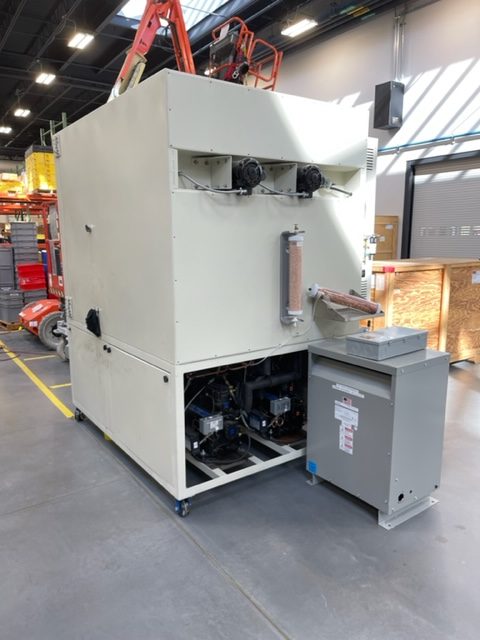

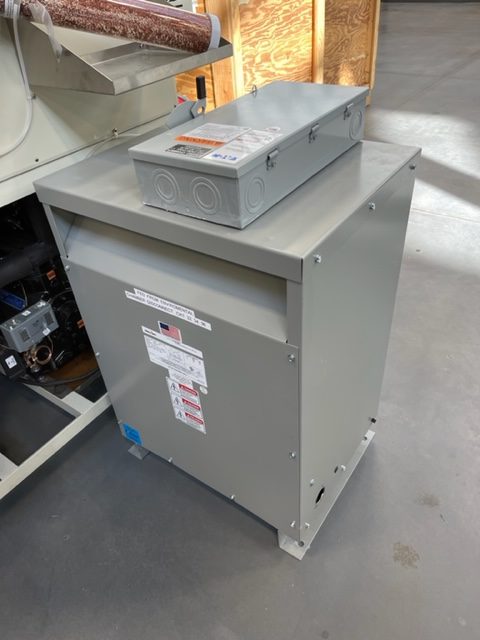

  • Federal Pacific 45 Kva Transformer 208Y/120 Primary and 220 Secondary

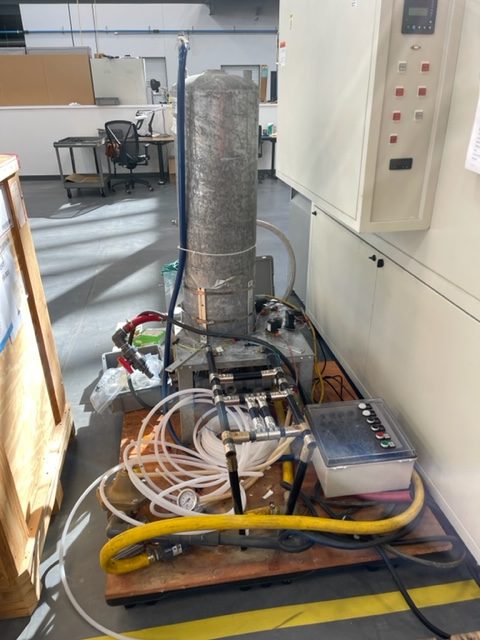

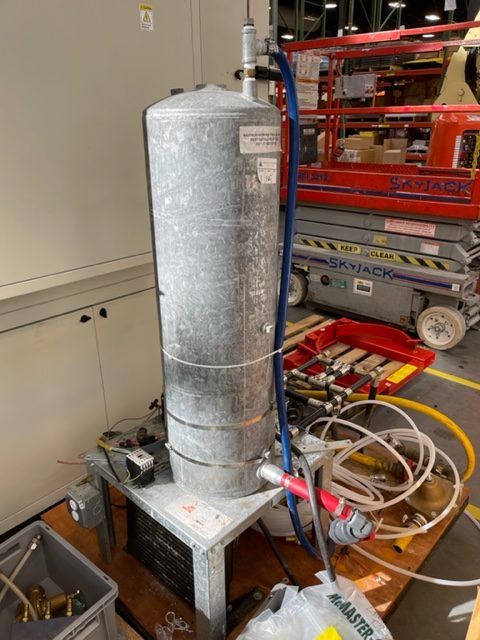

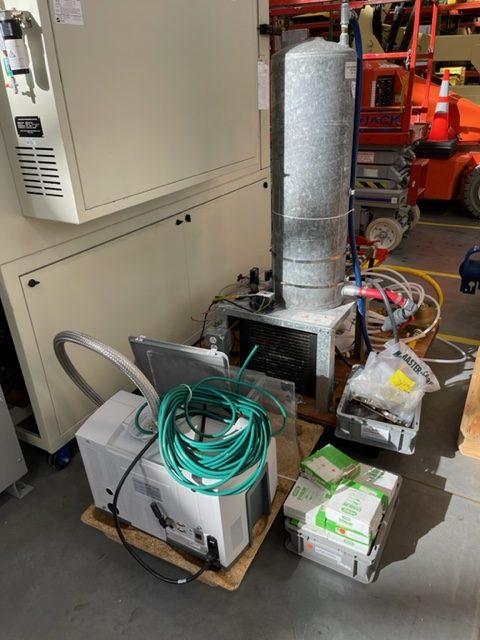

  • Additional Accessories Included on Pallet
  • 58" L x 92" D x 94" H Machine Dimensions
  • 304 Stainless Steel Interior Cabinet
  • Powerful Custom-Designed Stainless Steel Blower Wheels
  • Fully Adjustable Stainless Steel Shelf
  • Swivel Brake Casters
  • Multipane Heated 36" x 48" Viewing Window
  • Aesone Connect Controller with 4.3" Capacitive Touch Screen
