Special Item

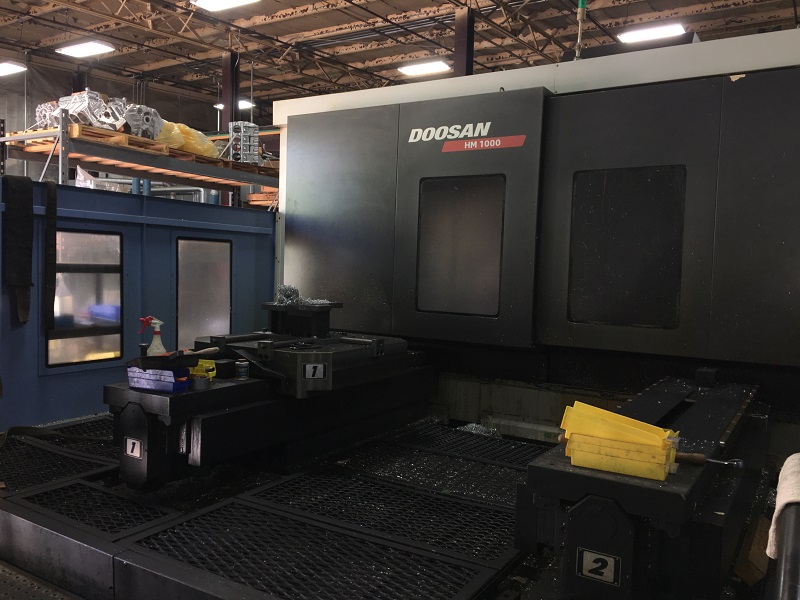

2011 DOOSAN HM-1000

Fanuc 31i-MA, 82.49.99", 6000 RPM, CAT50, 40HP, 90 Tools, Fourth Axis, TSC, Probe, Chiller, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 5000 lbs.
  • Pallet Size 39.37"
  • X-Axis 82.3"
  • Y-Axis 49.21"
  • Z-Axis 49.21"
  • Pallet Index 1 Degree
  • Spindle Speed 30 - 6000 RPM
  • Spindle Taper #50
  • Spindle Motor 40 / 35 HP
  • Spindle Center to Table Top 1.97" - 45.28"
  • Spindle Nose to Table Center 9.84" - 49.21"
  • Tools 90
  • Rapid Traverse Rates (X, Y & Z) 1889 IPM
  • Tool Change Time (T - T) 8.8 Seconds
  • Max Tool Diameter 4.53" / 10.63"
  • Max Tool Length 19.69"
  • Max Tool Weight 55 lbs.
  • Machine Dimensions(L x W x H) 381" x 230" x 153"
  • Machine Weight 55,000
  • Spindle Torque 923 ft. lbs.

Product Features

  • Fanuc 31i-MA CNC Control
  • 10.4" Color TFT
  • PC/MCIA Interface
  • USB Port
  • Renishaw Probe System
  • Fourth Axis Rotary Table (1 degree)

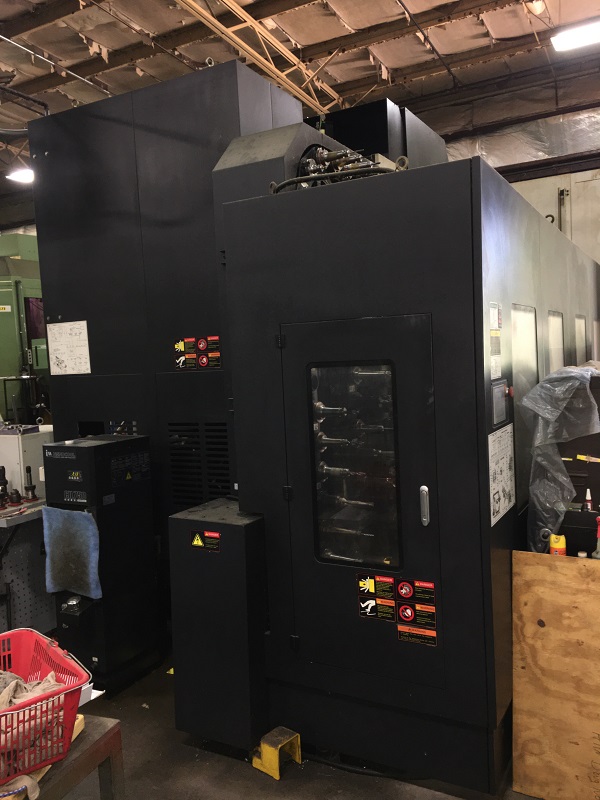

  • 90 Position Automatic Tool Changer
  • 2 Station Automatic Pallet Changer
  • Through Spindle Coolant (1000psi)

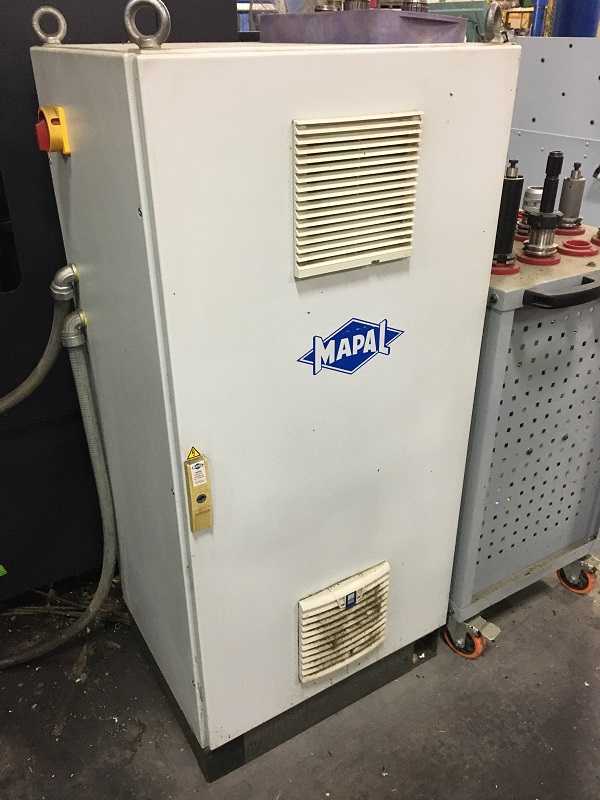

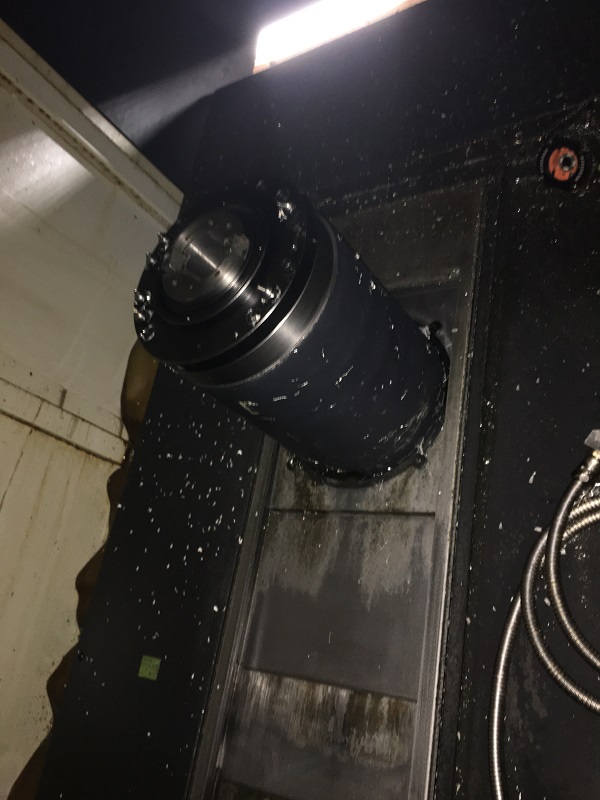

  • (2) Mapal Tooltronic U-Axis Internal Heads
  • Full Chip and Splash Enclosure
  • Rear Exit Chip Conveyor
  • Manufacture Date February 2011

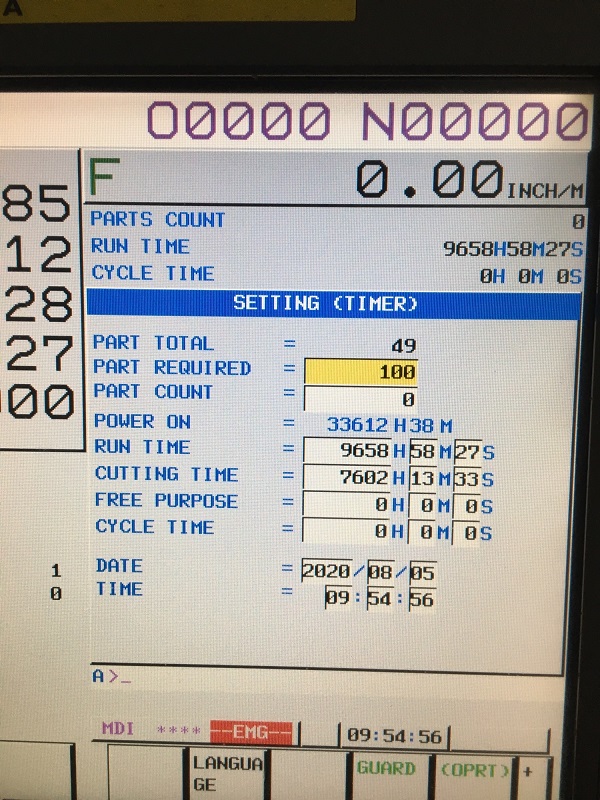

  • 33,612 Hours Power On Time
  • 9,568 Hours Run Time
  • 7,602 Hours Cutting Time
