< Back to Horizontal M/C
Special Item

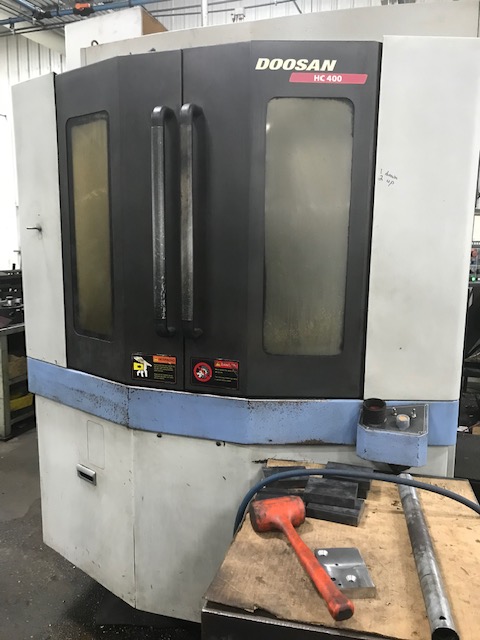

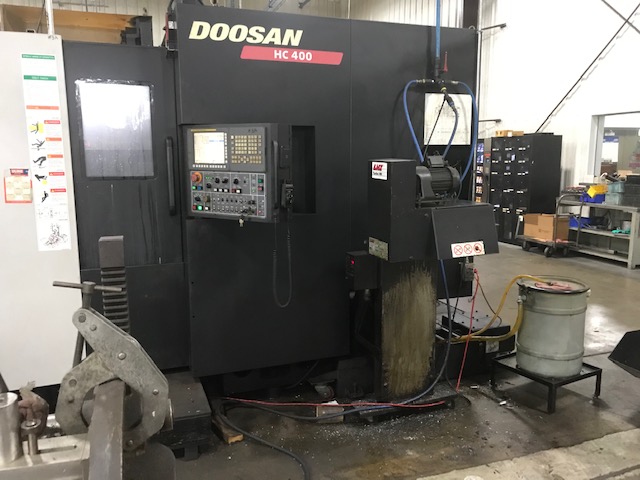

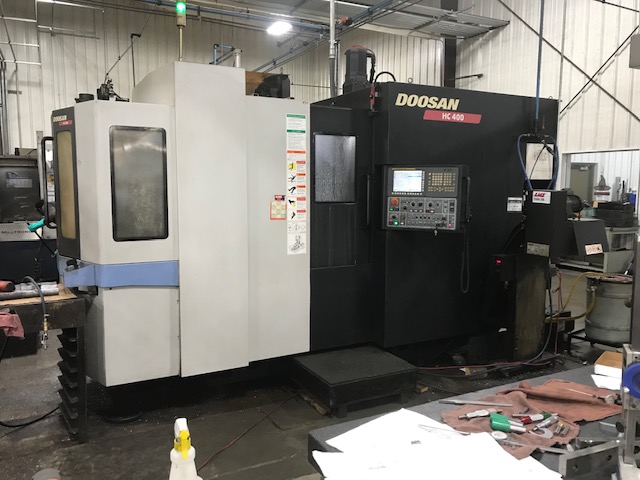

2011 DOOSAN HC 400

Fanuc 32iMA, 15.7" Pallet, 24.22.22", 1 Deg, 10000 RPM, 60 Tools, 25 HP, Cat 40, TSC, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 880 lbs.
  • Pallet Size 15.75" (2)
  • X-Axis 23.6"
  • Y-Axis 22.0"
  • Z-Axis 22.2"
  • Pallet Index 1 Degree
  • Spindle Taper Cat 40 Big Plus
  • Spindle Motor 25 / 15 HP
  • Spindle Center to Pallet Top 1.97" - 24"
  • Spindle Nose to Table Center 5.9" - 28.1"
  • Tools 60
  • Max Tool Diameter 2.95" / 5.5"
  • Max Tool Length 11.8"
  • Max Tool Weight 22 lbs.
  • Max Workpiece Size (Dia / Height) 23.6" / 31.5"
  • Machine Dimensions (L x W x H) 89" x 180" x 111"
  • Machine Weight 29,000
  • Number of Pallets 2

Product Features

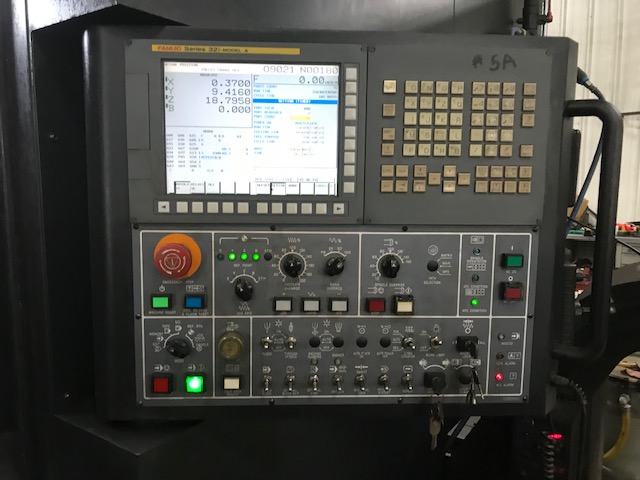

  • FANUC 32iMA CNC Control
  • One Degree Index

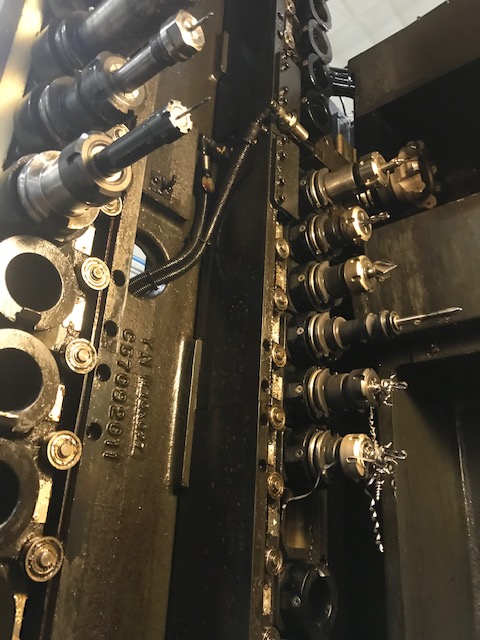

  • 60 Tool Magazine
  • Through Spindle Coolant (230 psi)
  • LNS Turbo Chip Conveyor (Rear Exit)
  • Renishaw NC4 Laser Tool Setter
  • Renishaw Touch Probe
  • Remote Jog Handle
  • Three Color Tower Light
  • 46,425 Power On Time
  • 33,430 Run Time
  • 10,501 Cutting Time
