< Back to Vertical M/C
Special Item

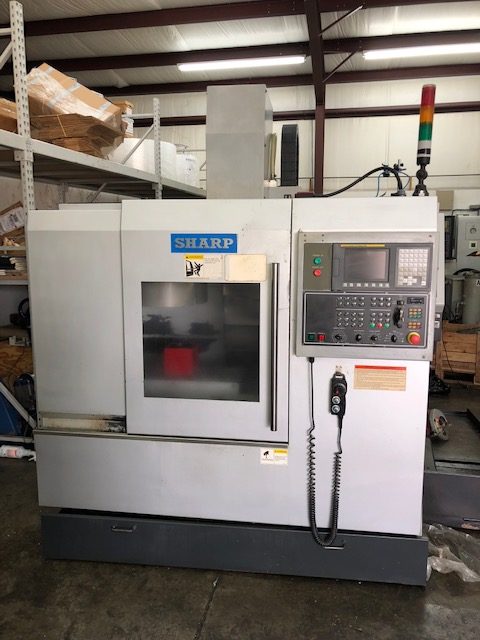

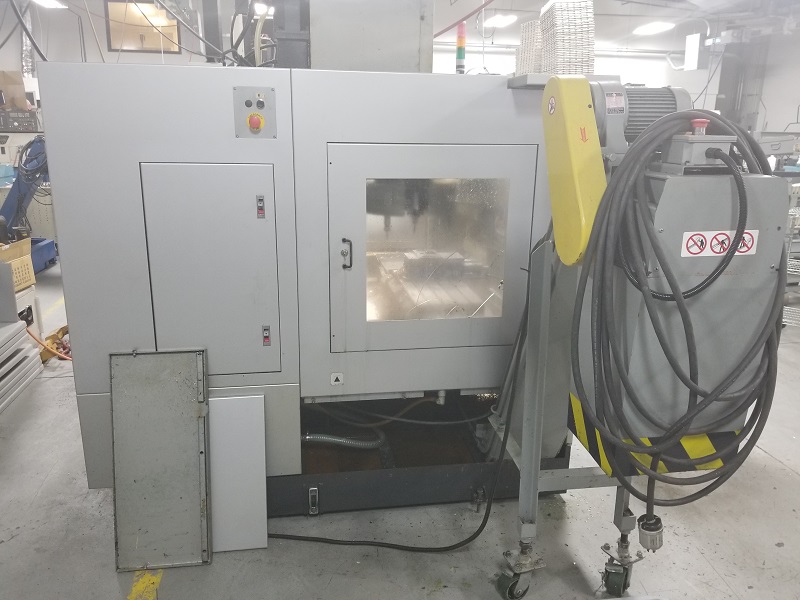

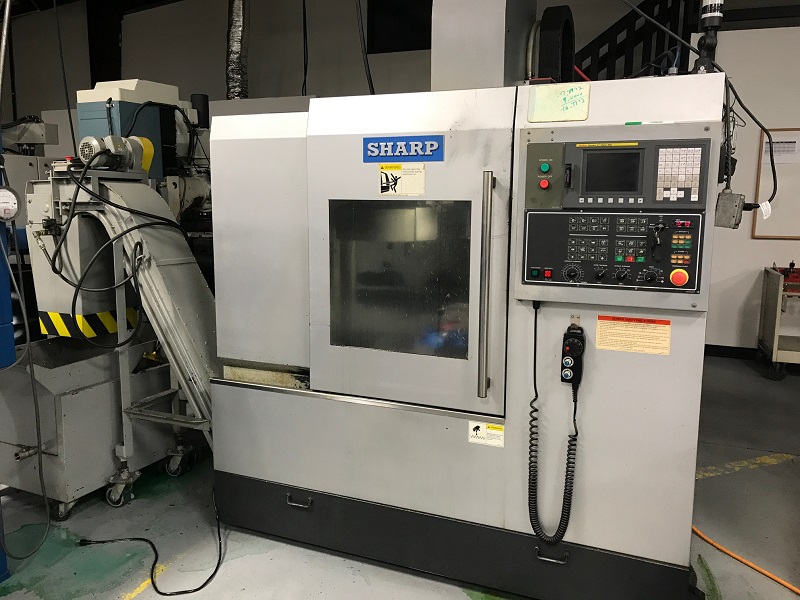

2010 SHARP SV-2412

Fanuc 0i, 24.12.18", 8000 RPM, 15 HP, 16 Tools, Chip Conveyor, Remote Jog Handle
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 24"
  • Y-Axis 12"
  • Z-Axis 18"
  • Table Size 27.5" x 12"
  • Spindle Speed 8000 RPM
  • Spindle Motor 15 / 10 HP
  • Tools 16
  • Table Load Capacity 850 lbs.
  • Rapid Traverse Rates (X & Y / Z) 787 / 708 IPM
  • Max Tool Diameter 3.9"
  • Max Tool Length 13"
  • Max Tool Weight 17 lbs.
  • Machine Dimensions (L x W x H) 73" x 79" x 92"
  • Machine Weight 6600 lbs.
  • Spindle Nose to Table Top 2.8" - 20.8"

Product Features

  • FANUC 0i Mate-MC CNC CONTROL
  • 9" Monochrome LCD
  • PC/MCIA Interface
  • Chip Conveyor (Left Side Exit)
  • 16 Tool Magazine
  • Remote Jog Handle
  • Three Color Tower Light
  • 36,607 Power On Time
  • 5121 Operating Time
  • 5264 Cutting Time
