Special Item

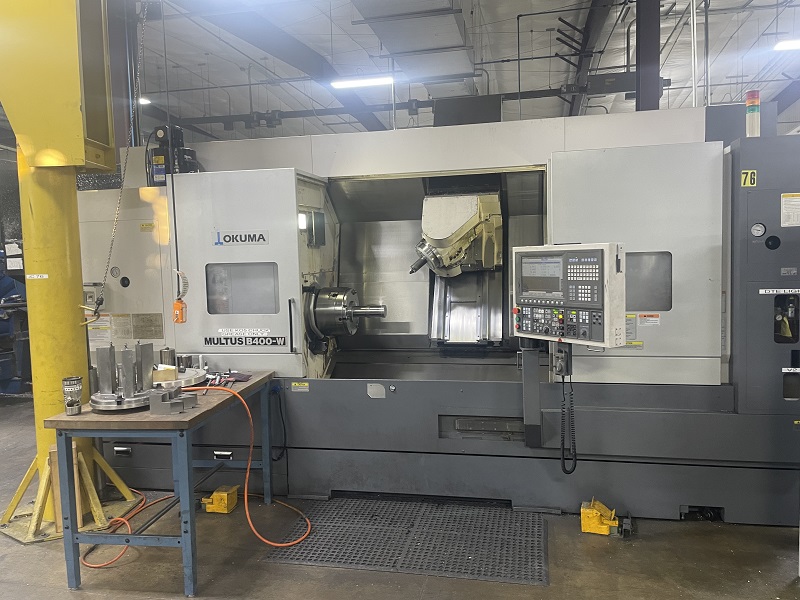

2010 OKUMA MULTUS B400-1500BBW

OSP-P200L, 4" Bar, 15" Chuck, 40 HP, 2800 RPM, 40 Tools, Y & B-Axis, Renishaw Probe, Tool Presetter, Chip Conveyor,
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 15"
  • Max Swing Over Bed / Carriage 27.95" / 27.95"
  • Max Machining Length 59.06"
  • Tools 40
  • Milling Speed 10000 RPM
  • Sub Spindle Bar Capacity 2.8"
  • Sub Spindle Chuck Size 10"
  • Sub Spindle Index 0.001 Degrees
  • Sub Spindle Motor 27 / 18.7 HP
  • Sub Spindle Nose A2-8
  • Sub Spindle Speed 38 - 3800 RPM
  • Rapid Traverse Rates (X&Z / Y /W) 1574 / 1024 / 787 IPM
  • X-Axis Travel 27.17"
  • Z-Axis Travel 60.83"
  • Y-Axis Travel +/- 4.53""
  • C-Axis Index 0.001 Degrees
  • B-Axis Index 0.001 Degrees
  • B-Axis Swivel 225 Degrees
  • Machine Dimensions (L x W x H) 226.4" x 104.7" x 118.2"
  • Machine Weight 34,000 lbs.
  • Distance Between Spindles 60.83"
  • Left Spindle Bar Capacity 4"
  • Left Spindle Bore 4.35"
  • Left Spindle Motor 40/30 HP
  • Left Spindle Nose A2-11
  • Left Spindle Speed 2800 RPM
  • Max Tool Diameter 3.54" / 5.12"
  • Max Tool Length 15.75"
  • Max Tool Weight 22 lbs.
  • W-Axis Travel (Sub Spindle) 61.02"

Product Features

  • OKUMA P-200L with THINC CNC Control
  • 15" Color LCD
  • USB Port

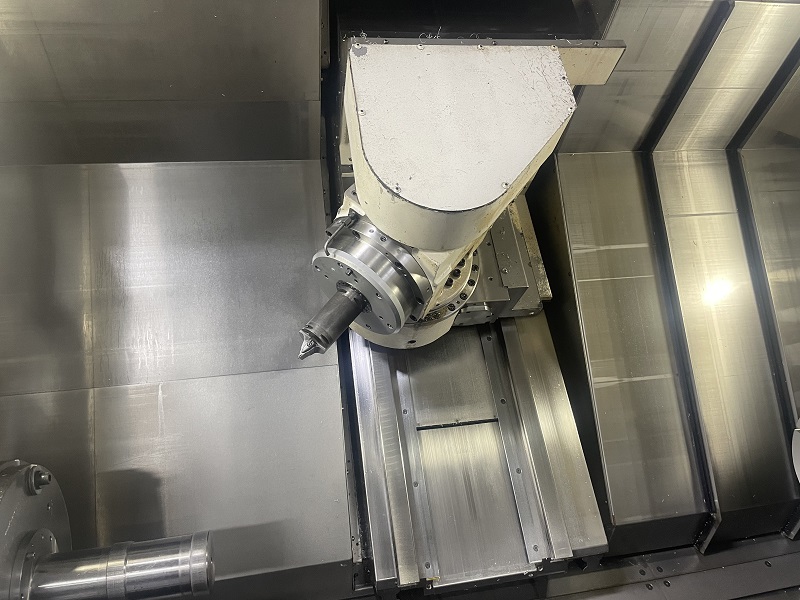

  • Full Contouring B-Axis Upper Tool Spindle
  • Y, B & C-Axis Live Tooling Capability
  • Big Bore Left Spindle with 15" Hydraulic Chuck
  • Standard Bore Right Spindle with 10" Chuck
  • 40 Tool Magazine (Capto C6)
  • Touchsetter A for Main Spindle
  • Auto Gauging Renishaw RMP-60 Part Probe
  • Rapid Traverse Override Switch
  • High Pressure Coolant Prep (Pump Not Included)
  • Z-Axis Auto Zero Offset Function
  • C-Axis Auto Zero Offset Function
  • Y-Axis Gauging

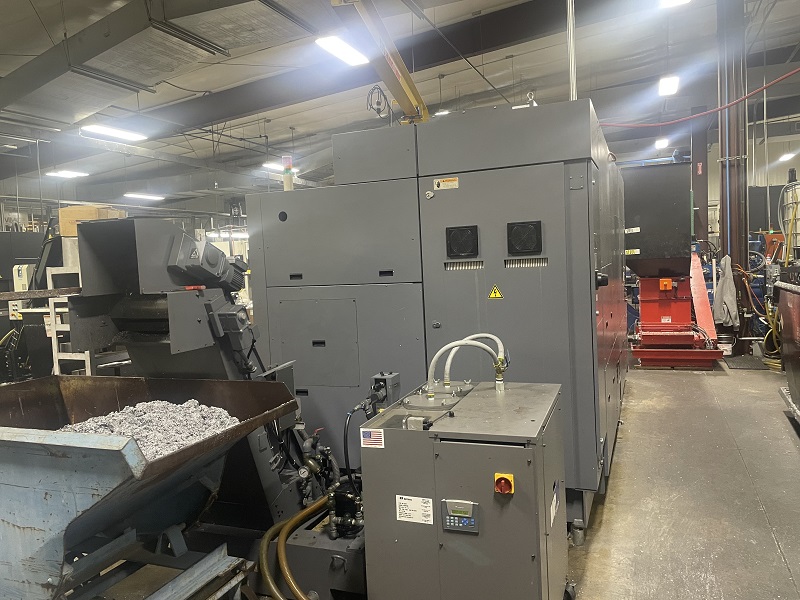

  • Chip Conveyor with Filtration (Hinge Type Right Side Exit)
  • Spare M-Codes (2 Sets)
  • Negative Tool Radius Compensation
  • Variable Spindle Speed Threading (Main or Sub Spindle)
  • Remote Jog Handle
  • Three Color Tower Light
  • Manufacture Date October 2010
  • Installed in 2014

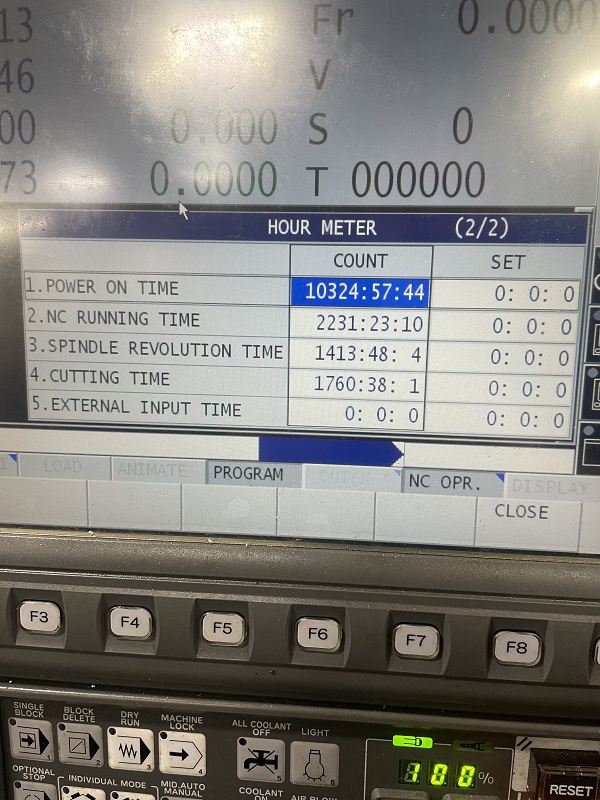

  • 10,324 Power On Time
  • 2231 NC Running Time
  • 1413 Spindle Revolution Time
  • 1760 Cutting Time
