Special Item

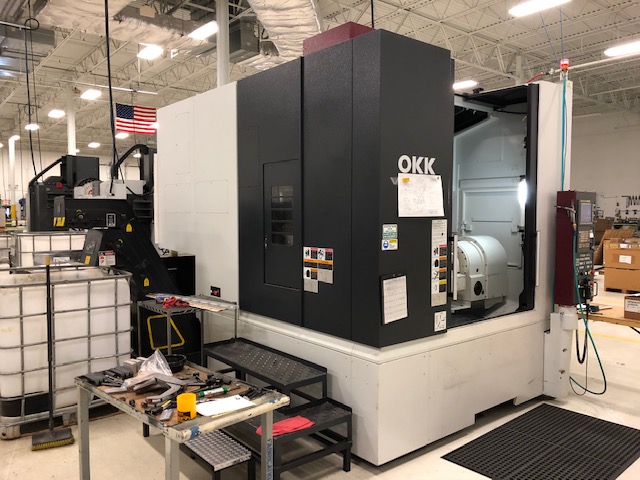

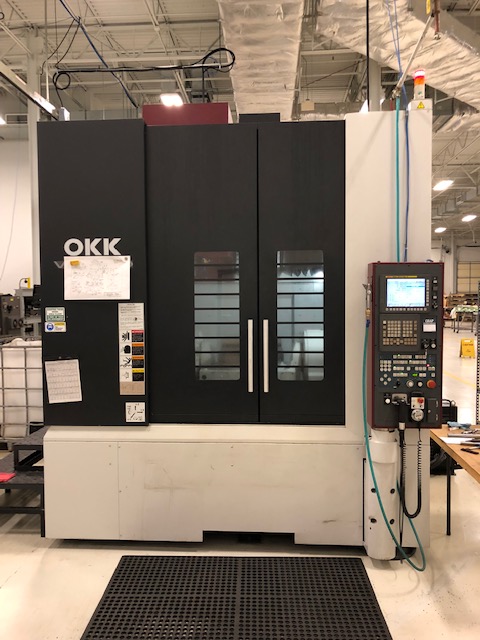

2010 OKK VP600-5AX

Fanuc 310is-A5, 44.24.18", 12000 RPM, 30 Tools, 30 HP, Cat 40, 5-Axis, TSC 1000 psi, Probes, Chip, Scale Feedback, Data Server
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 44.09"
  • Y-Axis 24"
  • Z-Axis 18.11"
  • A-Axis Travel -105 to 15 Degrees
  • C-Axis (Table Index) 360 Degrees
  • Table Size 19.7" x 19.7"
  • Spindle Speed 12,000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 30 / 25 HP
  • Tools 30
  • Rapid Traverse Rates (X & Y / Z) 1969 / 1417 IPM
  • Max Tool Diameter 4.33"
  • Max Tool Length 11.81"
  • Max Tool Weight 15.4 lbs.
  • Machine Dimensions (L x W x H) 144" x 99" x 120"
  • Machine Weight 26,000 lbs.
  • Spindle Nose to Table Top 5.9" - 24"

Product Features

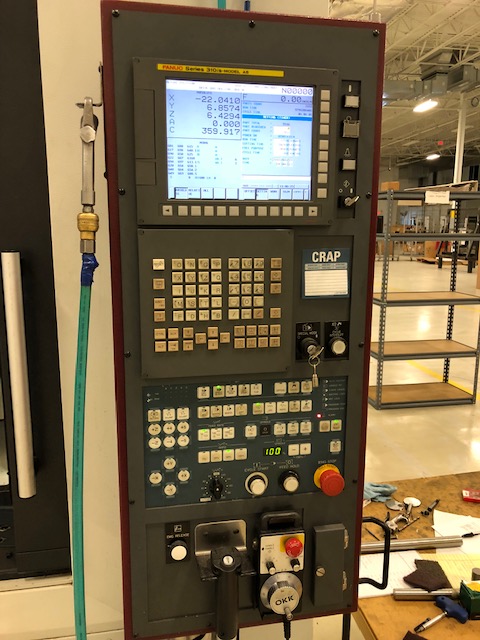

  • Fanuc 310is-Model A5 CNC Control
  • 10.4" Color LCD
  • PC/MCIA Interface
  • 5-Axis Simultaneous Machining Capability

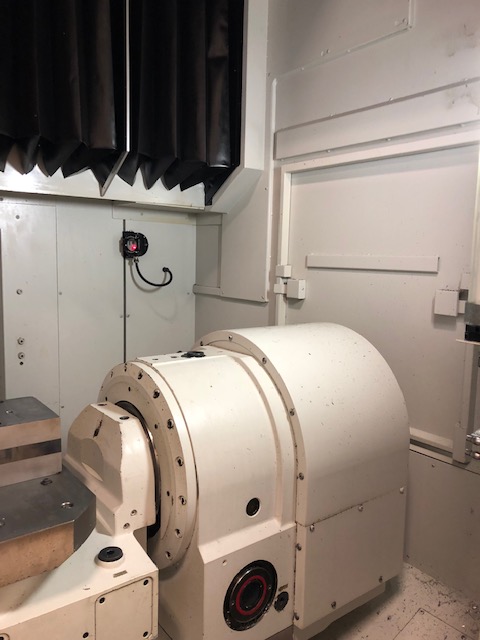

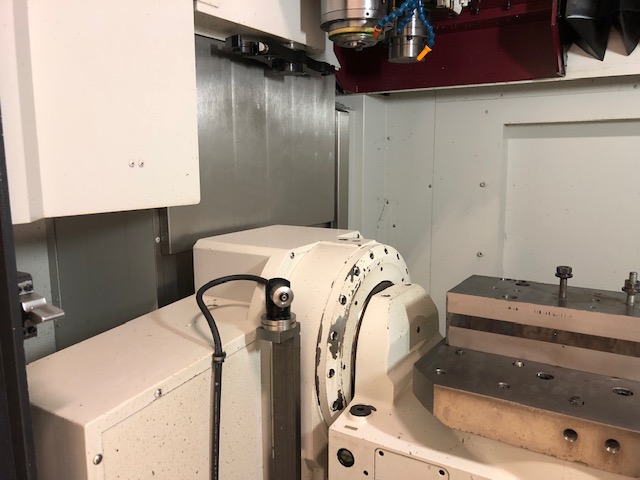

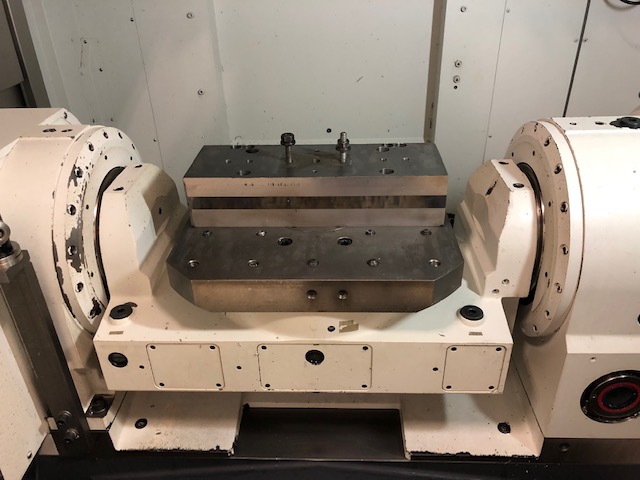

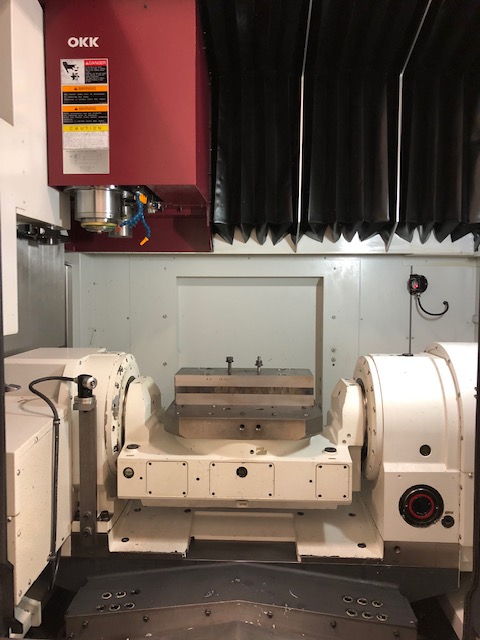

  • Tsudakoma RT-225 Rotary Tilt Trunnion Table
  • Through Spindle Coolant (1000 psi)

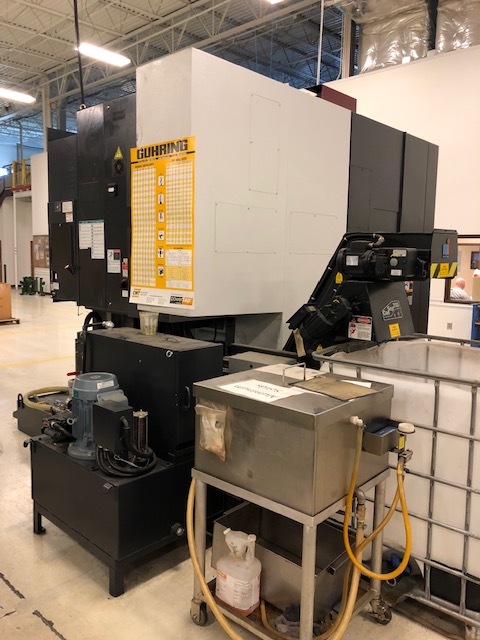

  • Consep 2000 Microfine Chip Conveyor (Left Rear Exit)
  • Chip Auger
  • Spindle Chiller Unit
  • Remote Jog Handle
  • Renishaw Touch Probe
  • Renishaw TS27R Laser Auto Tool Length Measurement
  • Multi-Tap Transformer
  • 30 Position Side Mount Tool Changer
  • Scale Feedback on A & C-Axes
  • 5AX NC Optional Package
  • HQ Tuner for Hyper HQ Mode B
  • Data Server
  • High Speed Look Ahead
  • Two Color Tower Light
  • Auto Power Off
  • Top Cover
  • Installed in November 2010
  • 8709 Power On Time
  • 579 Run Time
  • 1428 Cutting Time
