Special Item

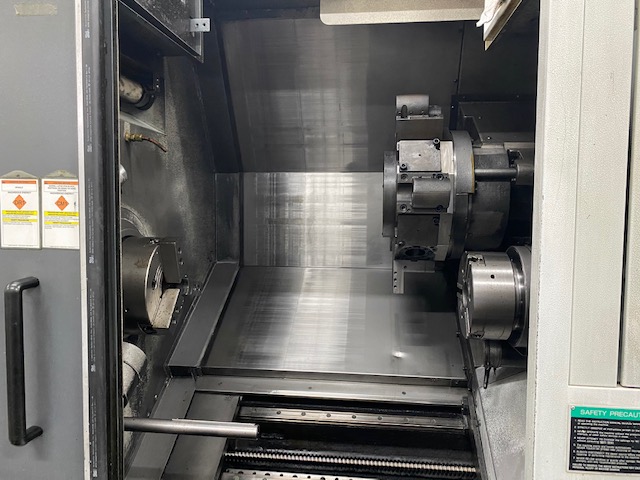

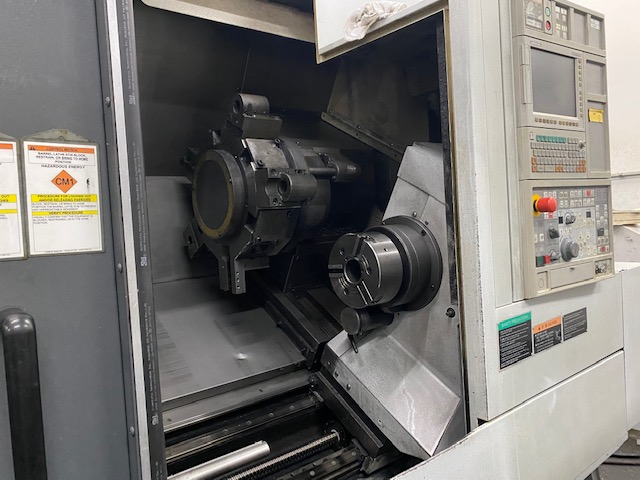

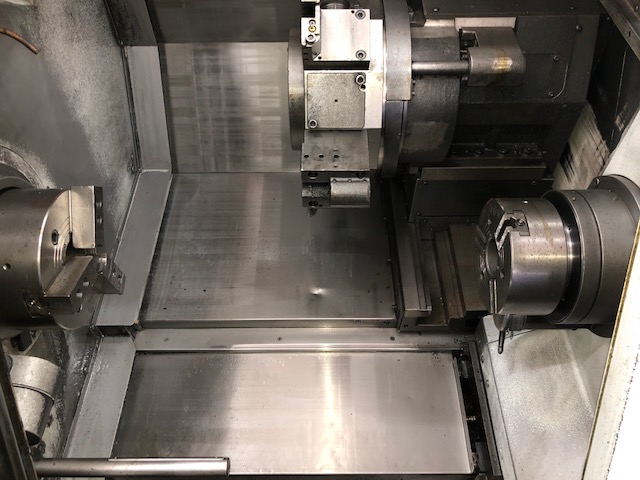

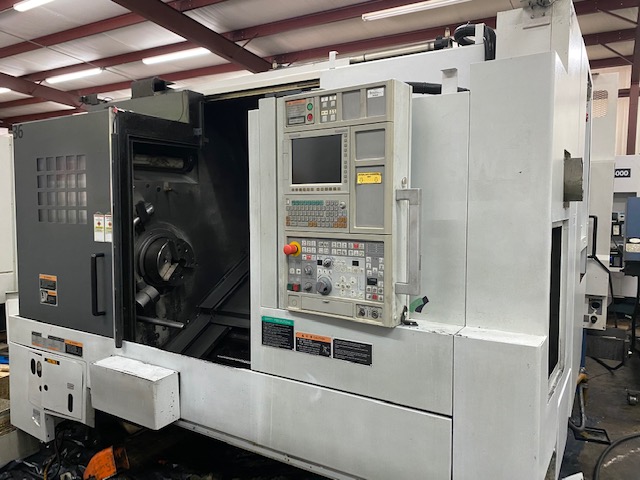

2010 MORI SEIKI NL-2500SMC/700 (36)

Mit, 3" Bar, 10" Chuck, 4000 RPM, 25 HP, 12 Tools, Live Tooling, Sub Spindle, Tool Presetter, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed / Carriage / Cover 36.4" / 29.7" / 22.8"
  • Turning Diameter (Max / Std) 14" / 10.8"
  • Max Machining Length 27.7"
  • Spindle Motor 24.7 / 20 HP
  • Spindle Speed 4000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12 (All Live)
  • Milling Motor 7.5 HP
  • Milling Speed 6000 RPM
  • Sub Spindle Chuck Size 6"
  • Sub Spindle Motor 15 / 10 HP
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates (X & Z) 1181 IPM
  • X-Axis Travel 10.2"
  • Z-Axis Travel 31.3"
  • C-Axis Index (Main & Sub) .001 Degrees
  • Turret Index (Single Step) 0.25 Seconds
  • Machine Dimensions (L x W x H) 122" x 78.7" x 83.5"
  • Machine Weight 13,000 lbs.
  • Distance Between Centers 27.5"
  • Spindle Torque 441.8 ft. lbs.

Product Features

  • MORIC MSX-850BM (MITSUBISHI) CNC CONTROL
  • 15" Color TFT
  • C-Axis Milling Capability
  • Programmable Sub Spindle

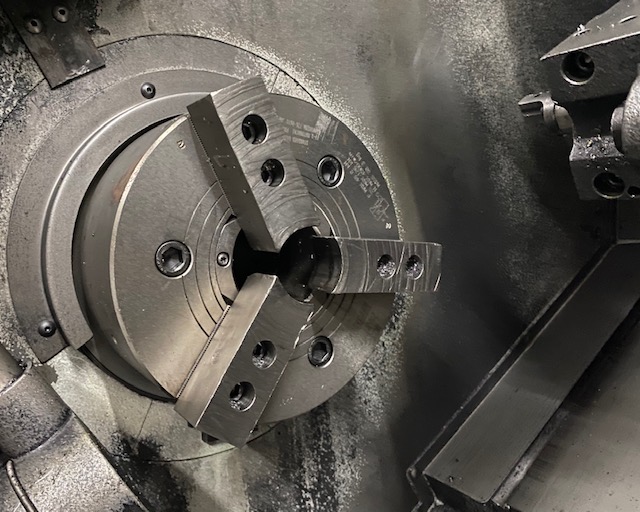

  • 10" Kitagawa BB210 Hydraulic Chuck on Main Spindle
  • 6" Kitagawa B206 Hydraulic Chuck on Sub Spindle
  • PC / MCIA Interface
  • USB Port & Embedded Internet
  • Barfeed Interface
  • Tool Presetter for Main Spindle
  • Removable Tool Presetter for Sub Spindle
  • Servo Driven Turret
  • Integral Spindle Milling Motor
  • Auto Parts Catcher
  • Mayfran Chip Conveyor (Side Exit Hinge Type)
  • Milling Spindle Synchronous Tapping
  • Heavy Duty Slant Bed Box Way Construction
  • Manufacture Date November 2010
