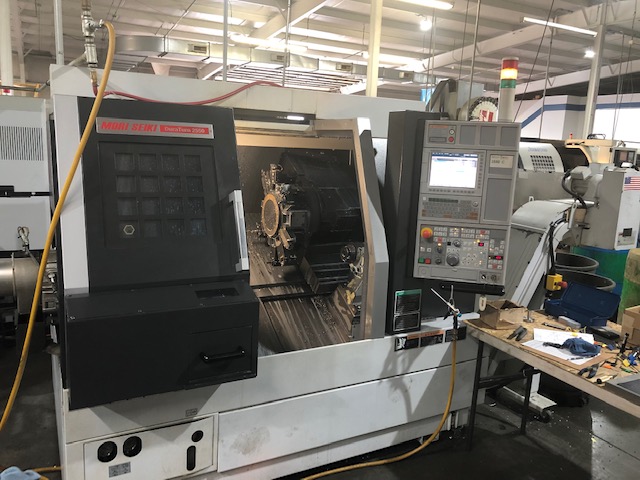

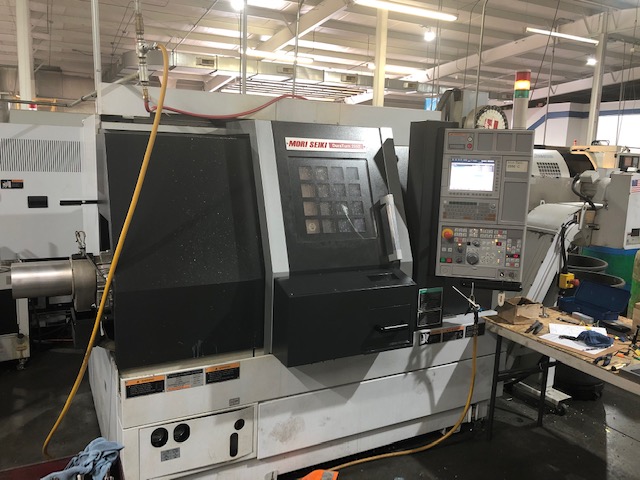

2010 MORI SEIKI DURATURN 2550MC (#2)

Fanuc, 3" Bar, 10" Chuck, 20" Length, 3000 RPM, Live Tooling, 35HP, 12 Tools, Tail, Chip, Tool Presetter, APC
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed 24"
  • Max Machining Length 20.1"
  • Spindle Motor 35 HP
  • Spindle Speed 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12
  • Rapid Traverse Rates (X & Z) 945 IPM
  • X-Axis Travel 8.5"
  • Z-Axis Travel 22.4"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 86.6" x 72.3" x 69"
  • Machine Weight 8800 lbs.
  • Max Turning Diameter 14.5"
  • Tailstock Taper MT#4

Product Features

  • MORIC MSC-504IV (FANUC) CNC CONTROL
  • 10.4" Color TFT
  • MAPPS IV Conversational Programming
  • PC/MCIA Interface
  • USB Port
  • C-Axis Milling

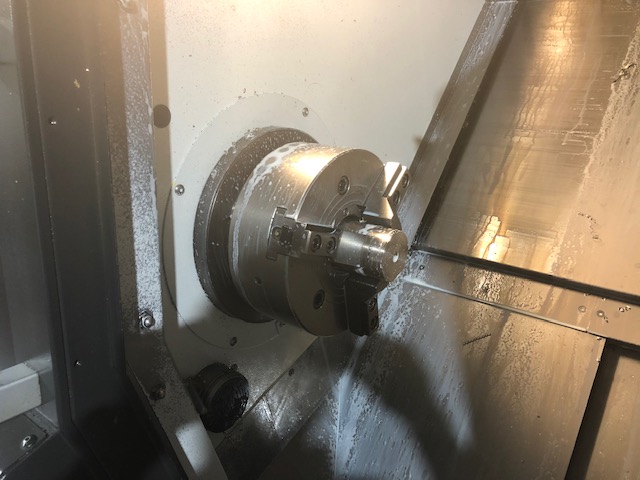

  • 10" Kitagawa BB210 Hydraulic Chuck
  • Digital Tailstock
  • LNS Turbo Chip Conveyor (Side Exit)

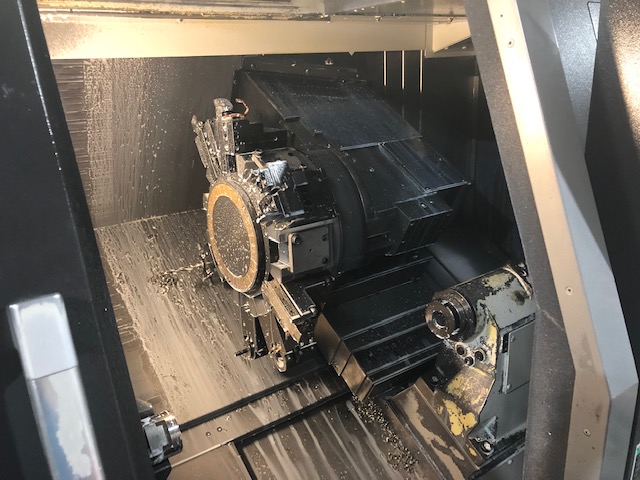

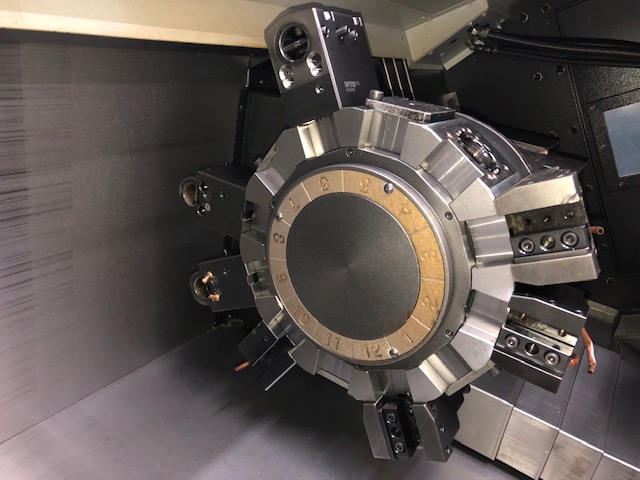

  • Servo Driven Turret
  • Tool Presetter (Removable)
  • ChipBlaster High Pressure Coolant
  • Automatic Parts Catcher
  • (2) OD Live Holders
  • (3) Boring Bar Holders
  • (2) Turning Holders
  • (1) Cutoff Holder
  • (1) Bar Puller
  • (9) Spindle Liners

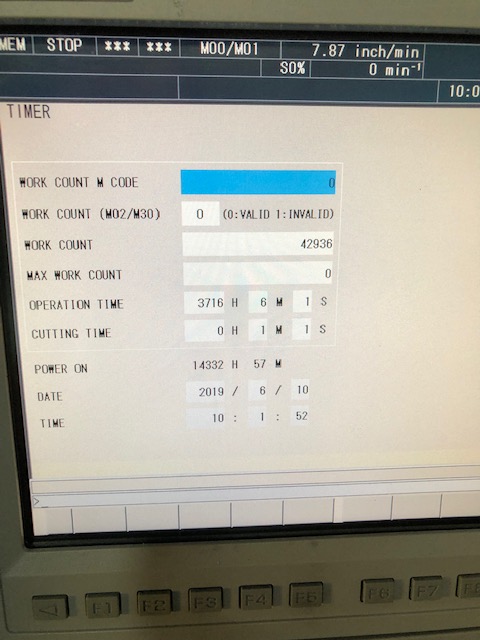

  • 14,332 Hours Power On Time
  • 3,716 Hours Operation Time
  • Manufactured February 2010
