2010 MIYANO BNJ-51SY2

Fanuc 32iA, 2" Bar, 6" & 5" Chucks, 3.9" Length, 15 HP, 5000 RPM, Y-Axis, Two Turrets, Sub Spindle, Barfeed, APC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6"
  • Max Diameter Bar Capacity 2"
  • Max Machining Length 3.93"
  • Spindle Motor 15 HP
  • Spindle Speed 50 - 5000 RPM
  • Spindle Bore 2.4"
  • Tools 12 / 24
  • Milling Motor 3.3 HP
  • Milling Speed 0 - 6000 RPM
  • Sub Spindle Chuck Size 5"
  • Sub Spindle Motor 7.5 HP
  • Sub Spindle Speed 50 - 5000 RPM
  • Y-Axis Travel +/- 1.57"
  • C-Axis Index .001 Degrees
  • Machine Weight 11,000 lbs.

Product Features

  • Fanuc 32iA CNC Control
  • 7" Color LCD

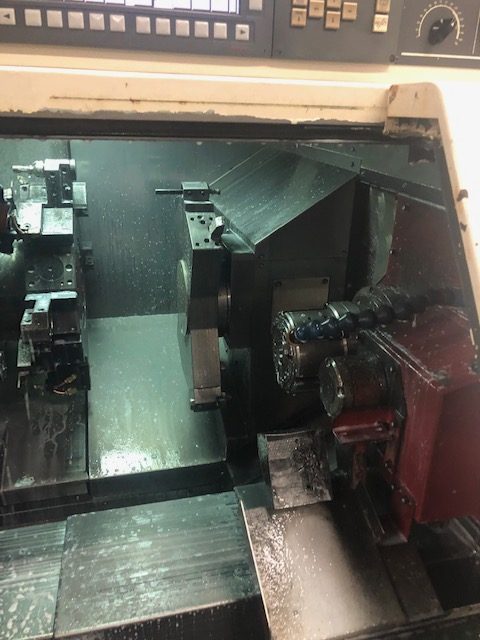

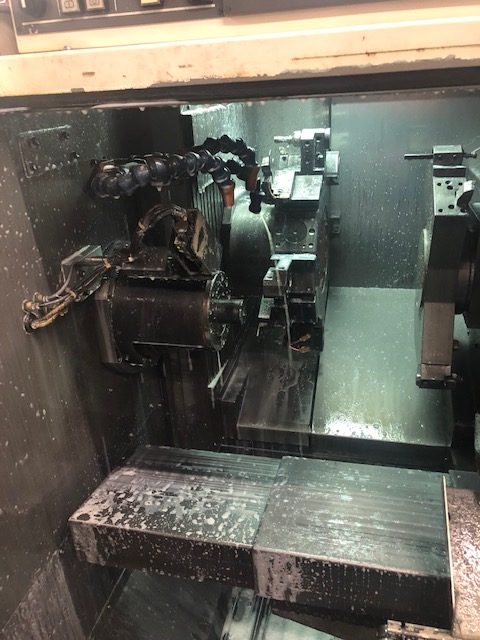

  • Main & Sub Spindles with Y-Axis & Two Turrets
  • Collet Chucks for Main & Sub Spindle

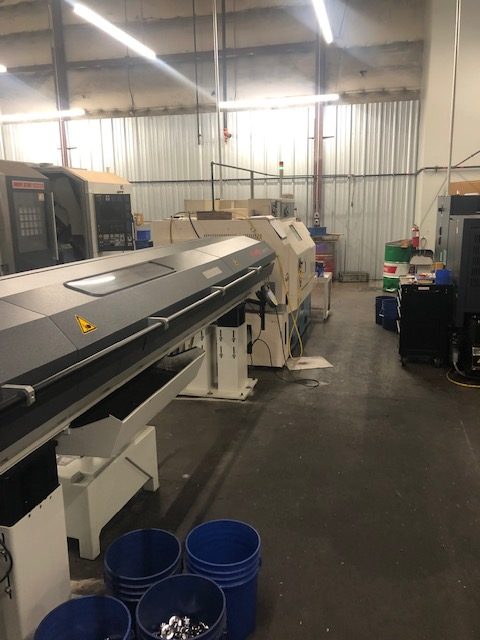

  • Edge Technologies FMB Turbo 5-55 Magazine 12 Ft. Barfeed
  • 12/24 Position Left Turret
  • (6) Position Right Turret
  • Auto Parts Catcher

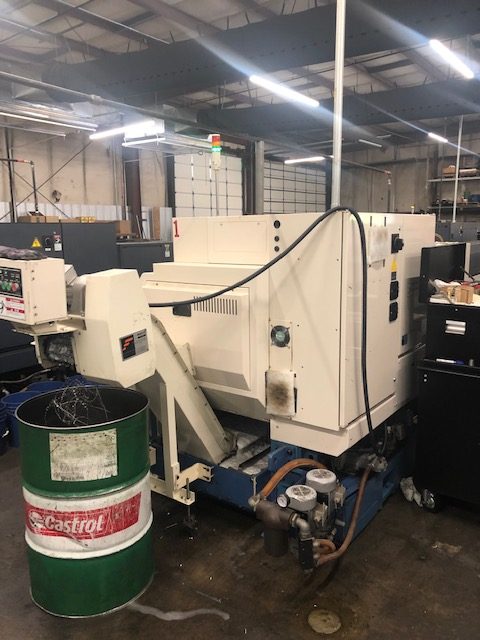

  • Chip Conveyor (Side Exit)
  • Three Color Tower Light

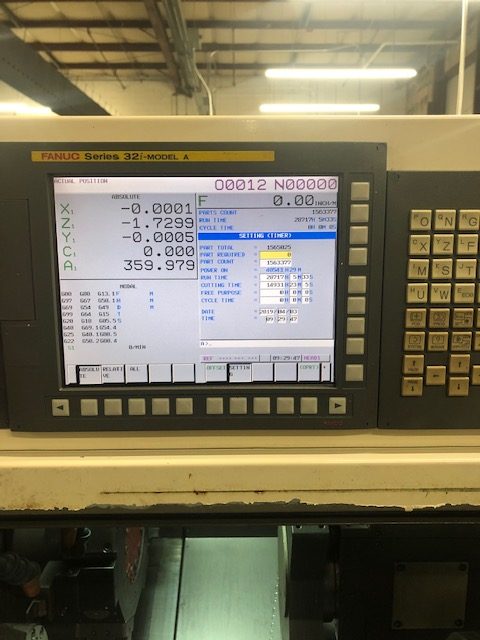

  • 40,541 Power On Time
  • 28,717 Run Time
  • 14,931 Cutting Time
