Special Item

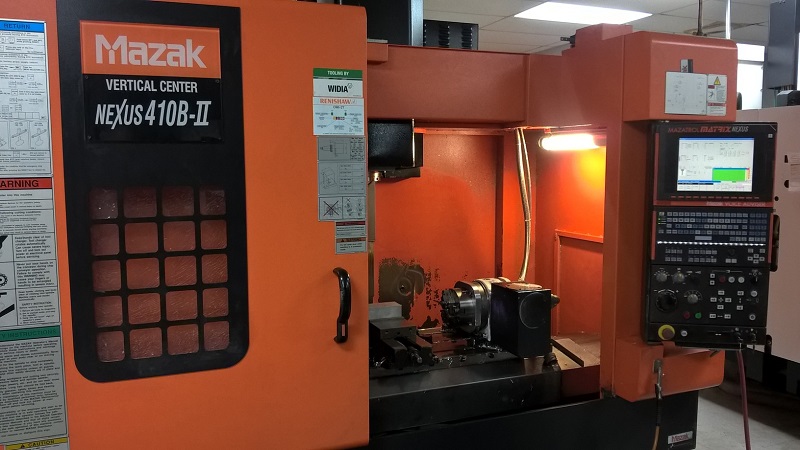

2010 MAZAK NEXUS VCN-410BII

Matrix Nexus, 41.20.20", 12000 RPM, Cat 40, 25 HP, 30 Tools, TSC, Rotary Table, Renishaw Probe, Chip Conveyor, ATLM
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 30"
  • Y-Axis 16.14"
  • Z-Axis 20.08"
  • Table Size 43" x 16"
  • Spindle Speed 12,000 RPM
  • Spindle Motor 25 / 20 / 15 / 10 HP AC
  • Tools 30
  • Rapid Traverse Rates 1417 IPM
  • Max Tool Diameter 3.15" / 4.92"
  • Max Tool Length 13.78"
  • Max Tool Weight 17.64 lbs.
  • Axis Acceleration 0.5G
  • Spindle Acceleration 2.04 Seconds
  • Spindle Nose to Table Top 5.9" - 25.98"
  • Tool Change Time (T - T / C - C) 1.3 / 2.9 Seconds

Product Features

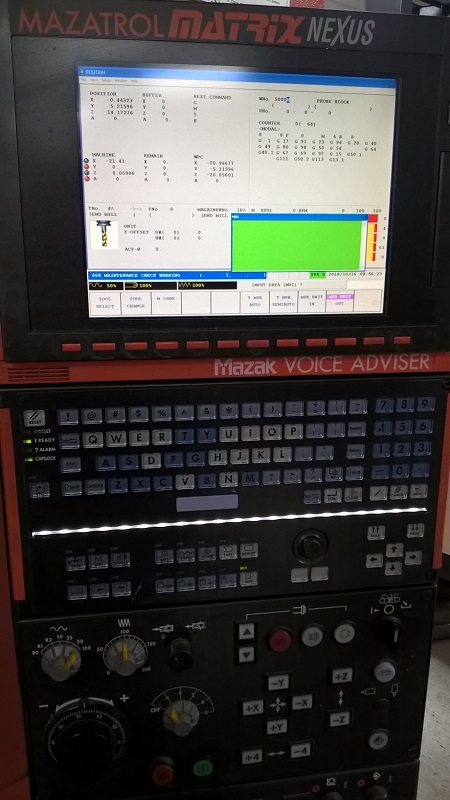

  • MAZATROL Matrix Nexus CNC Control
  • 12" Color TFT
  • PC/MCIA Interface
  • Conversational Programming
  • Rigid Tapping
  • Through Spindle Coolant (213 psi)

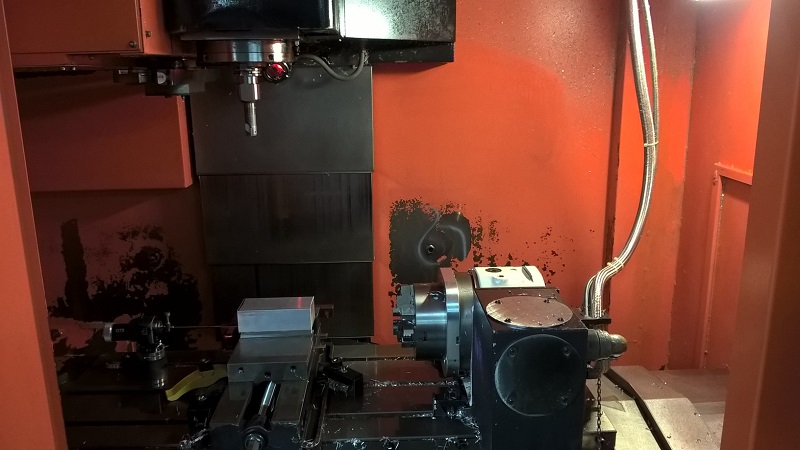

  • 8" Fourth Axis Rotary Table
  • Renishaw Touch Probe
  • Auto Tool Length Measurement System
  • Jorgensen Chip Conveyor (Left Side Exit)
  • (4) Chip Augers
  • Manufacture Date October 2010
  • 15,749 Power On Time
  • 10,187 Auto Operation Time
  • 264 Auto Cut Time
  • 8865 Total Cut Time
  • 26,544 Total Time
