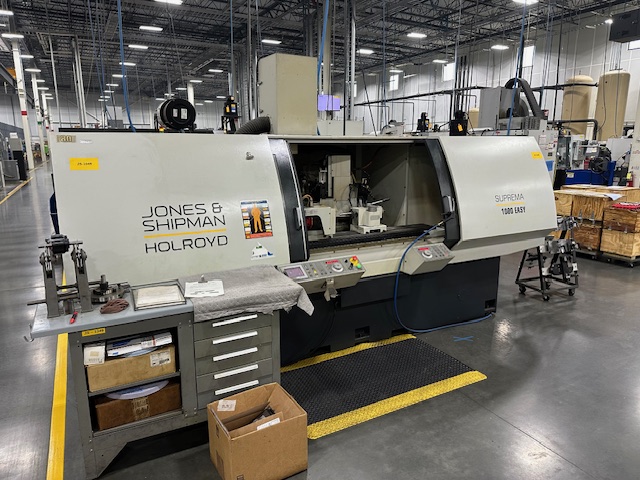

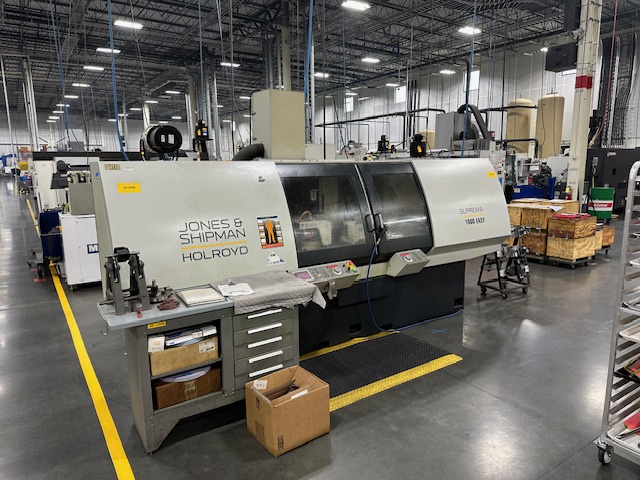

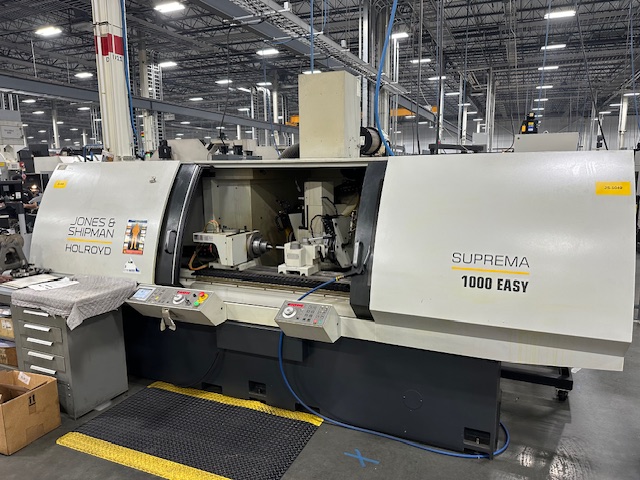

2010 JONES & SHIPMAN Suprema Easy 1000 CNC Cylindrical Grinder

Fanuc PowerMotion, 11.8" Dia, 39.4" Length, 13.8" Dia Wheel, 5.63 HP, 33 MS Wheel Speed, ID Attachment, Tailstock, Coolant with Paper Filtration
Talk to a representative today!
(803) 548-8000

Product Details

  • Center Height 6.3"
  • Electronic Handwheel Increment 0.001 / 0.010 / 0.100 mm
  • Internal Grinding Spindle Motor 3 HP
  • Left Hand Wheel (Diameter x Width x Bore) 15.7" x 1.97" x 5"
  • Machine Weight 13,200 lbs.
  • Max Grinding Diameter 11.8"
  • Max Grinding Length 39.4"
  • Right Hand Wheel (Diameter x Width x Bore) 13.8" x 1" x 5"
  • Table Swivel +8.2 / -8.2 Degrees
  • Table Traverse Distance 45"
  • Table Traverse Speed, Stepless, Per Min 0.0001 mm - 12 m
  • Wheel Speed 33 M / Sec
  • Wheelhead Motor 5.63 HP
  • Wheelslide Infeed Rate Per Minute 0.0001 - 6 mm
  • Wheelslide Infeed 10.24"
  • Workhead Speed Range 0 - 660 RPM
  • Workhead Spindle Taper 5 / 3 MT
  • Workhead Swivel Range - 15 to + 90 Degrees

Product Features

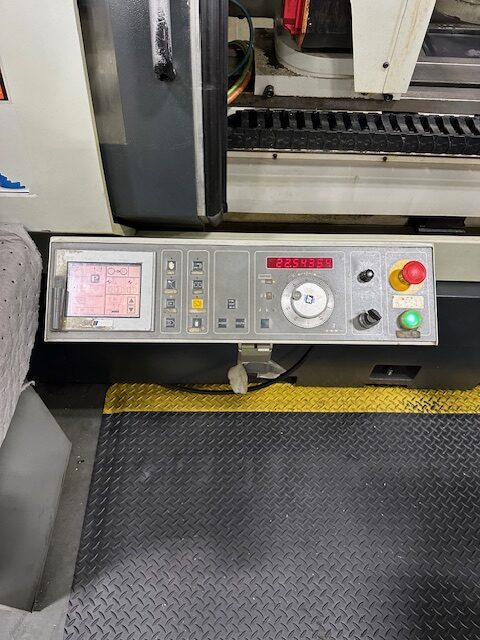

  • FANUC PowerMotion CNC Control
  • 7" Color LCD
  • USB Port
  • "Self Teach" Easy Touchscreen Control
  • Swivelling Universal Wheelhead with Air Cushion and Pneumatic Clamping
  • Left and Right Hand Grinding Wheels
  • Internal Grinding Attachment
  • Swivel Base Workhead
  • Coolant System with Paper Filtration
  • Robust Lever Operated Plani Bearing High Accuracy Taper Correction Tailstock
  • Fanuc Digital AC Servo Motors
  • Automatic Lubrication
  • Heavy Duty Box Way Construction
