< Back to Lathes
Special Item

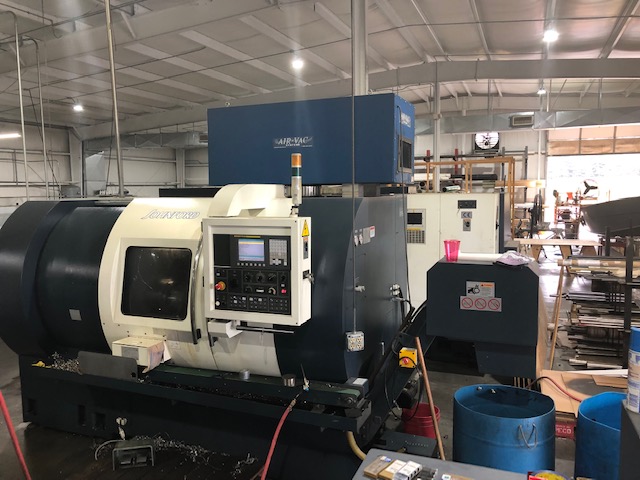

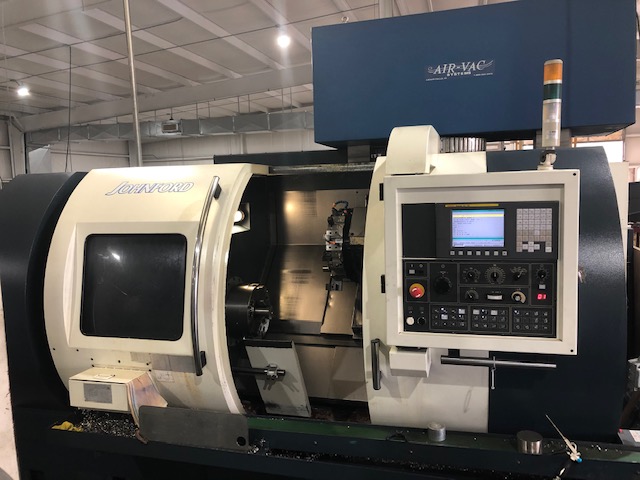

2010 JOHNFORD SL-500A

Fanuc 0i-TD, 4" Bar, 12" Chuck, 2800 RPM, 12 Tools, 35 HP, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Diameter Bar Capacity 4.13"
  • Max Swing Over Bed / Carriage 22.8" / 17.7"
  • Spindle Motor 35 HP
  • Spindle Speed 2800 RPM
  • Spindle Nose A2-11
  • Spindle Bore 4.53"
  • Tools 12
  • Rapid Traverse Rate (X / Z) 787 / 944 IPM
  • X-Axis Travel 11.4"
  • Z-Axis Travel 25.6"
  • Turret Index (Single Step) 0.2 Seconds
  • Machine Dimensions (L x W x H) 177" x 83" x 89"
  • Machine Weight 15,000 lbs.
  • Distance Between Centers 28"
  • Max Machining Diameter 17.7"
  • Tailstock Taper MT #5

Product Features

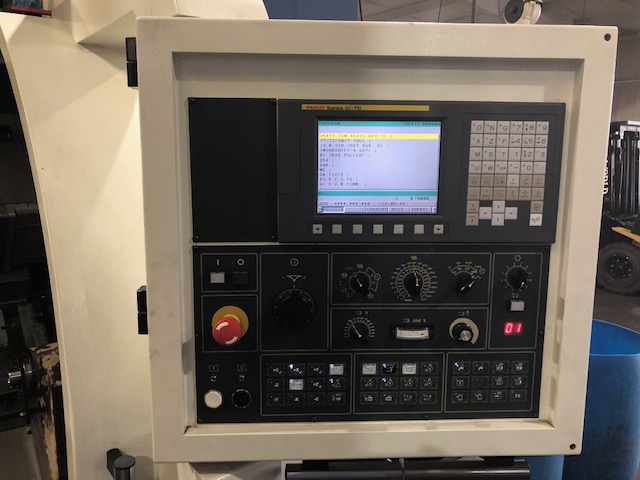

  • FANUC 0i-TD CNC Control
  • PC/MCIA Interface
  • 10.4" Color LCD

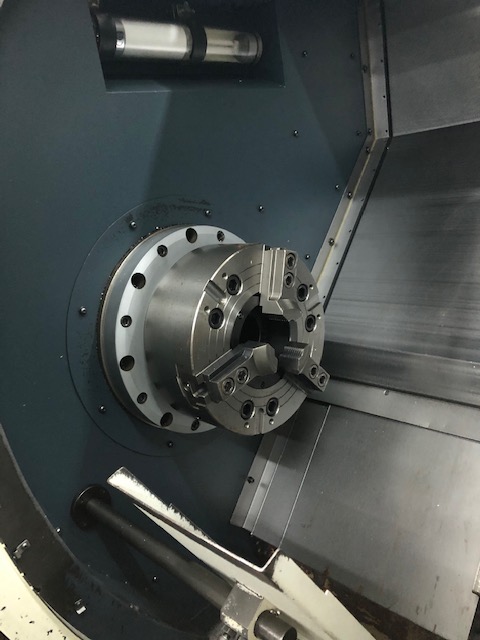

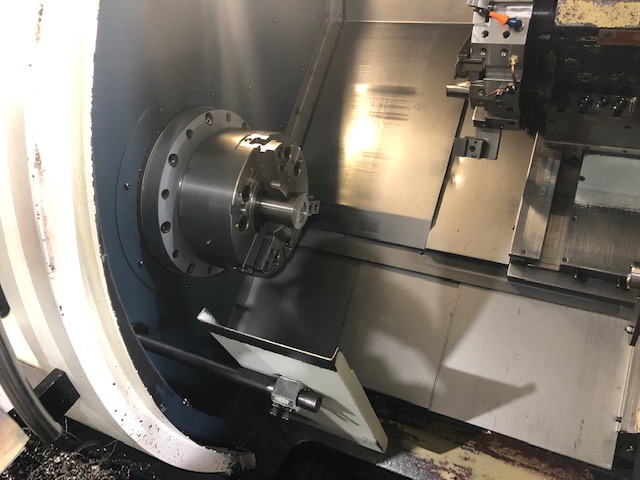

  • 12" Auto Strong NB212 Hydraulic Chuck
  • Programmable Tailstock
  • Automatic Parts Catcher
  • Parts Exit Conveyor
  • Chip Conveyor(Side Exit)
  • Two Speed Gearbox

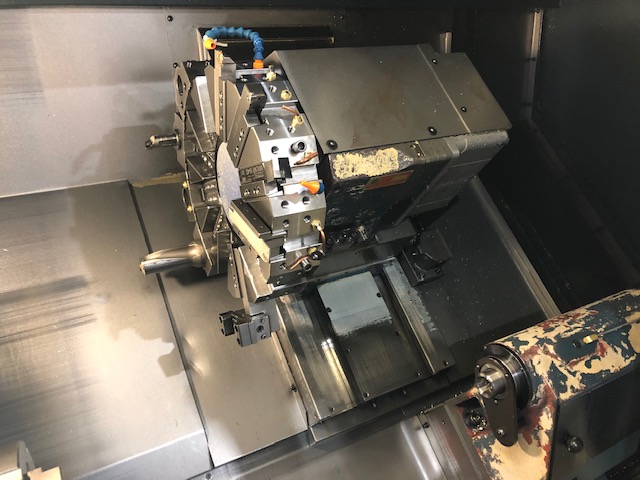

  • Servo Driven Turret

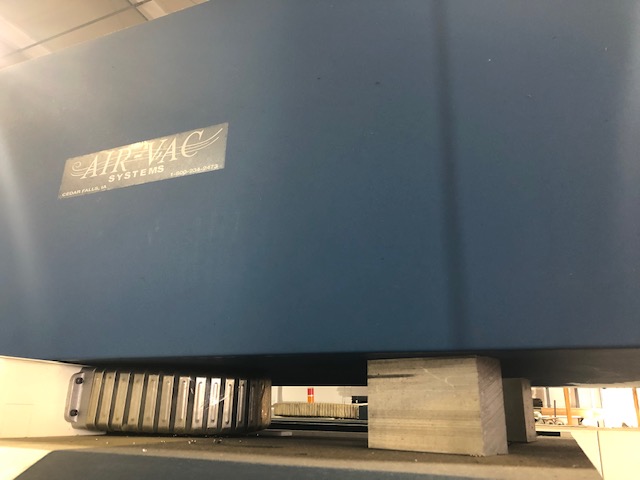

  • AIRVAC Systems Dust Collector
  • Color Tower Light
  • (4) Boring Bar Holders
  • (3) OD Wedge Blocks
  • (1) Cutoff Holder
  • (1) Bar Puller
  • (3) Metal & (4) Plastic Spindle Liners
  • Manufactured March 2010
  • 10,494 Hours Power On Time
  • 1,922 Hours Run Time
  • 1,393 Hours Cutting Time
