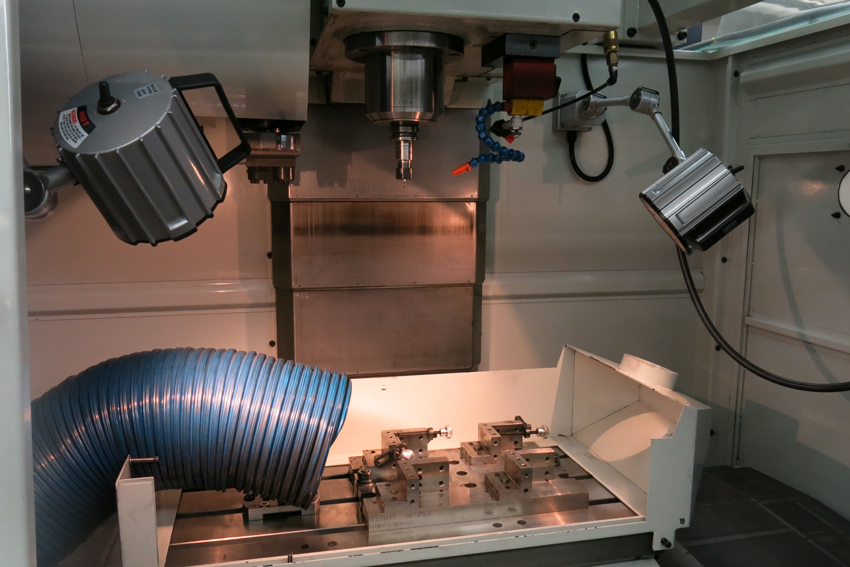

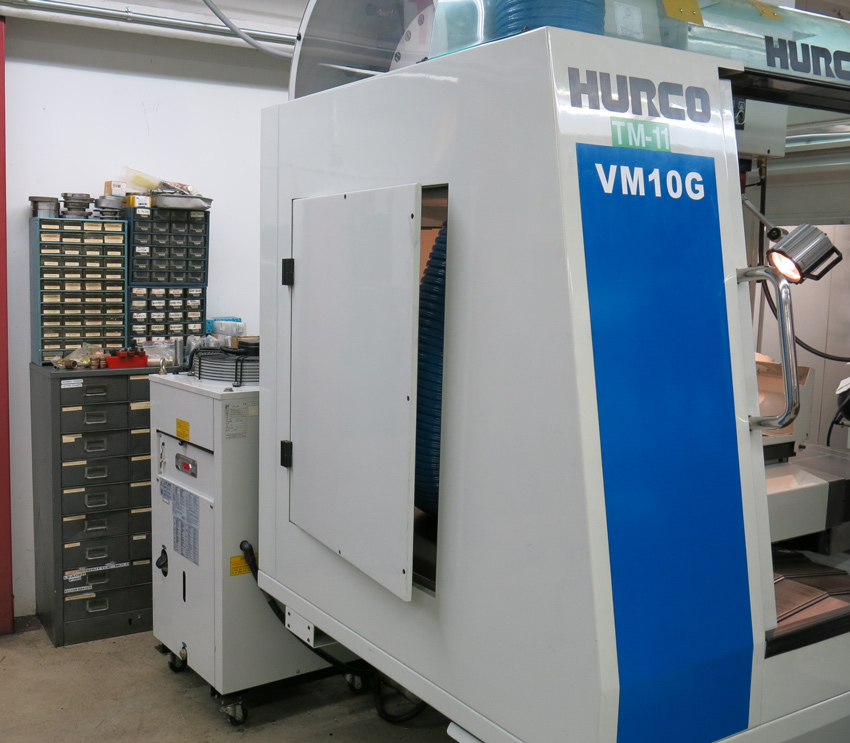

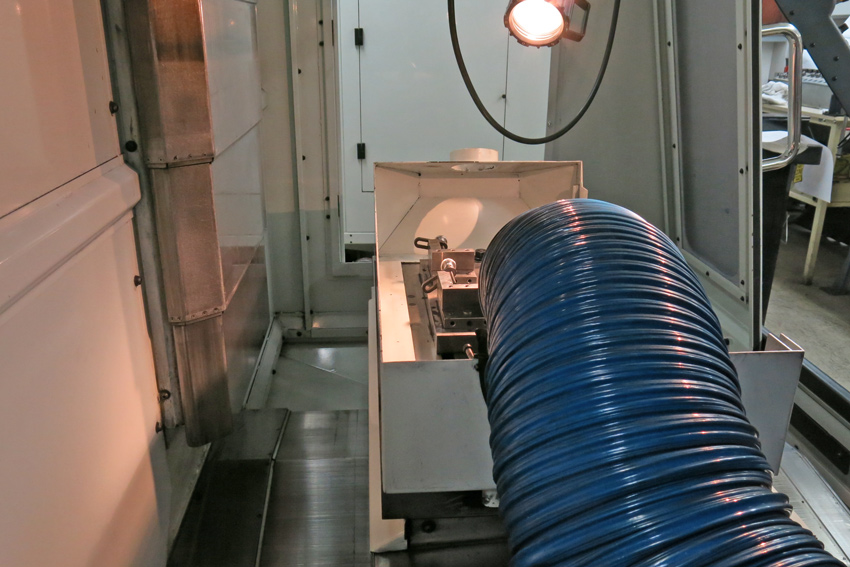

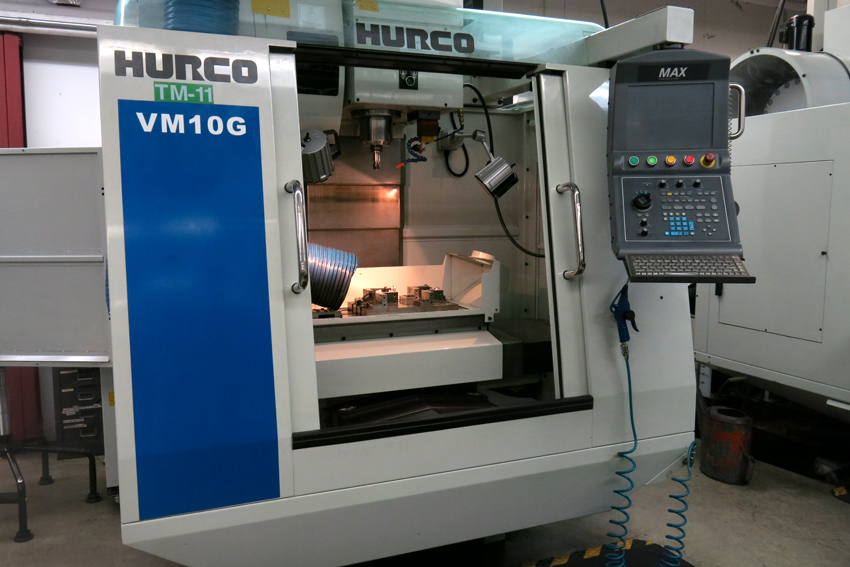

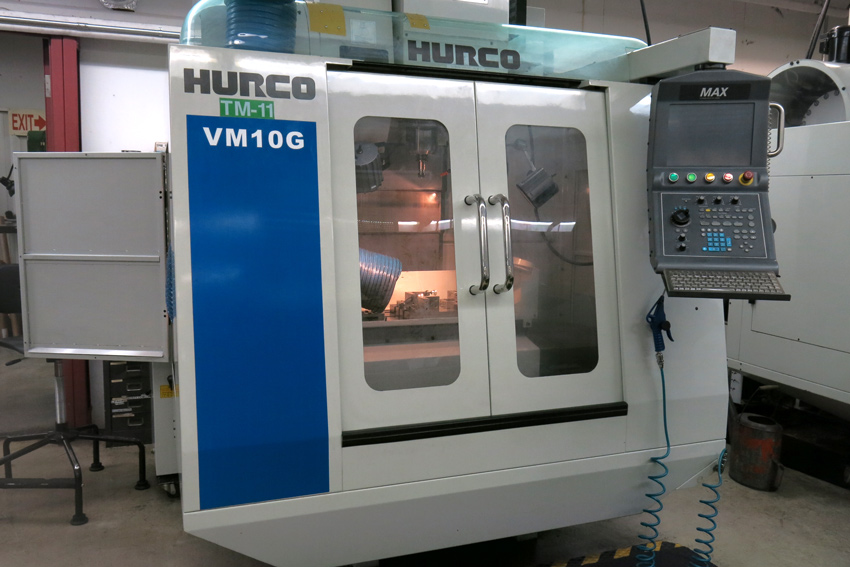

2010 HURCO VM10G

WinMax, 26.16.20", 30000 RPM, BT30, 15 HP, 20 Tools, Graphite Package, Chiller Unit
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 26"
  • Y-Axis 16"
  • Z-Axis 20"
  • Table Size 30" x 16"
  • Spindle Speed 30,000 RPM
  • Spindle Taper BT 30
  • Spindle Motor 15 HP
  • Tools 20
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates 945 IPM
  • Machine Dimensions (L x W x H) 117.9" x 103.1" x 99.6"
  • Machine Weight 6200 lbs.
  • Spindle Nose to Table Top 4" - 24"

Product Features

  • Win Max CNC Control
  • 10.4" Color LCD
  • 30000 RPM Spindle Speed
  • Graphite Package
  • 20 Position Side Mount Tool Changer
  • Full Enclosure with Top Cover
  • Spindle Chiller Unit
  • Alpha Numeric Keyboard
  • Manufacture Date September 2010
  • Approximately (20) BT30 Tool Holders
  • 10,096 Hours
