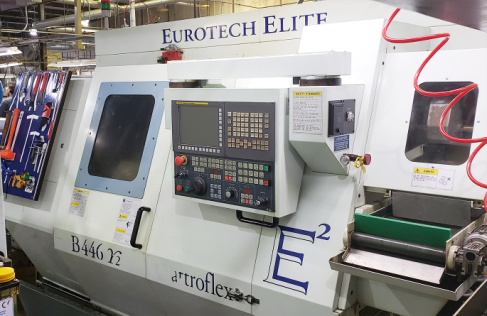

2010 EUROTECH ELITE QUATTROFLEX B446-Y2

Fanuc 31iTT, 2" Bar, Collet Chucks, 20 HP, 5000 RPM, Upper & Lower Turrets, Y-Axis Both Turrets, Sub Spindle, Collet Chucks, Parts Catcher, Exit Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed 20"
  • Spindle Motor 20 HP
  • Spindle Speed 5000 RPM
  • Spindle Bore 2.44"
  • Tools (Upper / Lower Turret) 12 / 12 (All Live)
  • Milling Motor 5 HP
  • Milling Speed 4000 RPM
  • Sub Spindle Bore 2.17"
  • Sub Spindle Chuck 6.5"
  • Sub Spindle Motor 15 HP
  • Sub Spindle Speed 5000 RPM
  • Y-Axis Travel -1.57" / +2.32
  • C-Axis Index (Main & Sub Spindle) .001 Degrees
  • Machine Dimensions (L x W x H) 173" x 85" x 89"
  • Machine Weight 16,000 lbs.
  • Max Turning Diameter 9.6"

Product Features

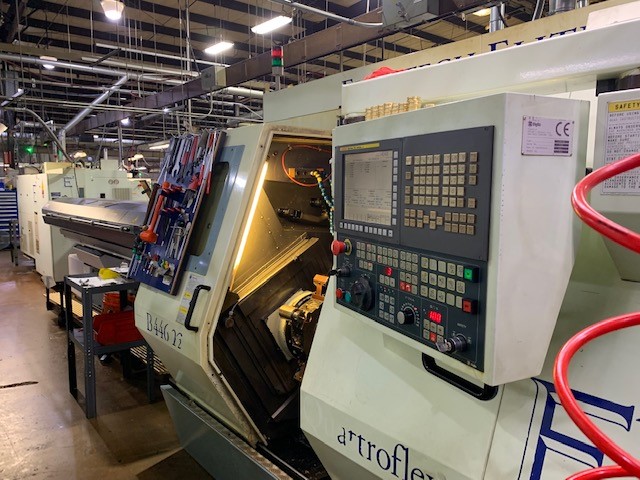

  • FANUC 31iTT CNC Control
  • 10.'4" Color LCD

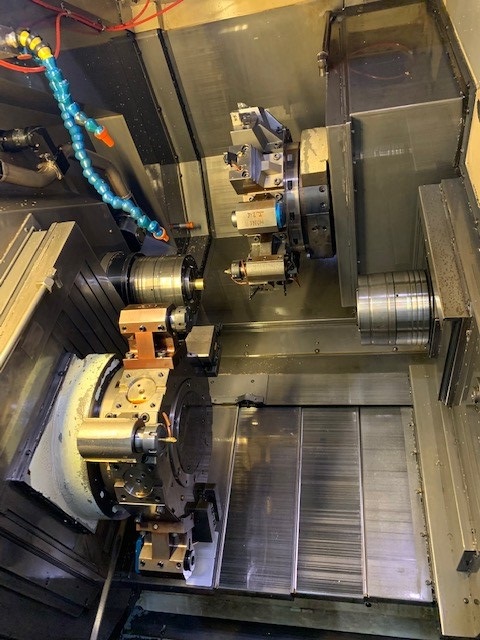

  • Upper & Lower Turrets With Y-Axis Live Tooling Capability
  • Main & Sub Spindles
  • (2) Collet Chucks 60 & 42 mm
  • Automatic Tool Presetter
  • ChipBlaster High Pressure Coolant System
  • Chip Conveyor (Hinge Type Side Exit)
  • Barfeed Interface
  • (2) MT 10.57.60.00 Radial Boring Bar Holder 20 mm
  • (2) MT 10.57.60.00 Low Profile Radial Boring Bar Holder 20 mm
  • (6) MT 10.88.14.01 Sub Spindle Turning Toolholder
  • (4) Turning Tool Holders 3/4"
  • (2) MT Double Boring Bar Holders
  • (1) MT Triple Boring Bar Holder
  • (4) MT Cut Off Holders
  • (1) Face Live Holder 22 mm Tang ER32
  • (2) Face Live Holder 18 mm Tang ER32
  • (1) OD Live Holder for Internal Polygon Cutting
  • (9) Collets

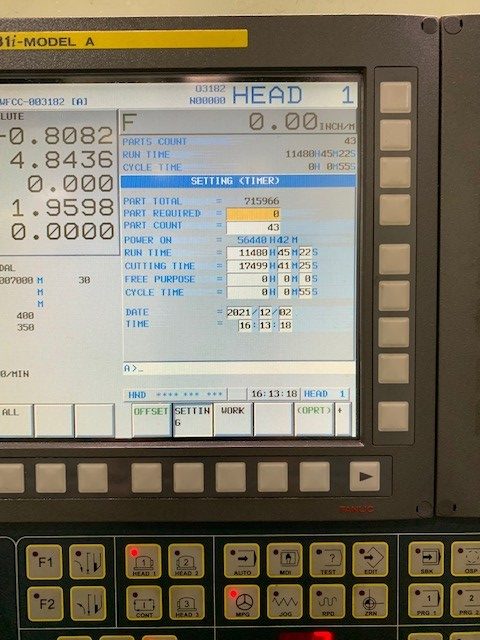

  • 56,440 Power On Time
  • 11,400 Run Time
  • 17,499 Cutting Time
