Special Item

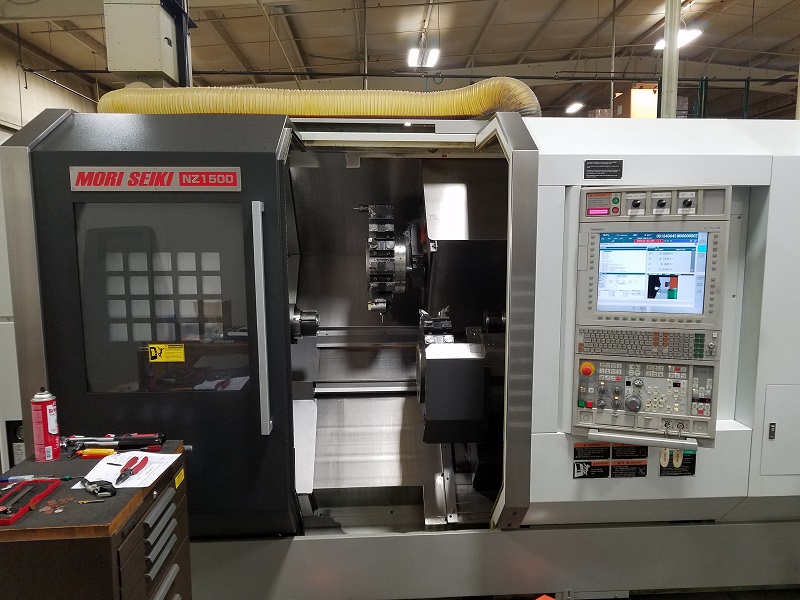

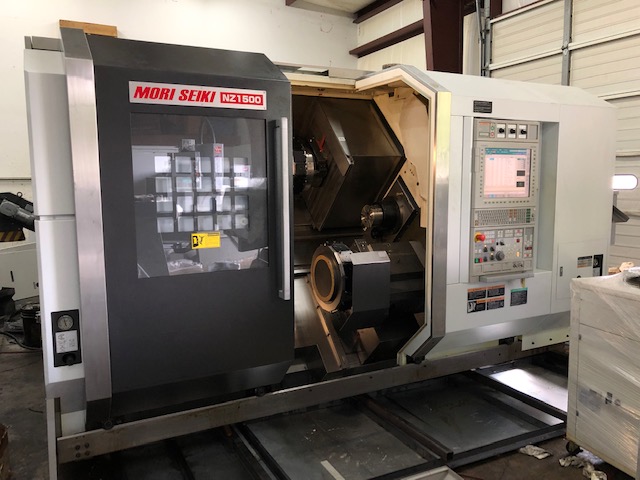

2010 DMG MORI SEIKI NZ-1500 T2Y2

MSX-701IV, 2" Bar, (2) 6" Chucks, 6000 RPM, 16+16 Tools, 33 HP, Y-Axis, Upper & Lower Turrets, Twin Opposed Spindles, APC, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6" (2)
  • Max Diameter Bar Capacity 2.01"
  • Max Swing Over Bed 31.5"
  • Turning Diameter (Max / Std) 12.5" / 7.9"
  • Max Machining Length 31.9"
  • Spindle Motor (L & R) 33.3 / 29.3 HP
  • Spindle Speed (Left & Right) 6000 RPM
  • Spindle Nose (Left & Right) A2-5
  • Spindle Bore 2.4"
  • Tools 16 x 2 (All Live)
  • Milling Motor 10 HP
  • Milling Speed 6000 RPM
  • Sub Spindle Travel 36.2"
  • Rapid Traverse Rates (X / Z) 1181 / 1968 IPM
  • X-Axis Travel (Upper & Lower Turrets) 8.3"
  • Z-Axis Travel (Upper & Lower Turrets) 31.9"
  • Y-Axis Travel 4.3"
  • C-Axis Index (Left & Right Spindles) .001 Degrees
  • Machine Dimensions (L x W x H) 154.7" x 145" x 91.3"
  • Machine Weight 18,000 lbs.

Product Features

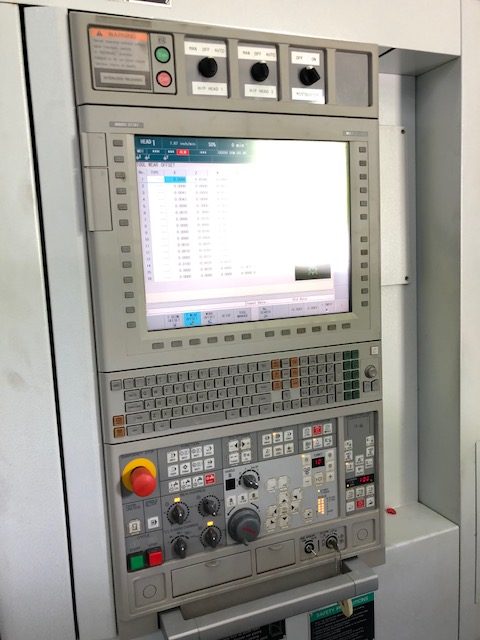

  • MORIC MSX_701IV CNC Control
  • 10.4" Color TFT

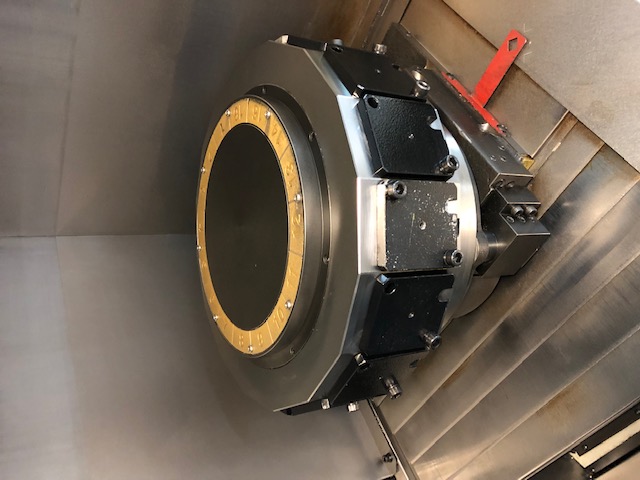

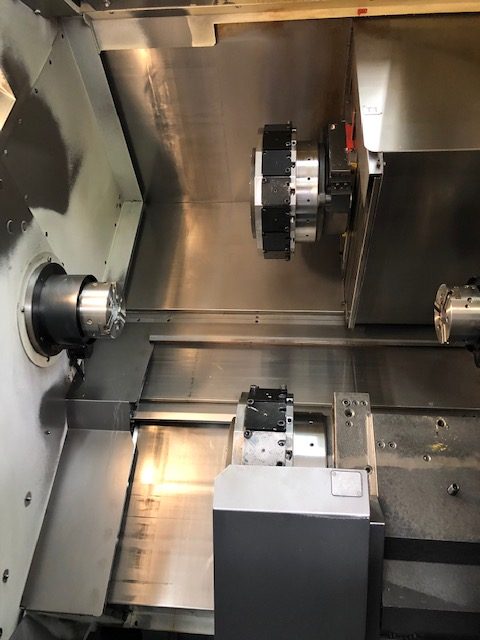

  • Twin Opposed Identical Spindles with Upper & Lower Turrets
  • Y-Axis Live Tooling on Both Turrets

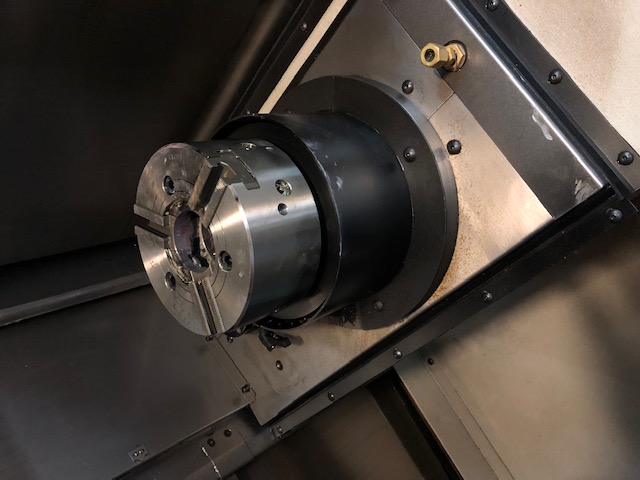

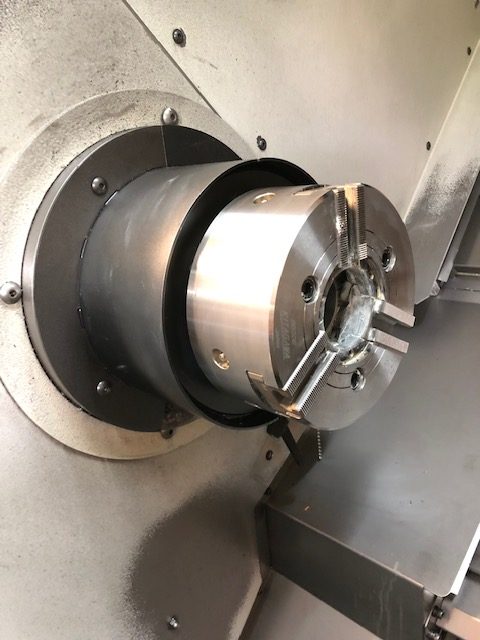

  • 6" Kitagawa B206 Hydraulic Chucks on Left & Right Spindles
  • Auto Parts Catcher
  • Parts Exit Conveyor

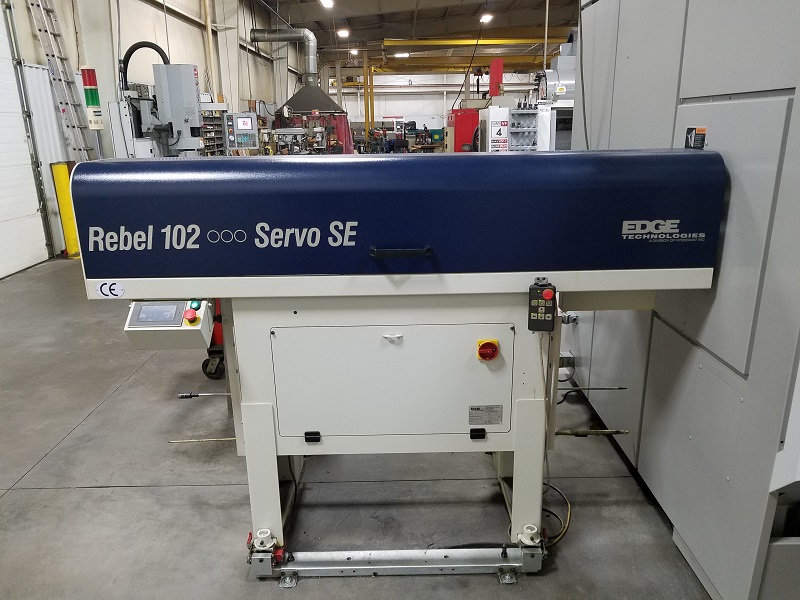

  • Edge Technologies Rebel 102 Servo SE Short Magazine Barfeed
  • Cooljet High Pressure Coolant System
  • Manufacture Date November 2009
  • Installed in January 2010
  • 18,686 Power On Time
  • 8520 Operation Time (Head 1) 8155 (Head 2)
  • 4051 Cutting Time (Head 1) 3269 (Head 2)
