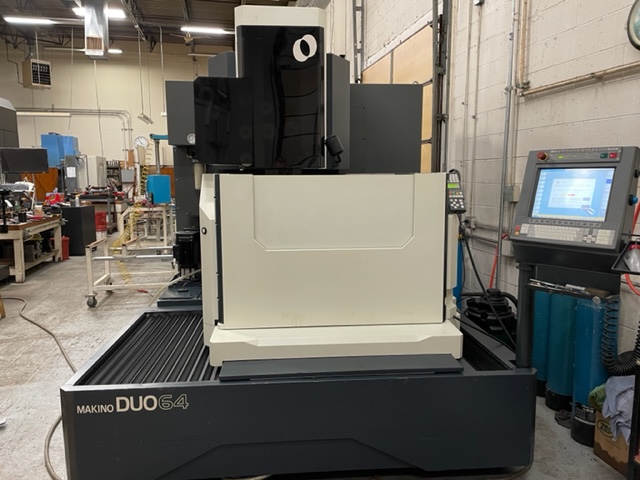

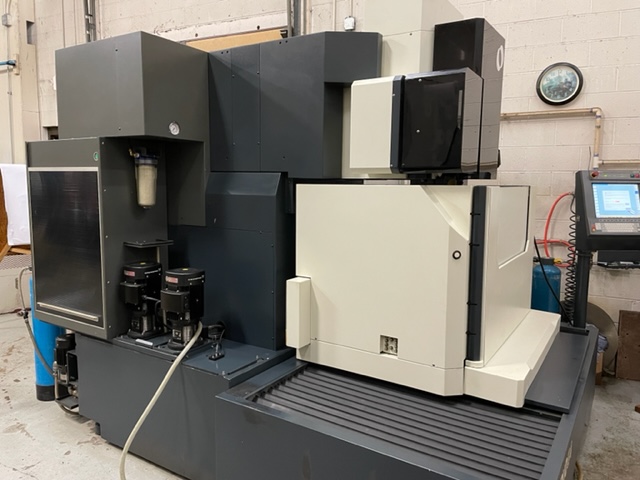

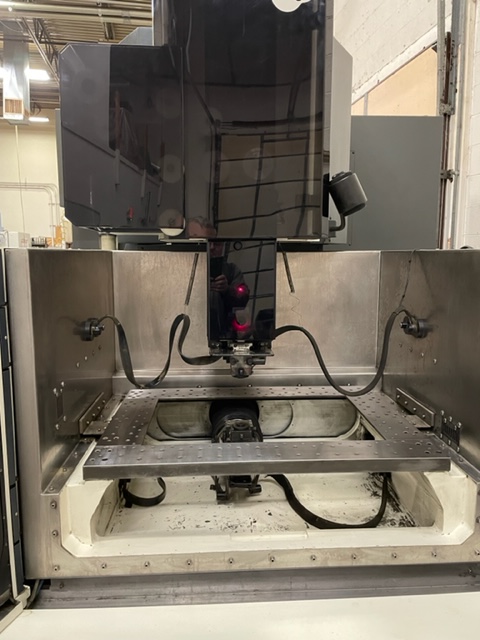

2009 MAKINO DUO 64 CNC WIRE EDM

MGW-S6, 26.16.16", 44.32.16" Part Size, Auto Wire Threader, Submerged Cutting, Chiller Unit
Talk to a representative today!
(803) 548-8000

Product Details

  • Dielectric Reservoir Capacity 261.5 Gallons
  • Max Part Size 44" x 31.9" x 16.5"
  • Max Part Weight 2645 lbs.
  • Table Size 36.6" x 26.8"
  • U/V Axis Travel +/- 3.78"
  • Wire Spool Weight 35 lbs.
  • X-Axis Travel 25.6"
  • Y-Axis Travel 15.7"
  • Z-Axis Travel 16.5"

Product Features

  • MGW S6 CNC Control
  • Auto Wire Threading
  • Submerged Cutting
  • 128 Work Coordinates
  • Cylinder Center Measurement
  • Workpiece Edge Positioning
  • Work Parallelism
  • Measurement Hole Centering
  • Groove Width Centering
  • Wire Vertical Alignment
  • Plate Width Centering
  • Corner Edge Positioning
  • Work Coordinate Preset
  • Auto Measurement & Machining
  • Mirror Image
  • Installed January 2009
  • Manufacture Date October 2008

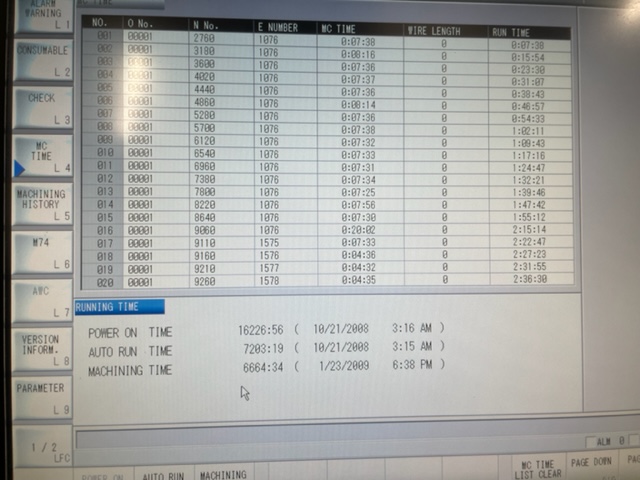

  • 16,226 Hours Power On Time
  • 7,203 Hours Auto Run Time
  • 6,664 Hours Machining Time
