< Back to Lathes
Special Item

2009 HAAS TL-1

2" Bar, 8" Chuck, 2000 RPM, 7.5 HP, Tailstock, Intuitive Programming, Tool Post, Coolant Pump
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 16" / 9.5"
  • Max Machining Length 29"
  • Spindle Motor 7.5 HP
  • Spindle Speed 2000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.31"
  • Rapid Traverse Rates (X / Z) 75 / 150 IPM
  • X-Axis Travel 8"
  • Z-Axis Travel 29"
  • Machine Dimensions (L x W x H) 81" x 68" x 77"
  • Machine Weight 4100 lbs.
  • Distance Between Centers 29"
  • Max Turning Diameter 16"
  • Spindle Torque 100 ft. lbs.
  • Tailstock Taper MT#4

Product Features

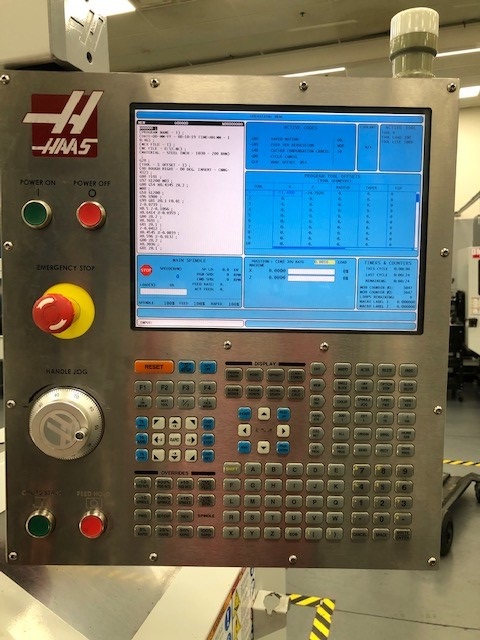

  • HAAS CNC CONTROL
  • 12" Color LCD
  • USB Port
  • CNC, Teach & Manual Programming Modes

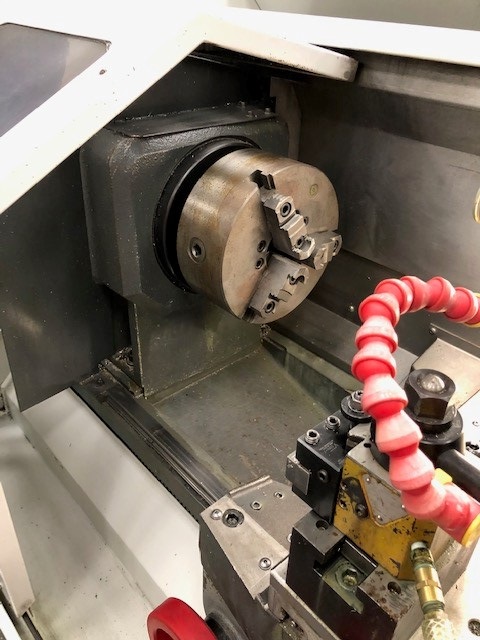

  • 8" Manual 3-Jaw Chuck
  • Rigid Tapping
  • Intuitive Programming System
  • High Flow Coolant Pump
  • Quick Change Tool Post
  • Manual Tailstock
  • Manual/Electronic Handwheels
  • Single or Three Phase Power
  • Full Enclosure
  • Green Indicator Light
  • Worklight
  • Manufacture Date December 2009
  • 5846 Servo Time
  • 919 Motion Time
  • 732 Spindle Time
