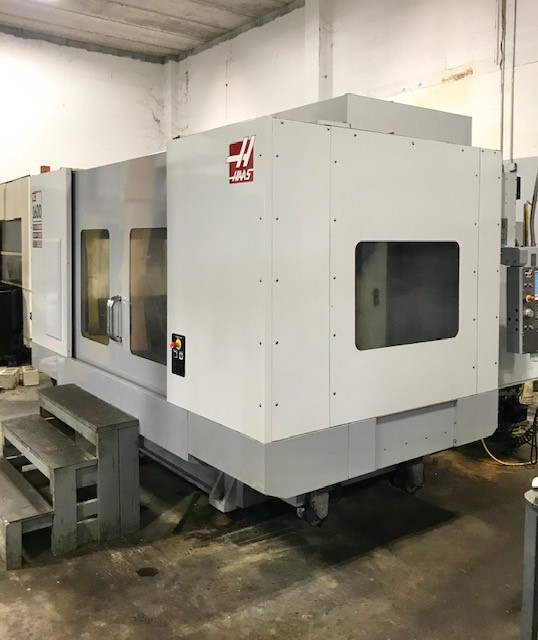

2009 HAAS EC-1600ZT

64.50.40", 6000 RPM, Cat 50, 30 HP, 30 SMTC, Fourth Axis Platter, TSC, WIPS, Dual Augers
Talk to a representative today!
(803) 548-8000

Product Details

  • Pallet Load Capacity 10,000 lbs.
  • X-Axis 64"
  • Y-Axis 50"
  • Z-Axis 40"
  • Spindle Speed 6000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor 30 HP
  • Tools 30
  • Rapid Traverse Rates 540 IPM
  • Tool Change Time (T - T / C - C) 8.0 / 12.6 Seconds
  • Max Tool Diameter 4" / 10"
  • Max Tool Length 20"
  • Max Tool Weight 30 lbs.
  • Machine Weight 31,000
  • Spindle Torque 450 ft. lbs.
  • Table Size 64" x 36"

Product Features

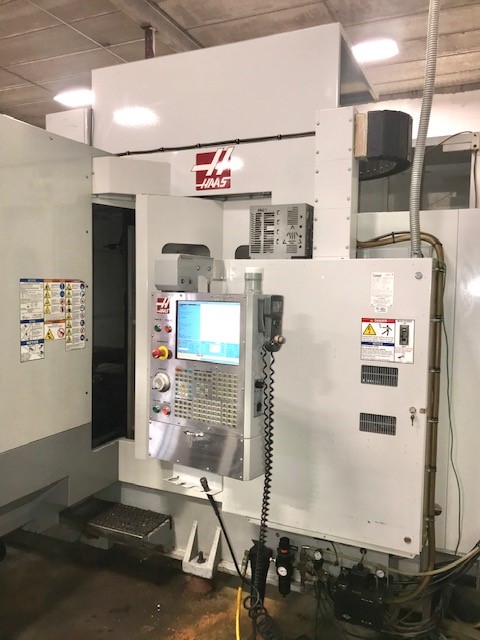

  • HAAS CNC Control
  • 12" Color LCD
  • Built-In 30" Diameter Rotary Platter
  • 40" Extended Z-Axis Travel
  • Through Spindle Coolant
  • 30 Position Side Mount Tool Changer
  • Two Speed Gearbox
  • Wireless Intuitive Probing System
  • Dual Chip Augers
  • Remote Jog Handle
  • Auxiliary Coolant Filter
  • Rigid Tapping
  • Manufacture Date November 2008
  • Installed in 2009
