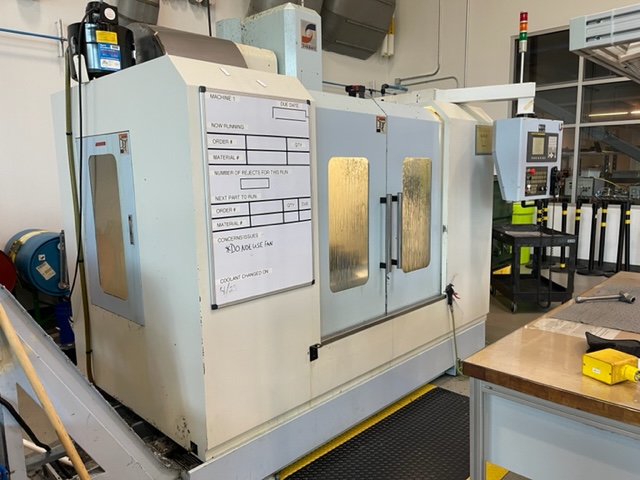

2008 TWINHORN VH-1010

FANUC 0i-MC, 40.20.20", 8000 RPM, Cat 40, 30 SMTC, Chip Conveyor, Remote Jog Handle, Tower Light
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 39.76"
  • Y-Axis 19.7"
  • Z-Axis 20.47"

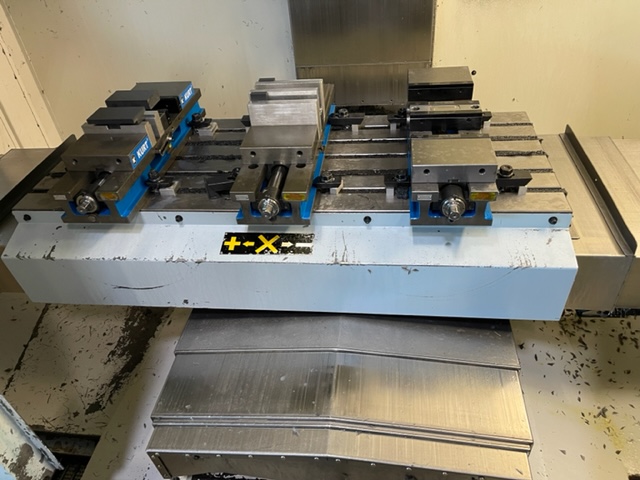

  • Table Size 47.24" x 17.71"
  • Spindle Speed 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 20 / 15 HP AC
  • Tools 30
  • Table Load Capacity 1320 lbs.
  • Rapid Traverse Rate XYZ 1969/min
  • Max Tool Diameter 3.23" / 4.92"
  • Max Tool Length 11.8"
  • Max Tool Weight 15.4 lbs.
  • Machine Dimensions (L x D x H) 117" x 91" x 97"
  • Machine Weight 12,000 lbs.
  • Spindle Nose to Table Top 4.72 - 25.6"

Product Features

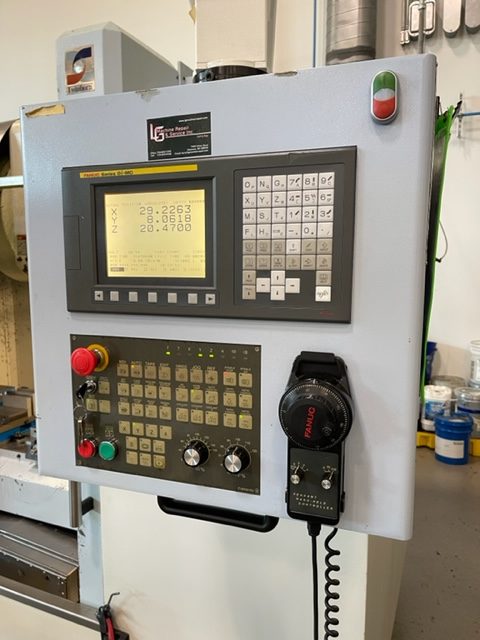

  • FANUC 0i-MC CNC Control
  • 10.4" Monochrome CRT
  • USB Port
  • Chip Conveyor (Front Left Exit Hinge Type)
  • 30 Position Side Mount Tool Changer
  • Rigid Tapping
  • Remote Jog Handle
  • Three Color Tower Light
  • Auto Power Off
  • Spindle Air Blast
  • Manufacture Date August 2008

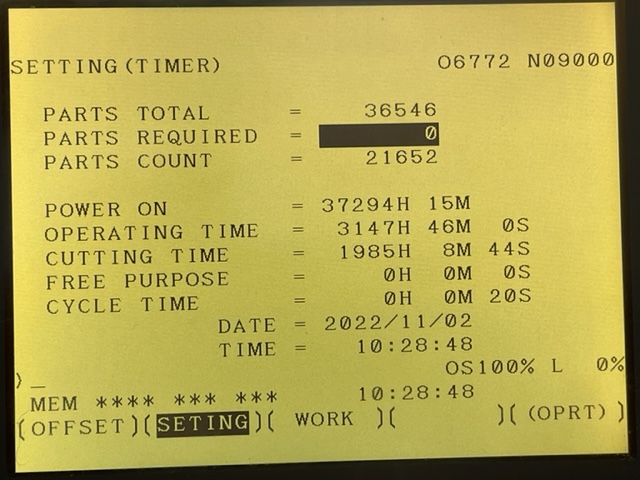

  • 37,294 Power On Time
  • 3147 Operating Time
  • 1985 Cutting Time
