Special Item

2008 OKK HM1250S

Fanuc 310isA, 49.2" Pallets, 67.55.49", Fourth Axis, 60 Tools, 40 HP, Cat 50, 8000 RPM, TSC, Probes, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

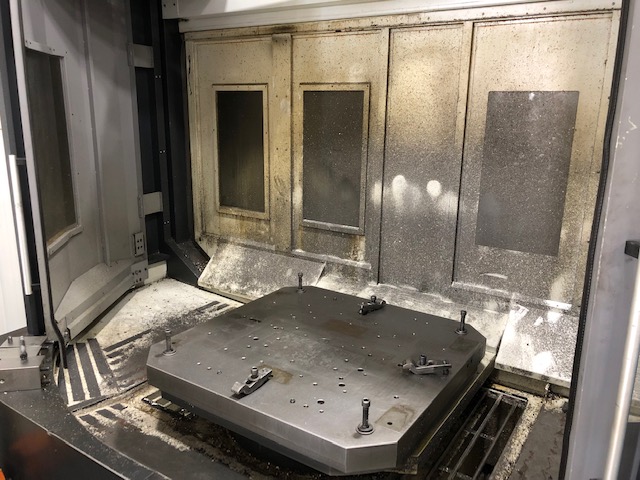

  • Pallet Size 49.2" (2)
  • X-Axis 66.93"
  • Y-Axis Travel 55.12"
  • Z-Axis Travel 48.82"
  • Pallet Index .001 Degrees
  • Spindle Speed 8000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor 40 HP
  • Spindle Center to Table Top 2.76" - 57.87"
  • Spindle Nose to Table Center 14.17" - 62.99"
  • Tools 60
  • Rapid Traverse Rates (X, Y & Z) 1889 IPM
  • Max Tool Diameter 4.53" / 10.63"
  • Max Tool Length 23.62"
  • Max Tool Weight 55 lbs.
  • Max Workpiece Dia/Height 77.56" / 59.84"
  • Machine Weight 72,000 lbs.
  • Table Load Capacity 6600 lbs.

Product Features

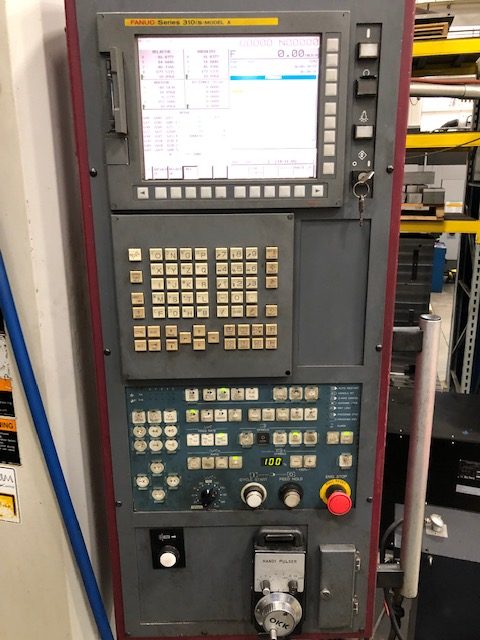

  • Fanuc 310is Model A CNC Control
  • 10.4" Color TFT
  • USB Port
  • PC/MCIA Interface
  • Fourth Axis Rotary Table

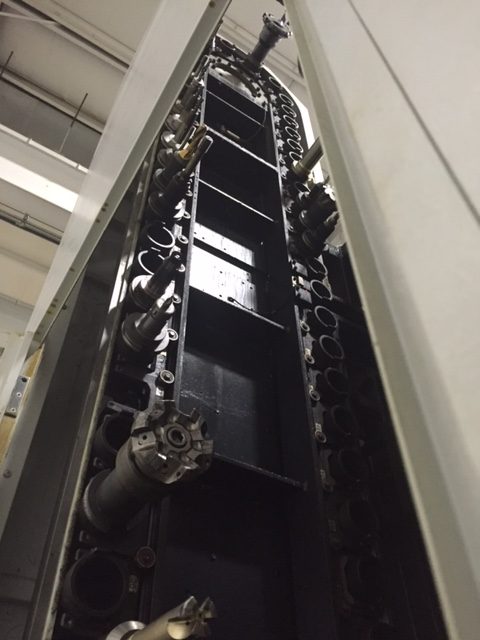

  • 60 Tool Magazine
  • Through Spindle Coolant (1000 psi)

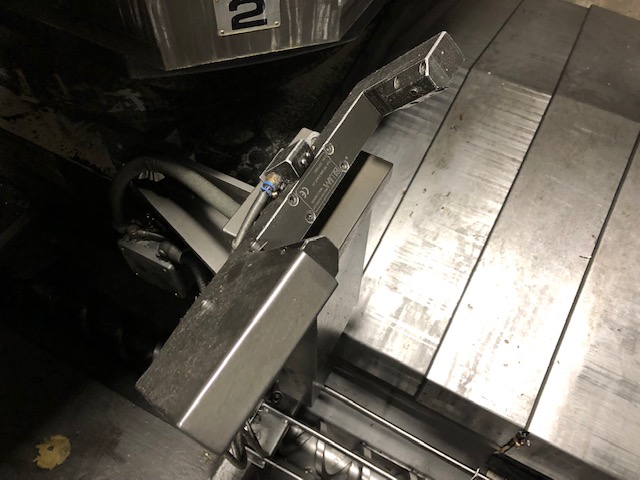

  • Blum Laser Auto Tool Length Measurement & Tool Breakage Detection
  • Renishaw Touch Probe

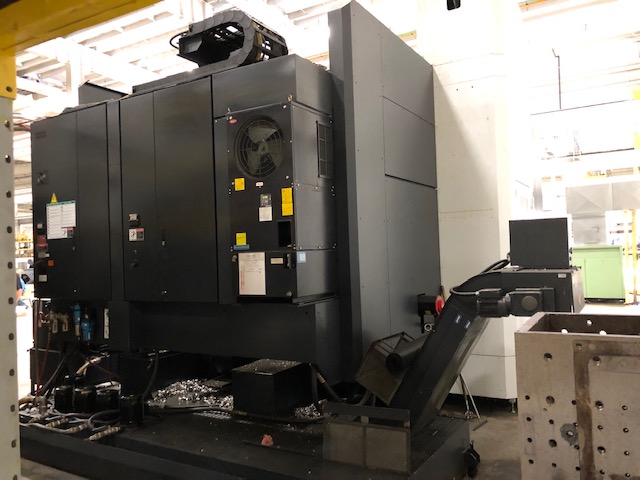

  • Hakusan Chip Conveyor (Left Rear Exit)
  • Dual Chip Augers
  • Spindle Chiller Unit
  • Multi-Tap Transformer
  • Three Color Tower Light
  • Second Reference Point Return
  • 120 Registered Programs
  • 200 Sets of Tool Offsets
  • 128 Pairs of Tool Life Management
  • Digital Servo Function
  • Controllable Axes Expansion
  • Rigid Tapping
  • Manual Pulse Generator
  • Program Restart
  • Stored Pitch Error Compensation
  • Spindle Orientation
  • Inch/Metric Conversion
  • Canned Cycles
  • Automatic Corner Override
  • 48 Pairs of Additional Work Coordinate System
  • Cutter Compensation C
  • Tool Offset Memory C
  • Background Editting
  • Graphic Display
  • Macro Executor
  • Custom Macro B
  • PMC Function
  • Stored Stroke Check 2, 3
  • HQ Control
  • Helical Interpolation
  • 512 KB Program Memory
  • Programmable Mirror Image
  • B-Axis Linear Scales
  • Dual Position Feedback
  • Manufacture Date July 2007
  • Installed in March 2008
  • 18,850 Power On Time
  • 3628 Run Time
  • 10,469 Cutting Time
