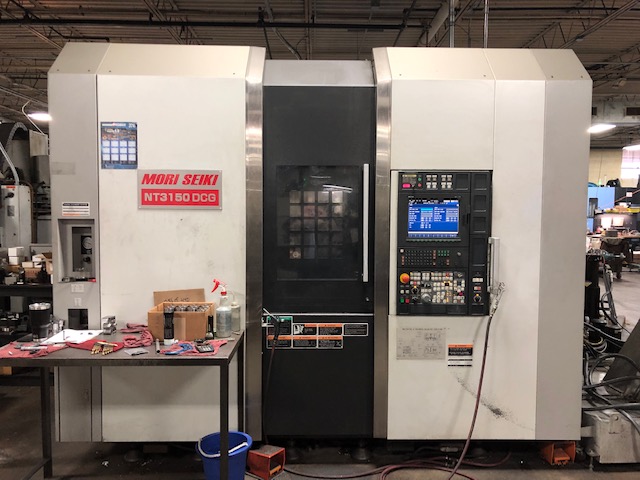

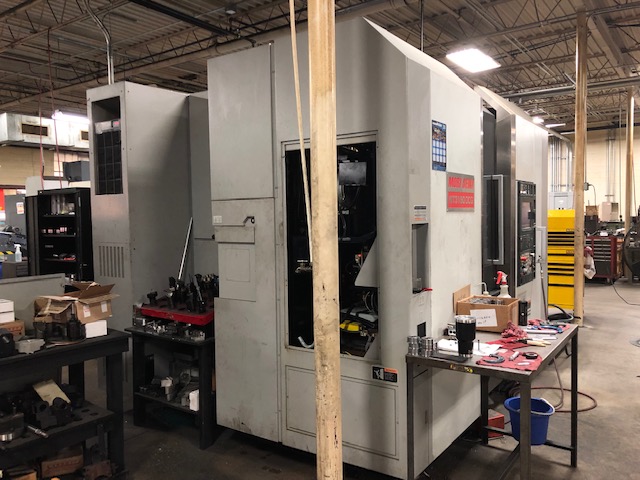

2008 MORI SEIKI NT-3150DCG/500CZ

MSX-711III, 2" Bar, 8" Chuck, 6000 RPM, 40 Tools, 15 HP, B & Y-Axis Milling, Lower Turret, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Max Diameter Bar Capacity 2"
  • Max Swing Over Carriage (Upper/Lower) 23.6"
  • Spindle Motor (L & R) 15 / 10 HP
  • Spindle Speed (L & R) 6000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.4"
  • Milling Motor 7.5 HP
  • Milling Speed 12,000 RPM
  • Rapid Traverse Rates (X&Z) 1968 IPM
  • X-Axis Travel (Upper / Lower) 27" / 5.1"
  • Y-Axis Travel +/- 4.9"
  • C-Axis Index (Main & Sub) .0001 Degree
  • B-Axis Rotation +/- 120 Degrees
  • Machine Dimensions (L x W x H) 146.9" x 114.6" x 99"
  • Machine Weight 35,000 lbs.
  • Chucks Size 8"
  • Distance Between Spindles 49.4"
  • Lower Turret Tools 12
  • Max Tool Diameter 4.9" / 2.7"
  • Max Tool Length 7.8"
  • Max Tool Weight 8.8 lbs.
  • Max Turning Diameter (Upper/Lower) 23.6" / 5.9"
  • Speed Ranges 2
  • Spindle Torque 164.5 ft. lbs.
  • Tool Magazine 40
  • Turret Milling Motor 7.5 HP
  • Turret Milling Speed 6000 RPM

Product Features

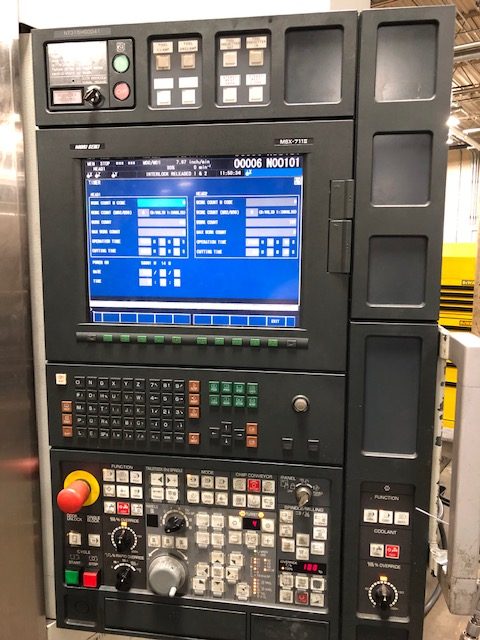

  • MORIC MSX-711III CNC Control
  • 10.4" Color LCD
  • C & Y-Axis Live Tooling Capability
  • Designed at the Center of Gravity

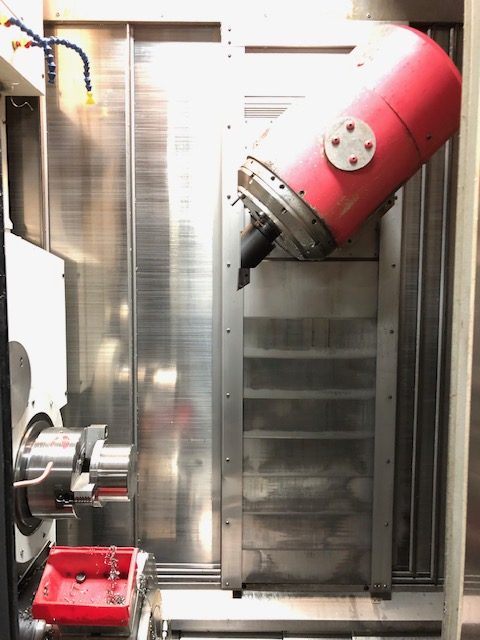

  • Upper Tool Spindle
  • 40 Tool Magazine (Capto C5)

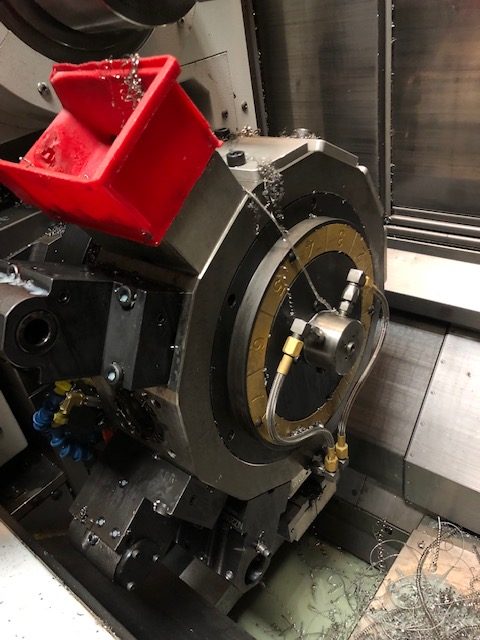

  • Lower 12 PositionTurret
  • Chucker (No Tailstock)

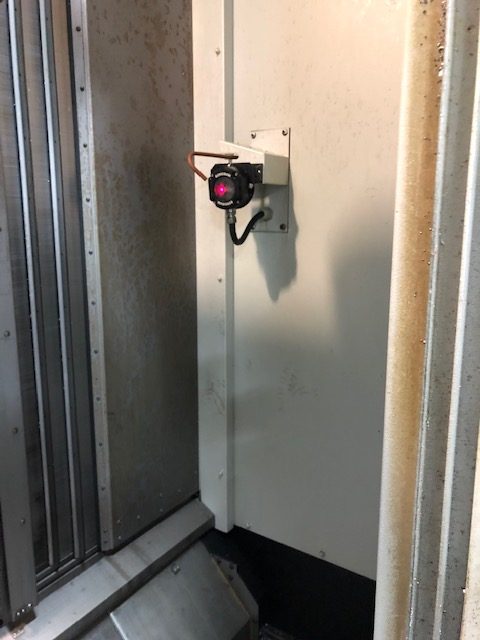

  • Renishaw Touch Probe Prep

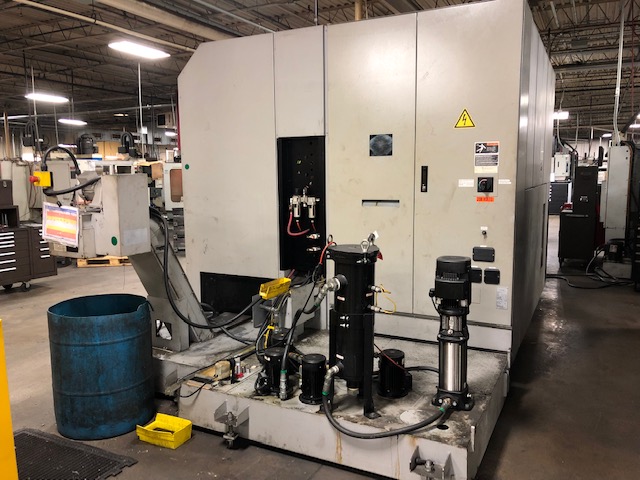

  • High Pressure Coolant
  • Chip Conveyor (Side Exit)
  • Manufacture Date August 2008
  • 53,091 Power On Time
  • 19,785 Operation Time (Head 1) 17,201 (Head 2)
  • 14,042 Cutting Time (Head 1) 200 (Head 2)
