< Back to Lathes
Special Item

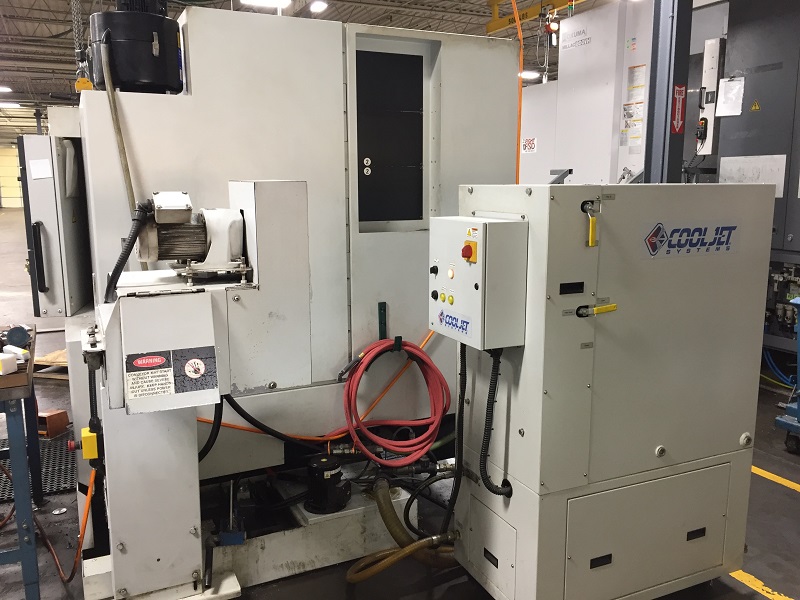

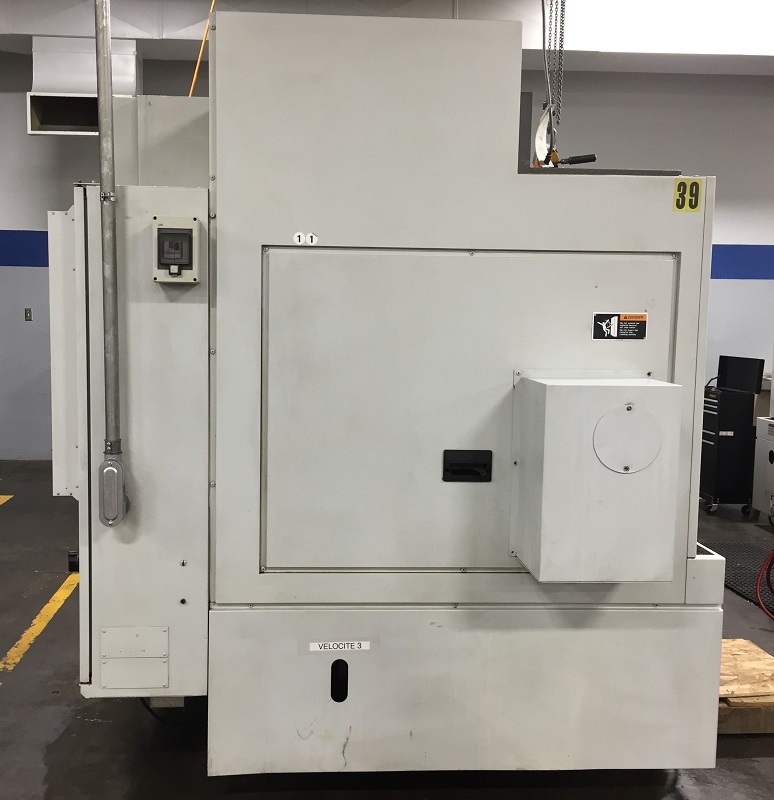

2008 MORI SEIKI NL-3000Y/700

Mit, 3.5" Bar, 12" Chuck, 16.5" Max Dia, 28" Length, 30 HP, 12 Tools, C & Y-Axis Milling, Tailstock, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Diameter Bar Capacity 3.5"
  • Max Swing Over Bed / Cover 39.2" / 26.4"
  • Turning Diameter (Max / Std) 16.5" / 12.2"
  • Max Machining Length 28"
  • Spindle Motor 30 / 24.7 HP
  • Spindle Speed 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 4.1"
  • Tools 12 (All Live)
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 11"
  • Z-Axis Travel 32.3"
  • Y-Axis Travel +/- 2.4"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step) 0.3 Seconds
  • Machine Dimensions (L x W x H) 134.3" x 82.2" x 89.4"
  • Machine Weight 14,000 lbs.
  • Spindle Torque 756 ft. lbs.
  • Tailstock Taper MT#5

Product Features

  • MORIC MSX-850III CNC Control
  • 10.4" Color LCD
  • C & Y-Axis Live Tooling Capability
  • Servo Driven Tailstock
  • Built-in Integral Milling Spindle
  • PC/MCIA Interface
  • 12" Kitagawa B212 Hydraulic Chuck
  • Automatic Tool Presetter
  • Chip Conveyor (Side Exit)
  • High Pressure Coolant Interface Only (Cooljet NOT Included)
  • Royal Mist Collector NOT Included
  • (2) OD Live Holders
  • (2) Face Live Holders
  • (10) Boring Bar Holders
  • (8) Turning Holders
  • Manufacture Date February 2008
  • 9999 Power On Time
  • 4832 Operation Time
  • 6415 Cutting Time
