< Back to Lathes
Special Item

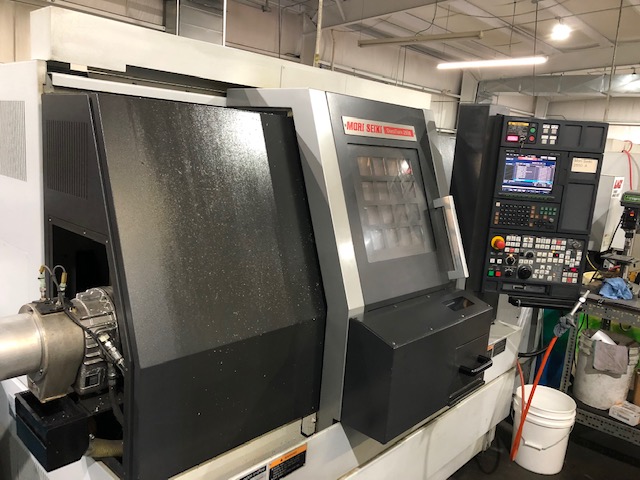

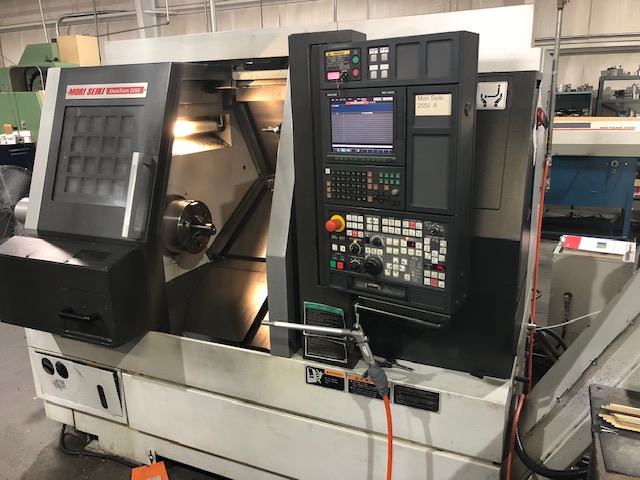

2008 MORI SEIKI DURATURN 2550MC

Fanuc, 3" Bar, 10" Chuck, 20" Length, 3000 RPM, Live Tooling, 35HP, 12 Tools, Tail, Chip, Tool Presetter, APC
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 3.1"
  • Max Swing Over Bed 24"
  • Max Machining Length 20.1"
  • Spindle Motor 35 HP
  • Spindle Speed 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.6"
  • Tools 12
  • Rapid Traverse Rates (X & Z) 945 IPM
  • X-Axis Travel 8.5"
  • Z-Axis Travel 22.4"
  • C-Axis Index .001 Degrees
  • Machine Dimensions (L x W x H) 86.6" x 72.3" x 69"
  • Machine Weight 8800 lbs.
  • Max Turning Diameter 14.5"
  • Tailstock Taper MT#4

Product Features

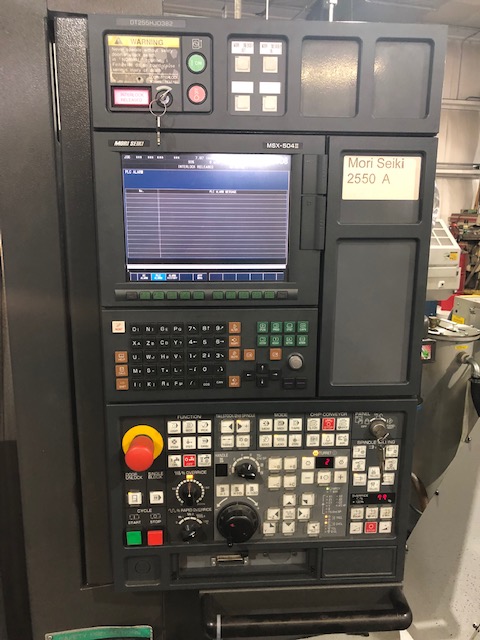

  • MORIC MSC-504IV (FANUC) CNC CONTROL
  • 10.4" Color TFT
  • MAPPS IV Conversational Programming
  • PC/MCIA Interface
  • USB Port
  • C-Axis Milling
  • 10" Kitagawa BB210 Hydraulic Chuck
  • Digital Tailstock
  • LNS Turbo Chip Conveyor (Side Exit)

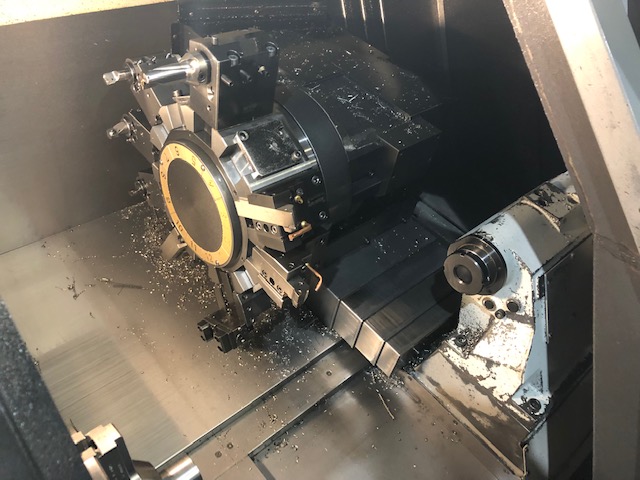

  • Servo Driven Turret
  • Tool Presetter (Removable)
  • ChipBlaster High Pressure Coolant
  • Automatic Parts Catcher
  • OD Live Holder
  • Face Live Holder

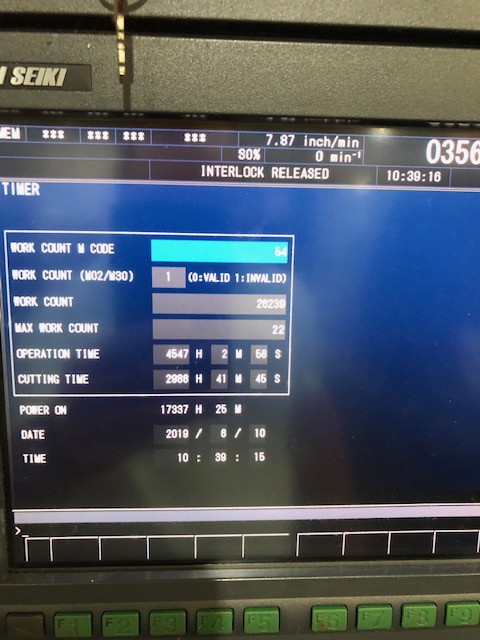

  • 17,337 Hours Power On Time
  • 4,547 Hours Operation Time
  • 2,988 Hours Cutting Time
  • Manufactured November 2008
